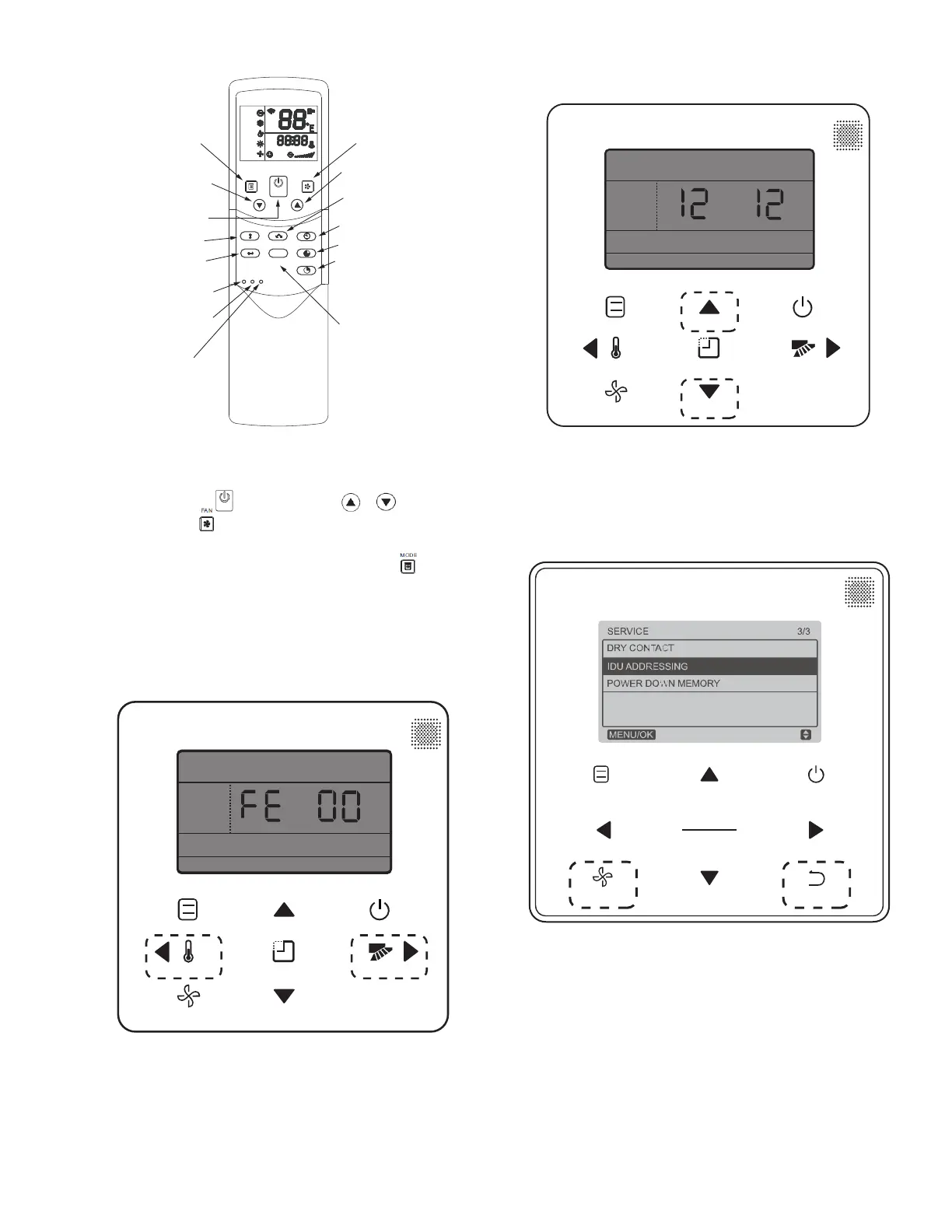

Fig. 24 —Wireless Remote Controller
(40VM900001)
Use a tool to press and hold the LOCK button for at least 10
seconds, then press to activate. Click or to select an
address and press to send the setting.
To display an indoor unit address, use a tool to press and hold
the LOCK button for at least 10 seconds, and press to query
the addresses.
Non-Programmable Controller — When setting an
address, connect only one wired controller to an indoor unit.
Press ROOM TEMP and SWING simultaneously for three
seconds. If there is no address for this indoor unit, the display
shows FE# 00 as shown in Fig. 25. Otherwise, the display
shows the current address of the indoor unit.
Fig. 25 —Non-Programmable Controller IDU
Addressing Menu
Click TEMP. UP or TEMP. DOWN to change 00 to the de-
sired address as shown in Fig. 26. Press OK to confirm and
exit the setting interface.
Fig. 26 —Non-Programmable Controller Setting
IDU Address
Programmable Controller — When setting an
address, connect only one wired controller to an indoor unit.
1. Press FAN and BACK simultaneously for five seconds to
access parameter settings as shown in Fig. 27.
Fig. 27 —Programmable Controller IDU
Addressing Menu
2. Press TEMP. UP or TEMP. DOWN to move the cursor
and choose IDU ADDRESSING. Press MENU/OK to
access this setting.
RESET
TIMER ON
TIMER OFF
SWING
AIR DIRECTION
CLOCK
OK
SWING
MODE
FAN
AUTO
COOL
DRY
HEAT
FAN
TEMP
SET
CLOCK
SET
HOUR
FAN SPEED
LOCK C/H
6 – AIR DIRECTION
2 – FAN SPEED SETTING
4 – ADJUST UP
9 – CLOCK SETTING
14 – OK (CONFIRM)
10 – TIMER ON
11 – TIMER OFF
1 – MODE SETTING
3 – ADJUST DOWN
12 – RESET
13 – LOCK
15 – COOL/HEAT
5 – ON/OFF
7 – AIR VERT. SWING
8 – AIR HORIZ. SWING
A40-1734
MODE
FAN TEMP. DOWN
OK
TEMP. UP ON/OFF
TIMER
ROOM TEMP.
SWING
#
#
MODE
FAN TEMP. DOWN
OK
ON/OFFTEMP. UP
TIMER
ROOM TEMP.
SWING
MODE
FAN
MENU
TEMP. DOWN
TEMP. UP
OK
BACK
ON/OFF
