29
Rc
Rh
W1
G
Y2
C
O/W2/B
Y1
OAT
RR
S
S
RTN
HUM
D1
D2
V+
Vg
X
*
C
G
W2
W1
Y2
Y1
R
Edge Programable Thermostat
Unit CTB
THERMOSTAT
*Connection not required.
Humidi-MiZer™ FIOP
C13066

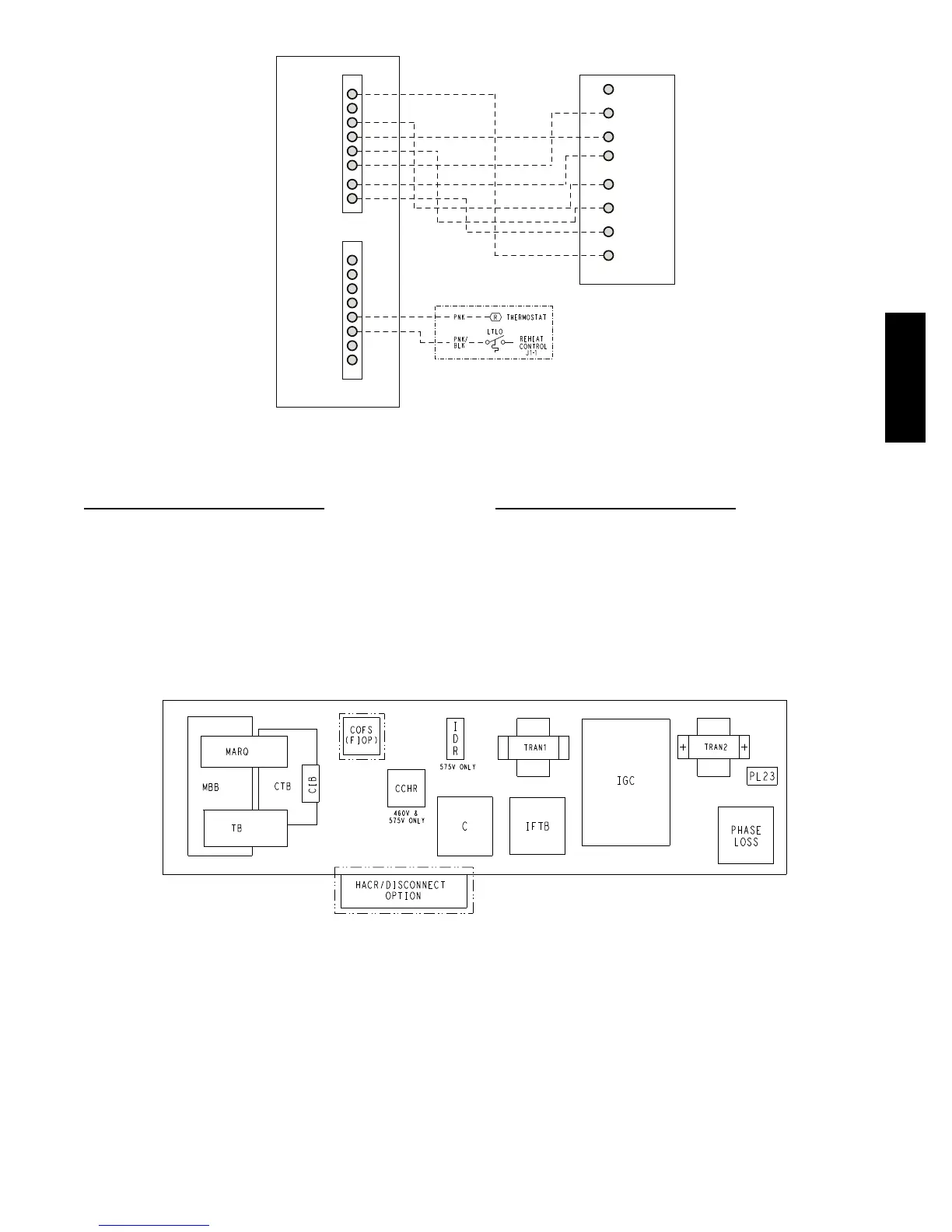

Fig. 46 -- Typical Rooftop Unit with Humidi--MiZer Adaptive Dehumidification System
with EDGE Pro Thermidistat Device
EconoMi$er X (Factory--Option)
For details on operating 48LC units equipped with the
factory--installed EconoMi$er X option, refer to
EconoMi$er X Factory--Installed Option Low Leak
Economizer for 2 Speed SAV
t
(Staged Air Volume)
Systems (Catalog No. LLECON--02SI, or later).
ComfortLINK (Factory--Option)
For details on operating 48LC units equipped with the
factory installed ComfortLINK option, refer to Controls,
Start--Up, Operation and Troubleshooting for 48/50LC
04--06 Single Package Rooftop Unit with ComfortLINK
Controls (Catalog No. 48--50LC--C01T, or later).
NOTE: ComfortLINK is not available on units equipped
with Humidi--MiZer .
C12150
Fig. 47 -- 48LC Control Box Component Locations with ComfortLINK
48HC48LC
