Carrier Yileng - Shanghai, China
7.2 - Victaulic water connections

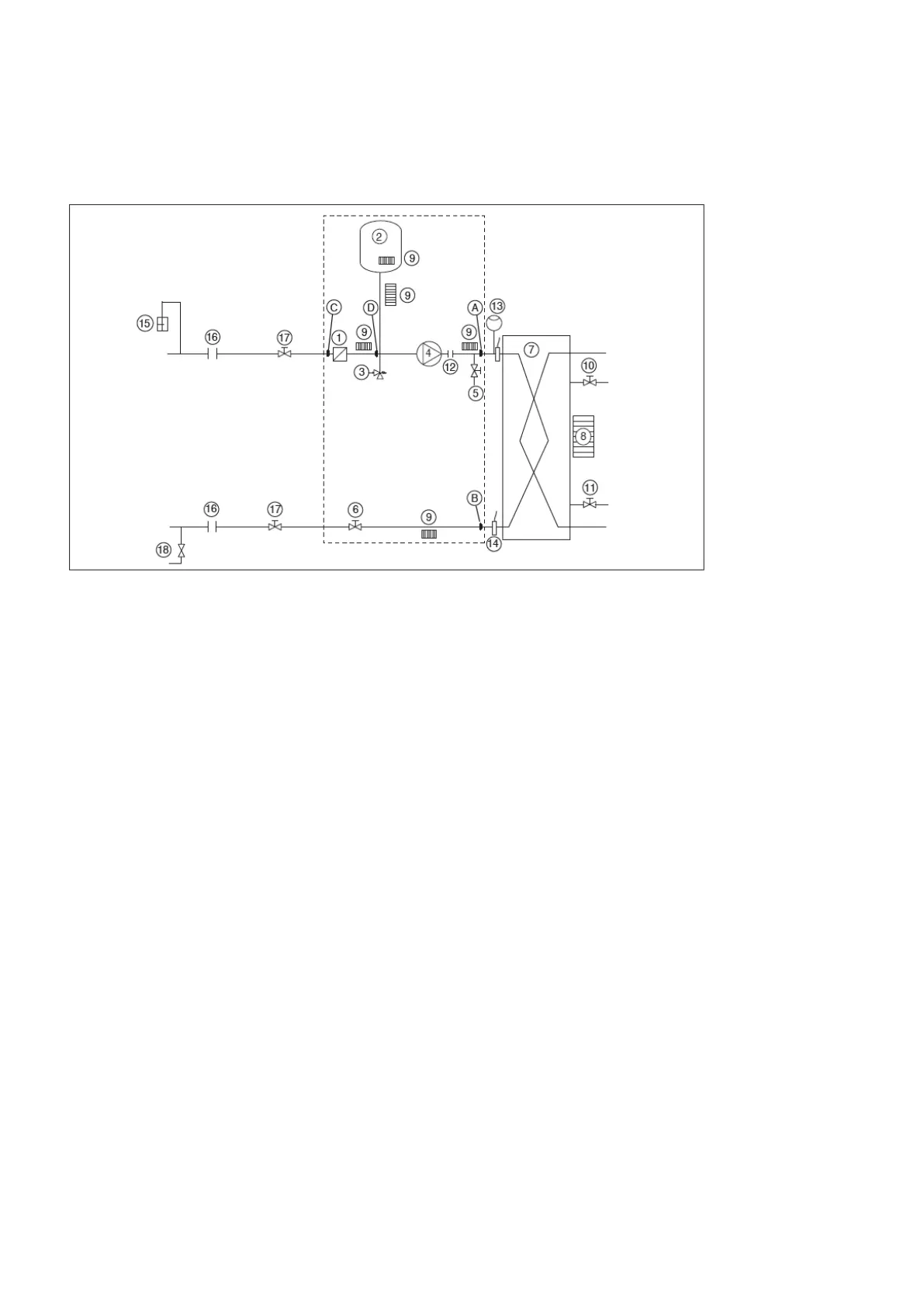

Typical water circuit diagram
Legend
Components of the unit
A Pressure sensor (A-B = ΔP evaporator)
B Pressure sensor
C Pressure sensor (C-D = ΔP water filter)
D Pressure sensor
1 Victaulic screen filter
2 Expansion tank
3 Safety valve
4 Available pressure pump
5 Drain valve
6 Flow control valve
7 Evaporator
8 Evaporator defrost heater (option)
9 Hydraulic module defrost heater (option)
10 Air vent (evaporator)
11 Water drain (evaporator)
12 Expansion compensator (flexible connections)
13 Flow switch
14 Water temperature sensor
15 Air vent
16 Flexible connection
17 Shut-off valve
18 Charge valve
