REPAIR PARTS

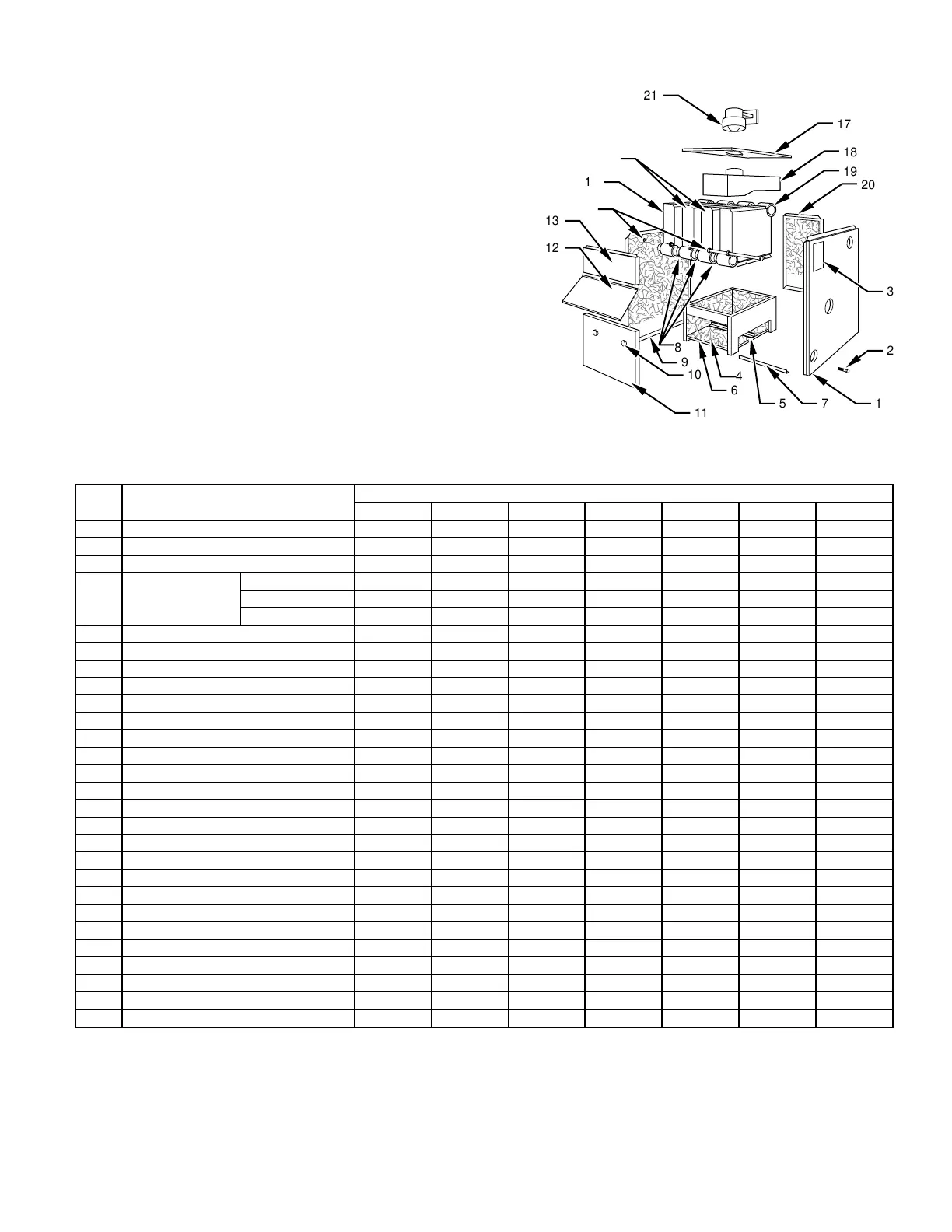

Jacket—Section and Base Parts
This is a Repair Parts List—Not a Packing List
KEY
NO.
DESCRIPTION
PART NO.
3 Section 4 Section 5 Section 6 Section 7 Section 8 Section 9 Section
1 Jacket, Right Side Panel 425-00-802 425-00-802 425-00-802 425-00-802 425-00-802 425-00-802 425-00-802
2 No. 10 X 1/2-in. Sheet Metal Screw 146-95-074 146-95-074 146-95-074 146-95-074 146-95-074 146-95-074 146-95-074
3 Rating Plate 146-94-001 146-94-016 146-94-016 146-94-016 146-94-016 146-94-016 146-94-016
4 Base Insulation
Base Sides (2) 146-14-130 146-14-130 146-14-130 146-14-130 146-14-130 146-14-130 146-14-130
Base Front 146-14-113 146-14-114 146-14-115 146-14-116 146-14-117 146-14-118 146-14-119
Base Rear 146-14-123 146-14-124 146-14-125 146-14-126 146-14-127 146-14-128 146-14-129
5 Base Baffle 425-00-643 425-00-644 425-00-645 425-00-646 425-00-647 425-00-648 425-00-649
6 Base 425-00-663 425-00-664 425-00-665 425-00-666 425-00-667 425-00-668 425-00-669
7 Jacket Tie Bar 425-00-653 425-00-654 425-00-655 425-00-656 425-00-657 425-00-658 425-00-659
8 Push Nipple 433-00-976 433-00-976 433-00-976 433-00-976 433-00-976 433-00-976 433-00-976
9 Jacket, Left Side Panel 425-00-801 425-00-801 425-00-801 425-00-801 425-00-801 425-00-801 425-00-801
10 Knob, Service Door (Pair) 137-02-153 137-02-153 137-02-153 137-02-153 137-02-153 137-02-153 137-02-153
11 Jacket, Service Door 425-00-823 425-00-824 425-00-825 425-00-826 425-00-827 425-00-828 425-00-829
12 Jacket, Intermediate Panel 425-00-813 425-00-814 425-00-815 425-00-816 425-00-817 425-00-818 425-00-819
13 Jacket, Front Panel 425-00-803 425-00-804 425-00-805 425-00-806 425-00-807 425-00-808 425-00-809
14 1/4-in. Tie Rod, Nut 146-05-001 146-05-002 146-05-051 146-05-053 146-05-005 146-05-007 146-05-009
15 Boiler Section, Left 410-00-013 410-00-013 410-00-013 410-00-013 410-00-013 410-00-013 410-00-013
16 Boiler Section, Middle 410-00-015 410-01-015 410-01-015 410-01-015 410-01-015 410-01-015 410-01-015
17 Jacket, Top Panel 425-00-843 425-00-844 425-00-845 425-00-846 425-00-847 425-00-848 425-00-849
18 Draft Diverter 425-00-673 425-00-674 425-00-675 425-00-676 425-00-677 425-00-678 425-00-679
19 Boiler Section, Right 410-00-014 410-01-014 410-01-014 410-01-014 410-01-014 410-01-014 410-01-014
20 Jacket, Back Panel 425-00-833 425-00-834 425-00-835 425-00-836 425-00-837 425-00-838 425-00-839
* Jacket Complete 425-70-873 425-70-874 425-70-875 425-70-876 425-70-877 425-70-878 425-70-879
* Block Assembly (8, 14, 15, 16, 19) 410-00-330 410-01-430 410-01-530 410-01-630 410-01-730 410-01-830 410-01-930
* Combustible Floor Plate 146-14-031 146-14-031 146-14-031 146-14-031 146-14-032 146-14-032 146-14-032
* Cerafelt Gasket 146-14-018 146-14-018 146-14-018 146-14-018 146-14-018 146-14-018 146-14-018
21 Vent Damper 118-20-05 118-20-06 118-20-06 118-20-07 118-20-07 118-20-07 118-20-07
* Base Assembly (4, 5, 6) 433-00-663 433-00-664 433-00-665 433-00-666 433-00-667 433-00-668 433-00-669
* Rollout Switch Bracket (Nat. Gas Only) 425-00-604 425-00-604 425-00-604 425-00-604 425-00-604 425-00-604 425-00-604
* Not illustrated.
A95161
;;
;;
yy
yy
;;
;;
yy
yy
;y
;y
;y
;y
;y
;y
18
19
20
3
2
175
11
10
6
4
8
9
17
21
13
12
15
16
14
GAS-FIRED STEAM BOILERS
—IMPORTANT— READ THESE INSTRUCTIONS BEFORE
ORDERING
All parts listed in the following Parts List may be ordered through
your nearest supplier.
When ordering parts, first obtain Model No. from data plate on boiler,
then determine Part No. (not the Key No.) and Description of each
part from the following illustrations and lists. Be sure to give all this
information:
Part No. — Part Description — Boiler Model No.
—27—
