28
24-V THERMOSTAT
TERMINALS
PL2 – HOT SURFACE
IGNITER & INDUCER
MOTOR CONNECTOR
115-VAC (L2) NEUTRAL
CONNECTIONS
115-VAC (L1) LINE
VOLTAGE CONNECTIONS
EAC-1 TERMINAL
(115 -VAC 1.0 AMP MAX.)
PL1 – LOW VOLTAGE MAIN
HARNESS CONNECTOR
PL3 – ECM BLOWER
HARNESS
CONNECTOR
T
RANSFORMER 24-VAC
CONNECTIONS
3-AMP FUSE
STATUS AND COMM
LED LIGHTS
SW1 SETUP
SWITCHES AND
BLOWER OFF-
DELAY
MODEL PLUG
CONNECTOR
AIR CONDITIONING
(A/C) AIRFLOW
SETUP SWITCHES
USER INTERFACE
OR ADVANCED
PRODUCT
MONITOR
CONNECTOR
CONTINUOUS FAN
(CF) AIRFLOW
SETUP SWITCHES
OAT
CONNECTOR
HUMIDIFIER
TERMINAL (24-VAC
0.5 AMP MAX.
ACRDJ – AIR
CONDITIONING
RELAY DISABLE
JUMPER
FLASH
UPGRADE
CONNECTOR
(FACTORY
ONLY)
SW4 SETUP
SWITCHES
BOARD SERIAL
NUMBER
EXAMPLE:
V12 HK42FZ022 3407
SOFTWARE
VERSION
NUMBER
DATE
CODE
PART
NUMBER
A07422

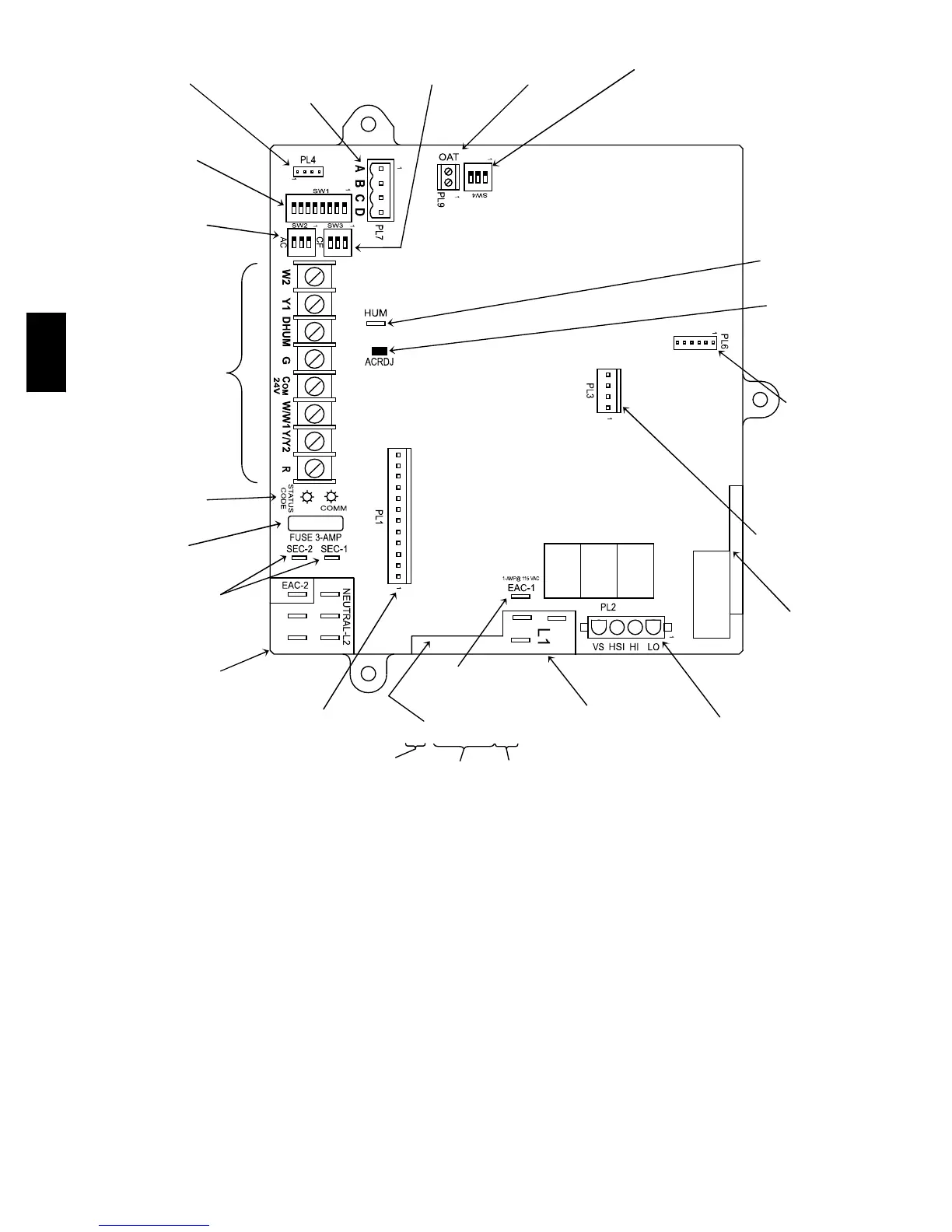

Fig. 33 -- Furnace Control
58MVC

Carrier INFINITY ICS 58MVC Specifications

Power

electrical supply voltage	115 volts
electrical supply frequency	60 Hz
electrical supply phase	single-phase

Operating Environment

fuel gas efficiency	92.1 to 95% AFUE
minimum air delivery	_ _ _ cfm
external static pressure	0.50 in. wc

Weight and Dimensions

casing thickness	0.030 in
depth	_ in.
width	_ in.
height	_ in.
