Carrier INFINITY ICS 58MVC User Manual

55

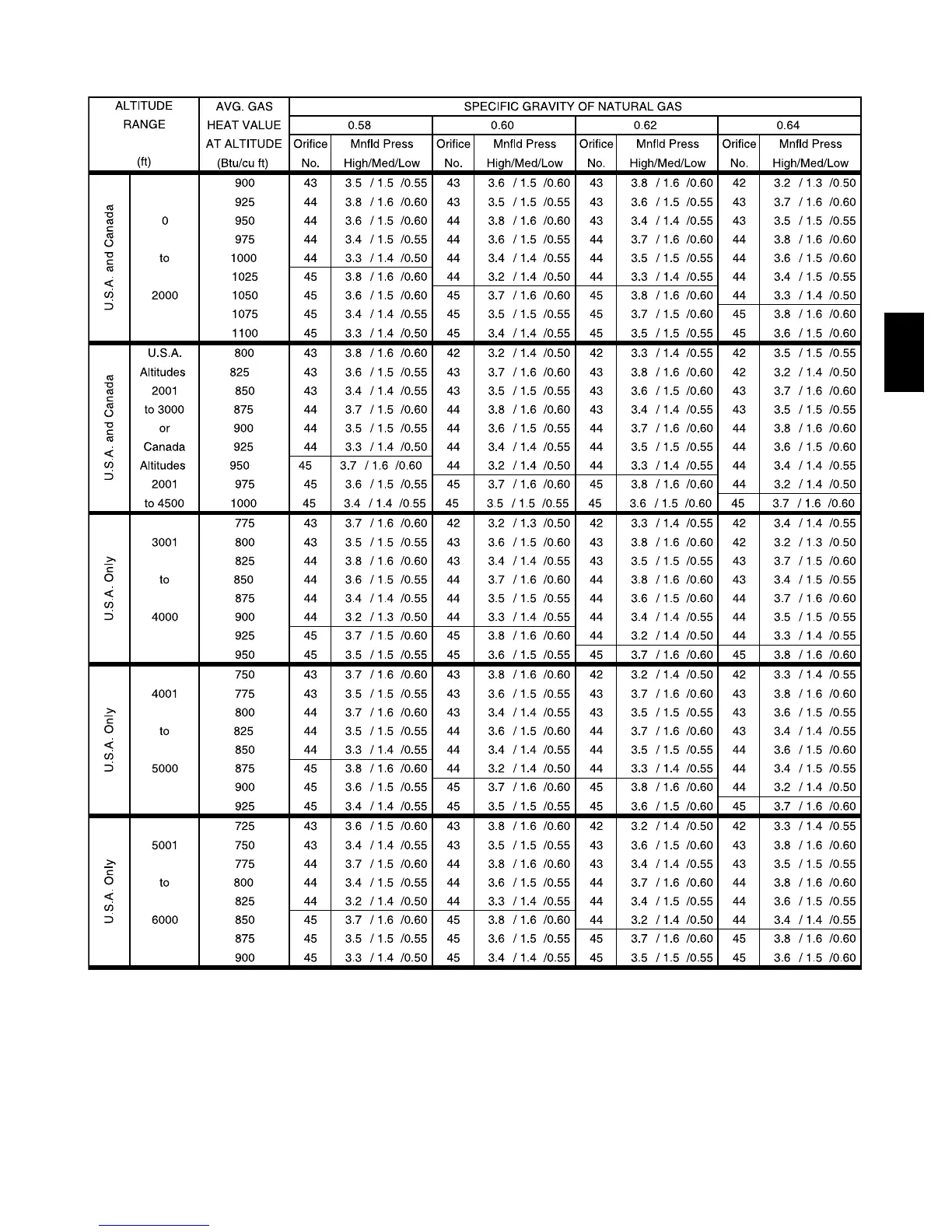

Table 10 – Orifice Size* and Manifold Pressures for Gas Input Rate
(Tabulated Data Based on 20,000 BTUH High Heat / 13,000 Btuh Med--Heat / 8,000 Btuh Low --Heat per Burner,
Derated 2% / 1000 Ft. Above Sea Level)
A07253
58MVC

Carrier INFINITY ICS 58MVC Specifications

Power

electrical supply voltage	115 volts
electrical supply frequency	60 Hz
electrical supply phase	single-phase

Operating Environment

fuel gas efficiency	92.1 to 95% AFUE
minimum air delivery	_ _ _ cfm
external static pressure	0.50 in. wc

Weight and Dimensions

casing thickness	0.030 in
depth	_ in.
width	_ in.
height	_ in.
