INSTALLATION
6
6095756-R2 EN
7

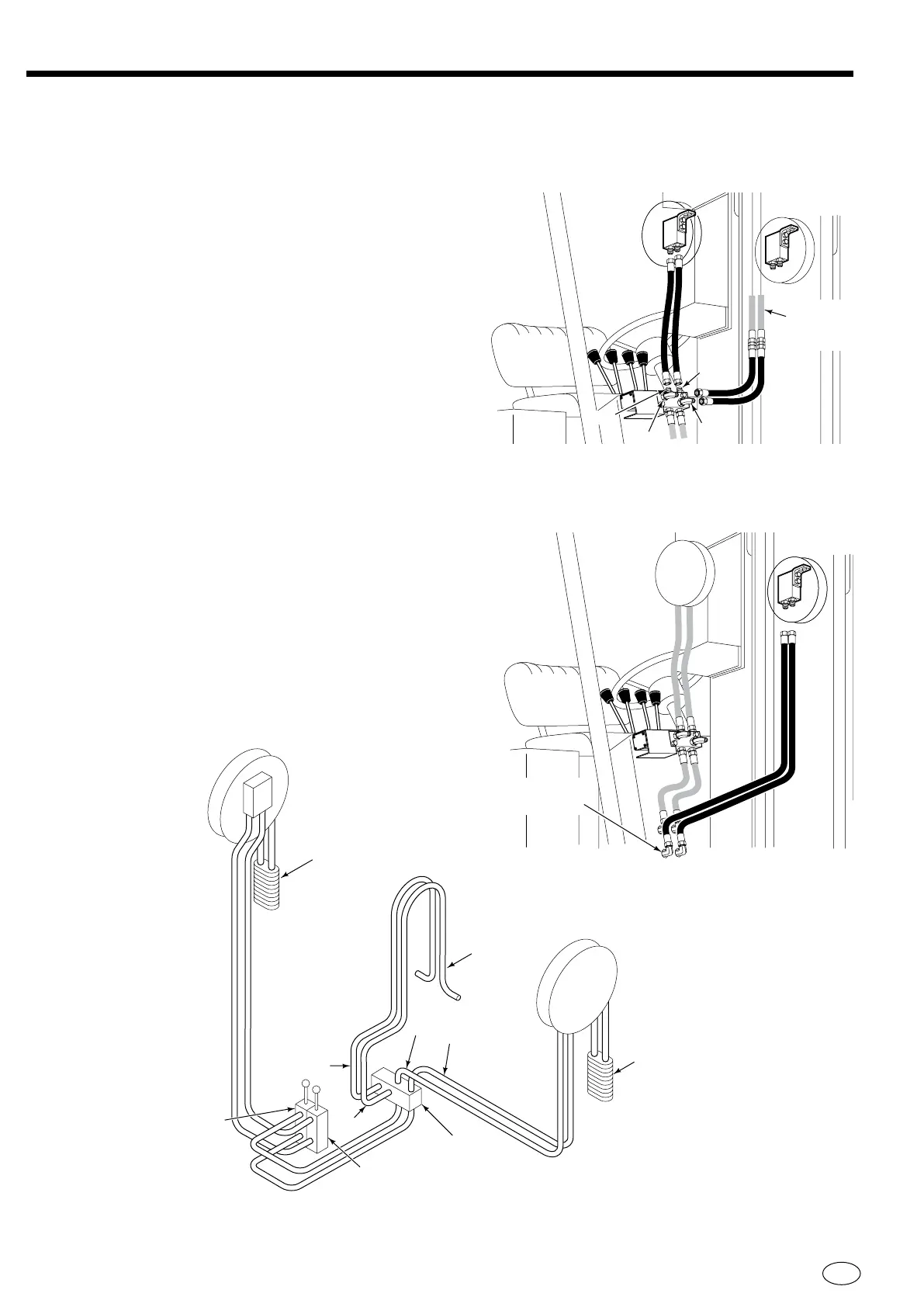

Rotate Function – Measure and assemble two
hoses (user-supplied) to run from the control valve
C1 and C4 ports to the RH hose reel. Install
hoses.
Swing Function – Measure and assemble two
hoses (user-supplied) to run from the control valve
C2 and C3 ports to the internal hose reeving
hoses. Install hoses.
Installation with RH and LH 2-Port Hose
Reels and Internal Hose Reeving
8
Clamp Function – Measure and assemble two
hoses (user-supplied) to run from the truck valve
ports to the LH 2-port hose reel. Install hoses.
C3
C4
C2
C1
RC0732.eps
RC0733.eps
RC0734.eps
C2
C1
C4
C3
P
T
RH 2-Port
Hose Reel
LH 2-Port
Hose Reel
SWING
Function
ROTATE
Function
CLAMP
Function
Internal
Reeving
Hoses
Truck Auxiliary
Valve Ports
LH 2-Port
Hose Reel
Carriage
Hose
Terminal
Carriage
Hose
Terminal
Carriage
Hose
Terminal
CLAMP/OPEN
Function
SWING
Function
RH 2-Port
Hose Reel
ROTATE
Function
Solenoid-
Operated
Control Valve
Truck Auxiliary
Valve (CLAMP)
Truck Auxiliary Valve
with Pushbutton
(ROTATE and SWING)
Swing Control Valve Installation
