- 6 -
Trouble shooting ECR V1.01

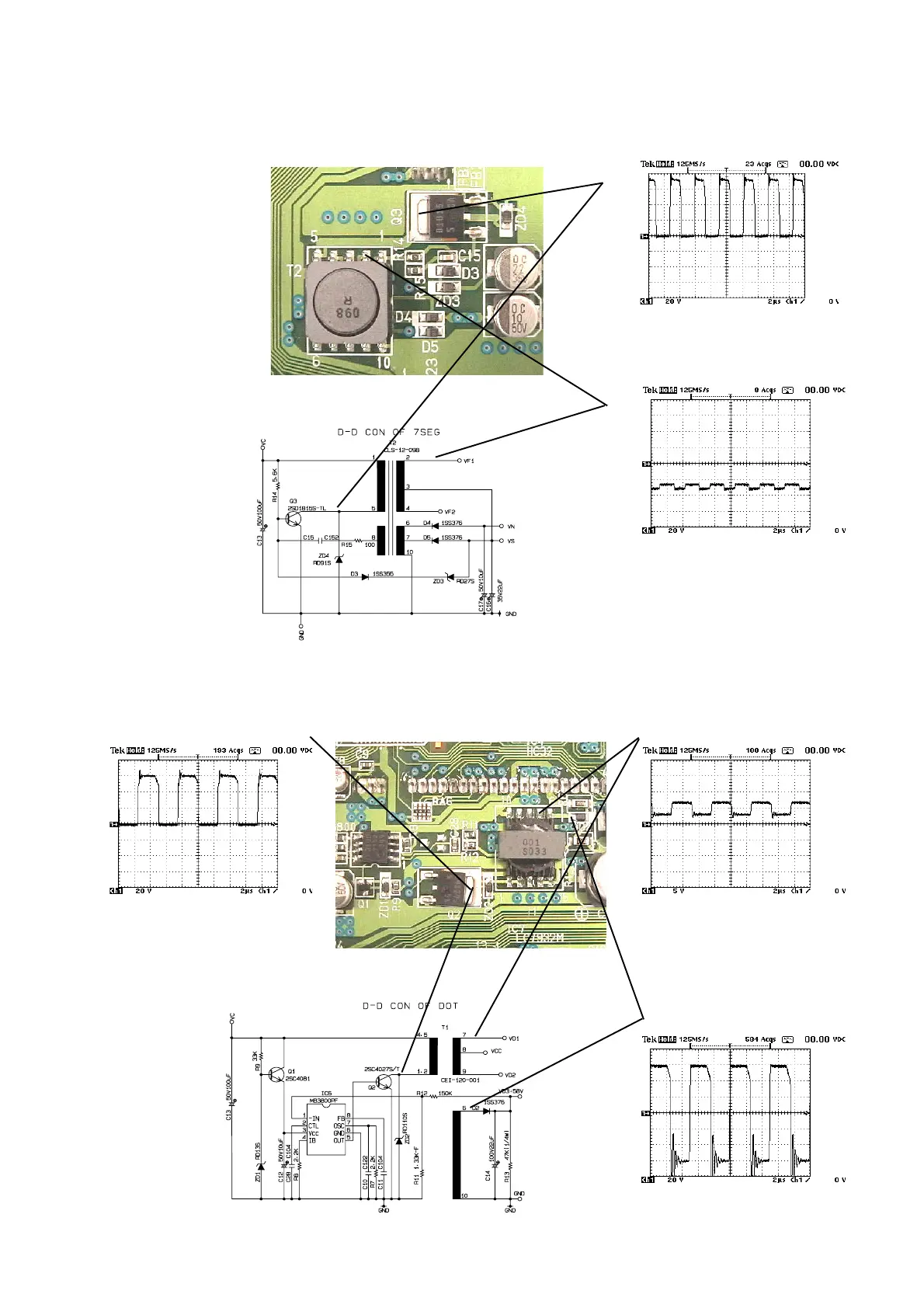

[DC/DC convertor circuit for Dot Display Tube at Display PCB E445B-E2]
D2
Q2 VD1
Signal at D2 position
Signal at VD1 position
Signal at Q2 position
3) Check the DC/DC convertor in display PCB.
[DC/DC convertor circuit for 7 segment Display Tube at Display PCB E445B-E2]
Q3
VF1
Signal at Q3 position
Signal at VF1 position
