- 9 -

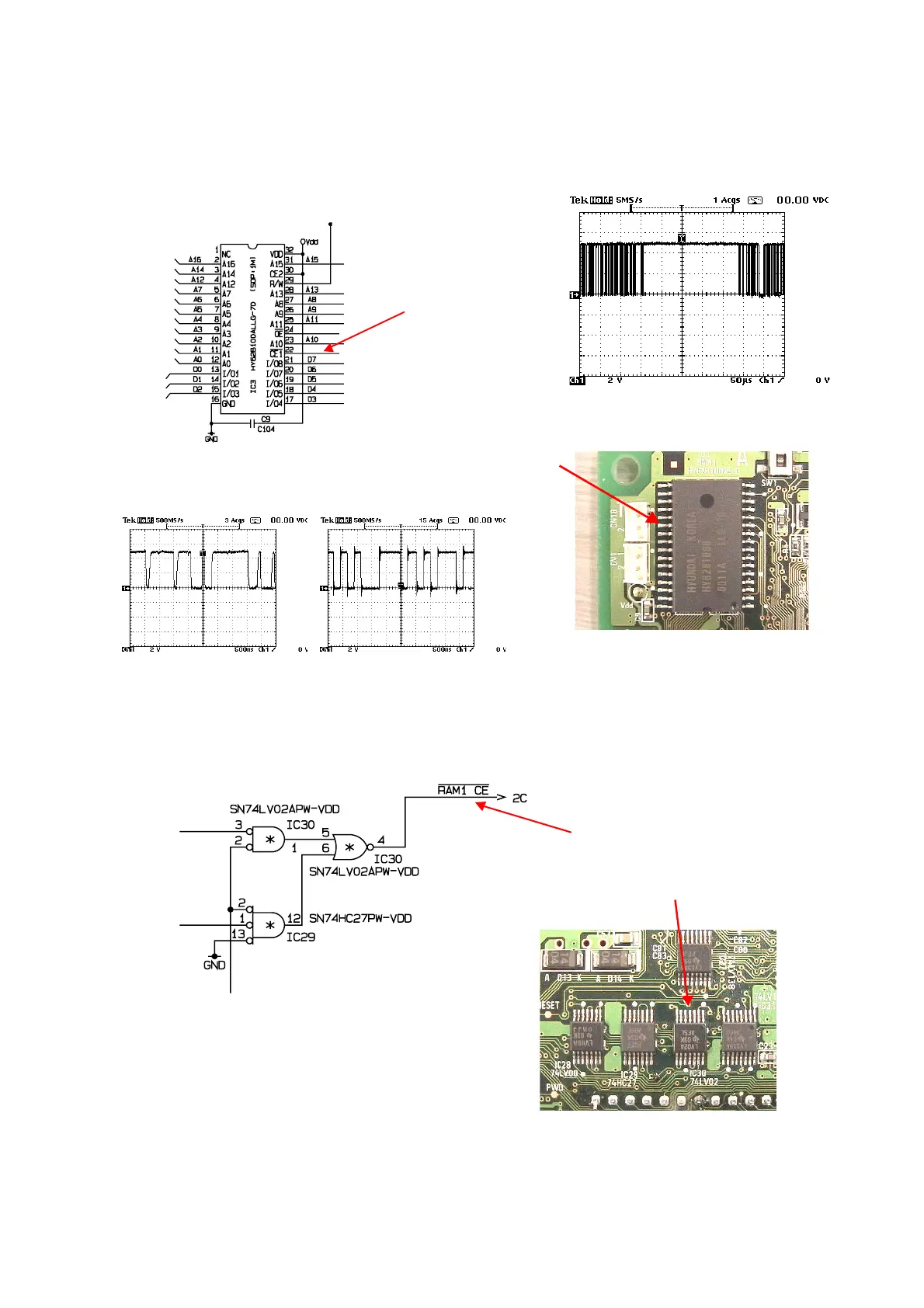

Trouble shooting ECR V1.01
RAM1 Data bus D0
RAM Chip enable signal
RAM1 chip enable
RAM1 chip enable
Pin No.22
RAM1 Address bus A0
RAM1 IC3
[ RAM1 chip enable signal ]
RAM1 chip enable
RAM1 chip enable
Pin No.4 IC30 (74LV02)
