QW-3410
– 14 –

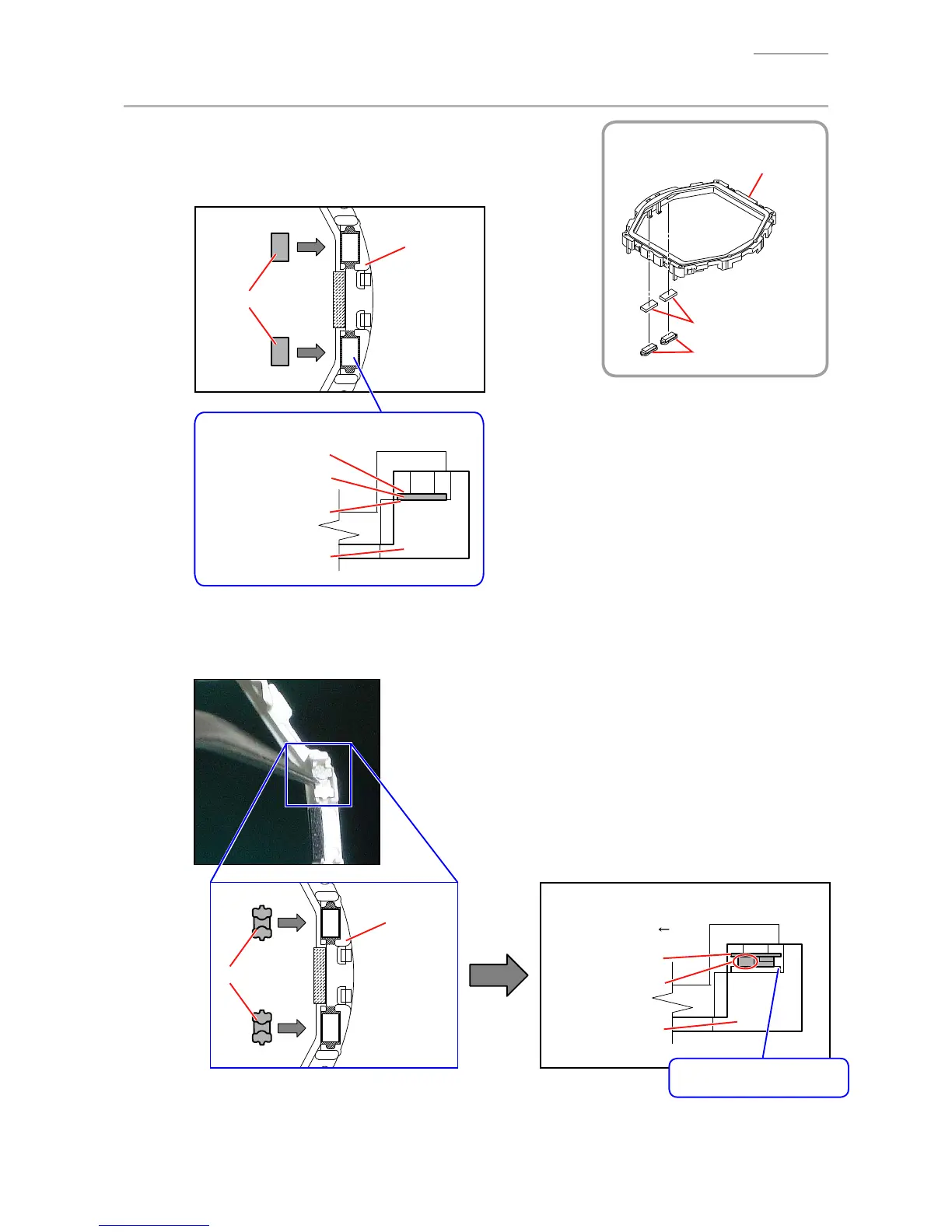

6-4. ATTACHING LED AND SPRING/COIL 5140-2
1) Remove the liner paper from the bottom surface (white part)
of the REFLECTOR 3414-2, and attach it to the HOUSING
3414-1 in the position shown in the illustration below. The
upper surface (the mirror surface) faces the Cover/Back.
9 H
HOUSING 3414-1
REFLECTOR 3414-2
Side view
HOUSING 3414-1
REFLECTOR 3414-2
Glass side
Cover/Back side
the mirror surface
white part
2) Attach LED to the HOUSING 3414-1.
Orientation of LED: the light-emitting surface (white part) faces inside, and the terminal surface
faces the Cover/Back.
9 H
HOUSING 3414-1
LED
Side view
HOUSING 3414-1
Light-emitting surface
Glass side
Cover/Back side
LED
Inside
Press the edge of the LED
against the end.
Configuration diagram
HOUSING 3414-1
REFLECTOR 3414-2
LED
