Casio V-R200 User Manual

V-R200 / VER.1
– 46 –

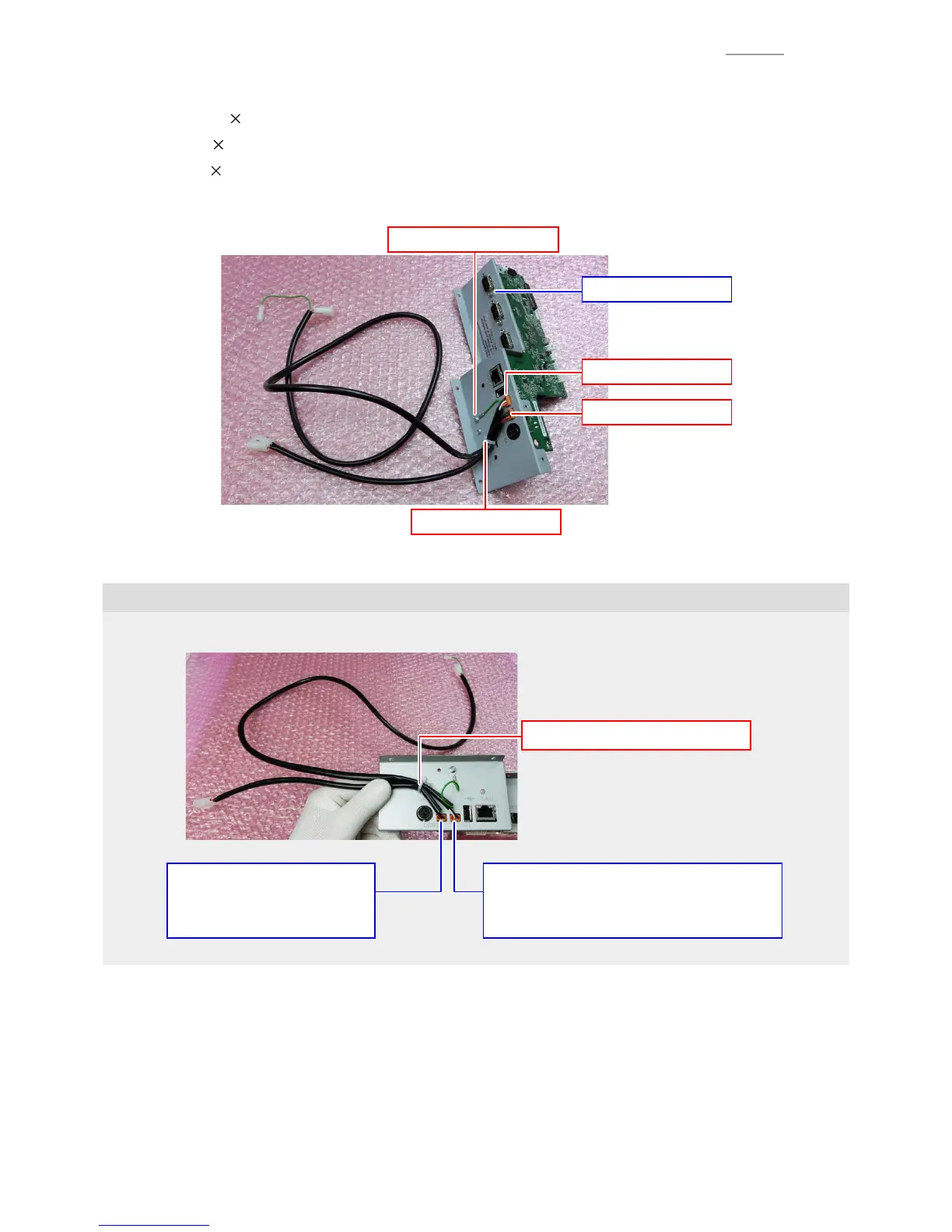

C-5. Remove the following parts.
(1) Cable tie 1
(2) Scrwe
1
(3) Cable
2
C-6. Replace the IOC ASSY with a new one.
IOC ASSY
(1) Cable tie
(3) CABLE/DRW1
(3) CABLE/DRW2
(2) Screw + Ground wire
Note on reassembling
0
Drawer cables
DRW1 Connector
• DRW1-CABLE-SUBASSY (Longer cable)
• Earth terminal fastening screw (S2)
• Tie the cables with a cable tie.
DRW2 Connector
• DRW2-CABLE-SUBASSY
(Shorter cable)
C-7. Assemble the parts in the reverse order of the disassembly procedure.
