Some video devices are equipped with a component video output terminal. You can use an
commercially available component video cable to connect the COMPUTER terminal of the projector to
the component video output terminal of a video device.
Important!
Always turn off the projector and the video device before connecting them.
 Component video output terminals come in 3-terminal sets: Y·Cb·Cr or Y·Pb·Pr. Be sure to match
the colors of the plugs on a component video cable with the colors of the terminals (Green: Y;
Blue: Cb/Pb; Red: Cr/Pr).
 Note that connection only to an analog component video output terminal is supported.
Connection to a digital output terminal is not supported.

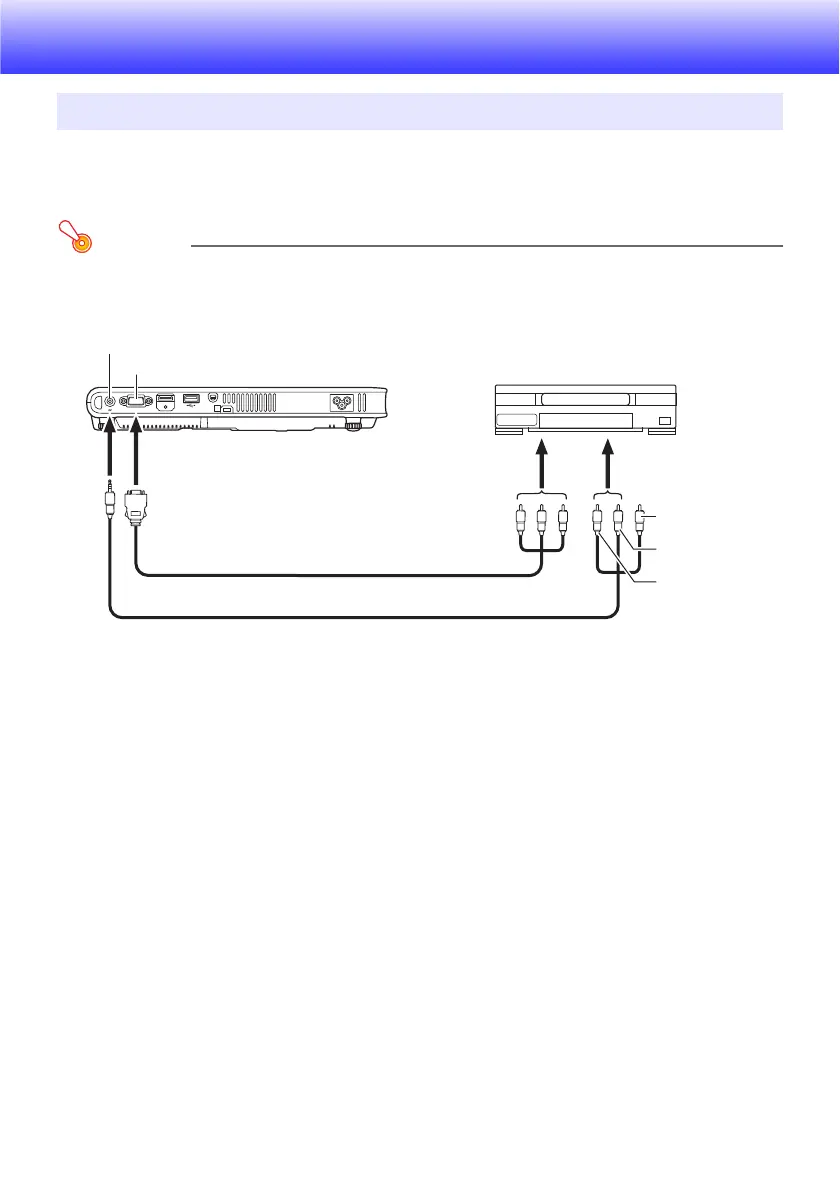

Connecting to a Component Video Output Device
Projector
COMPUTER terminal
AV terminal
Bundled special AV cable
Component video cable (commercially available)
To component video
output terminals
To AUDIO output
terminals
Video device
Yellow
(Not connected)
Red
White
