12
ASSEMBLY STEP 3

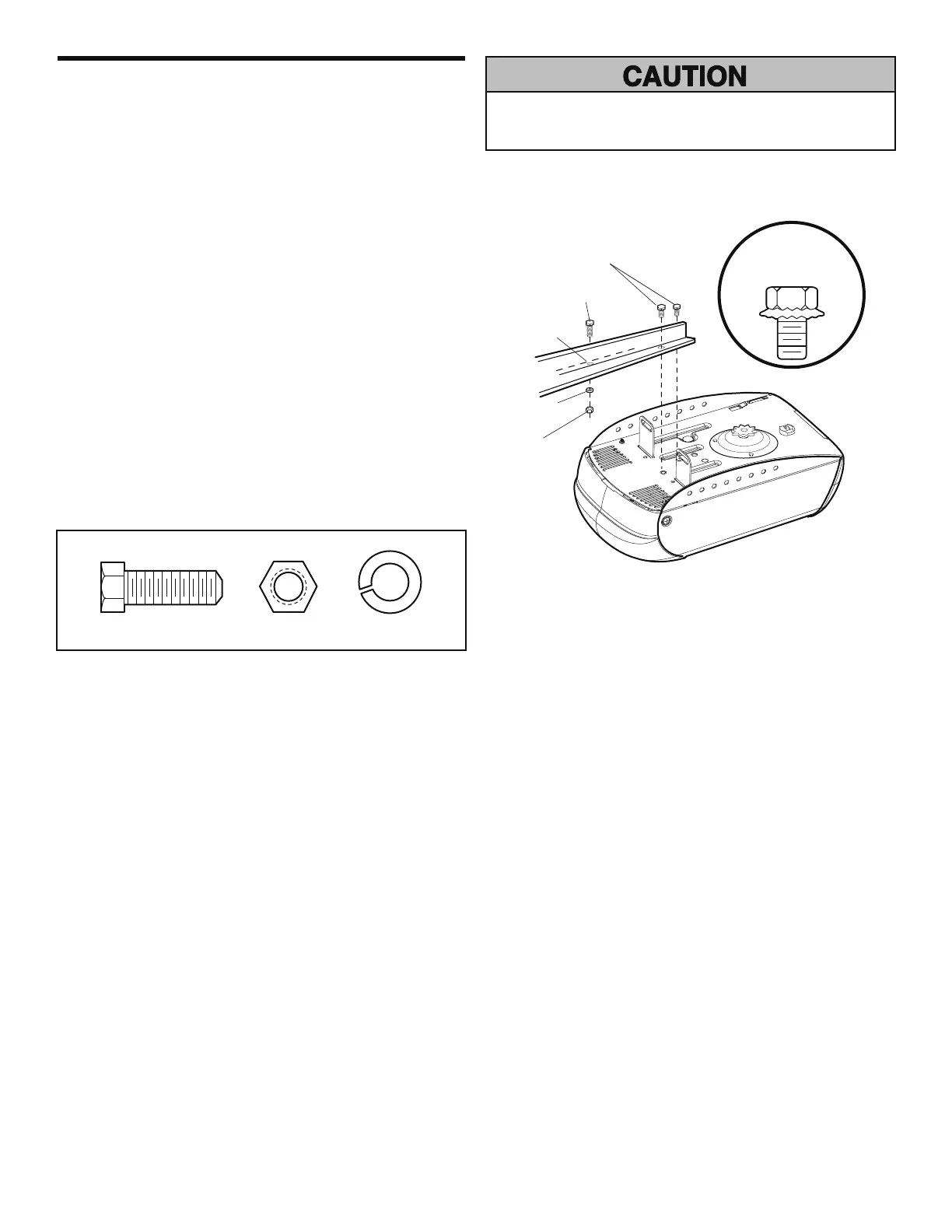

Fasten the Rail to the Motor Unit
• Place the opener on packing material to protect the
cover. For convenience, put a support under the cable
pulley bracket.
• Remove the two 5/16"-18x1/2" washered bolts mounted
in the top of the motor unit.
• Align the holes in the back section of the rail with the
holes in the motor unit.
• Fasten the rail with the two washered bolts previously
removed. Tighten securely. Remember to use only
these bolts! Any other bolts will cause serious
damage to the opener.
• Insert a 5/16"-18x7/8" hex bolt into the cover protection
bolt hole in the rail as shown. Tighten securely with a
5/16" lock washer and nut.
NOTE:
This bolt prevents trolley over-travel. Keep a
25 mm minimum between the trolley and this bolt when
adjusting travel limits (see page 29).
Washered Bolt
5/16"-18x1/2"
Rail
(Back
Section)
Cover
Protection
Bolt Hole
Nut
5/16"-18
Hex Bolt
5/16"-18x7/8"
Lock Washer
5/16"
USE ONLY THIS
TYPE AND SIZE
BOLT
Nut
5/16"-18
Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
To avoid SERIOUS damage to garage door opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
