Hardware Inventory

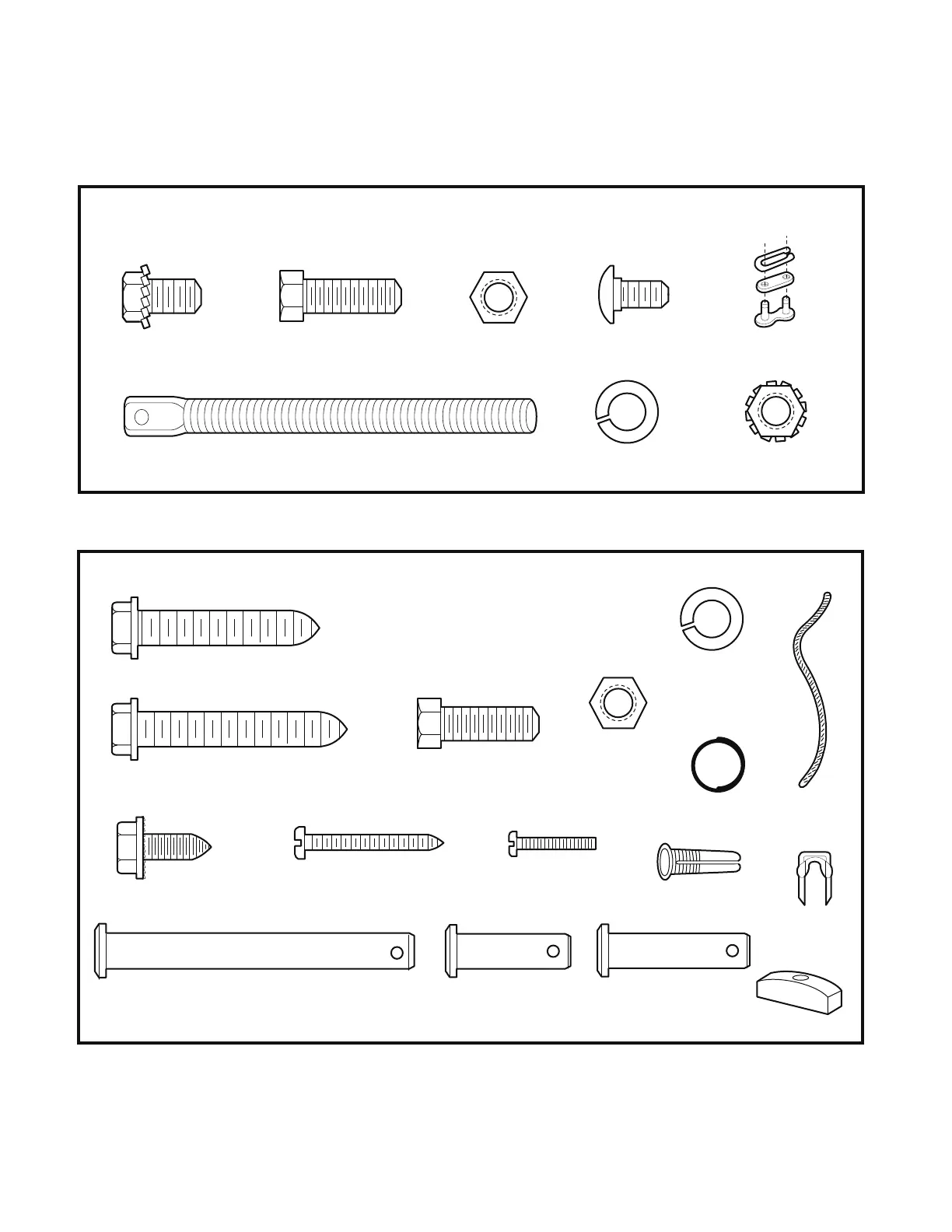

Separate all hardware and group as shown below for the assembly and installation procedures.
Hex Bolt
5/16"-18x7/8" (4)
Screw
6ABx1-1/4" (2)
Lock Washer
5/16" (4)
Nut
5/16"-18 (4)
Clevis Pin
5/16"x2-3/4" (1)
NOTICE
Handle
Insulated
Staples (10)
Assembly Hardware
Installation Hardware
Drywall Anchors (2)
Clevis Pin
5/16"x1" (1)
Rope
Lock Nut
1/4"-20x7/16" (4)
Nut
5/16"-18 (5)
Washered Screw
5/16"-18x1/2" (2)
(mounted in opener)
Carriage Bolt
1/4"-20x1/2" (4)
Hex Bolt
5/16"-18x7/8" (3)
Master Link (2)
Ring Fastener (3)
Trolley
Threaded Shaft (1)
Lock Washer
5/16" (4)
Clevis Pin
5/16"x1-1/4" (1)
Lag Screw
5/16"-9x1-5/8" (2)
Lag Screw
5/16"-9x1-7/8" (2)
Self-Threading Screw
1/4"-14x5/8" (2)
Screw
6-32x1" (2)
41A3475-30
