Chamberlain 1425E - Motor Unit Assembly Parts

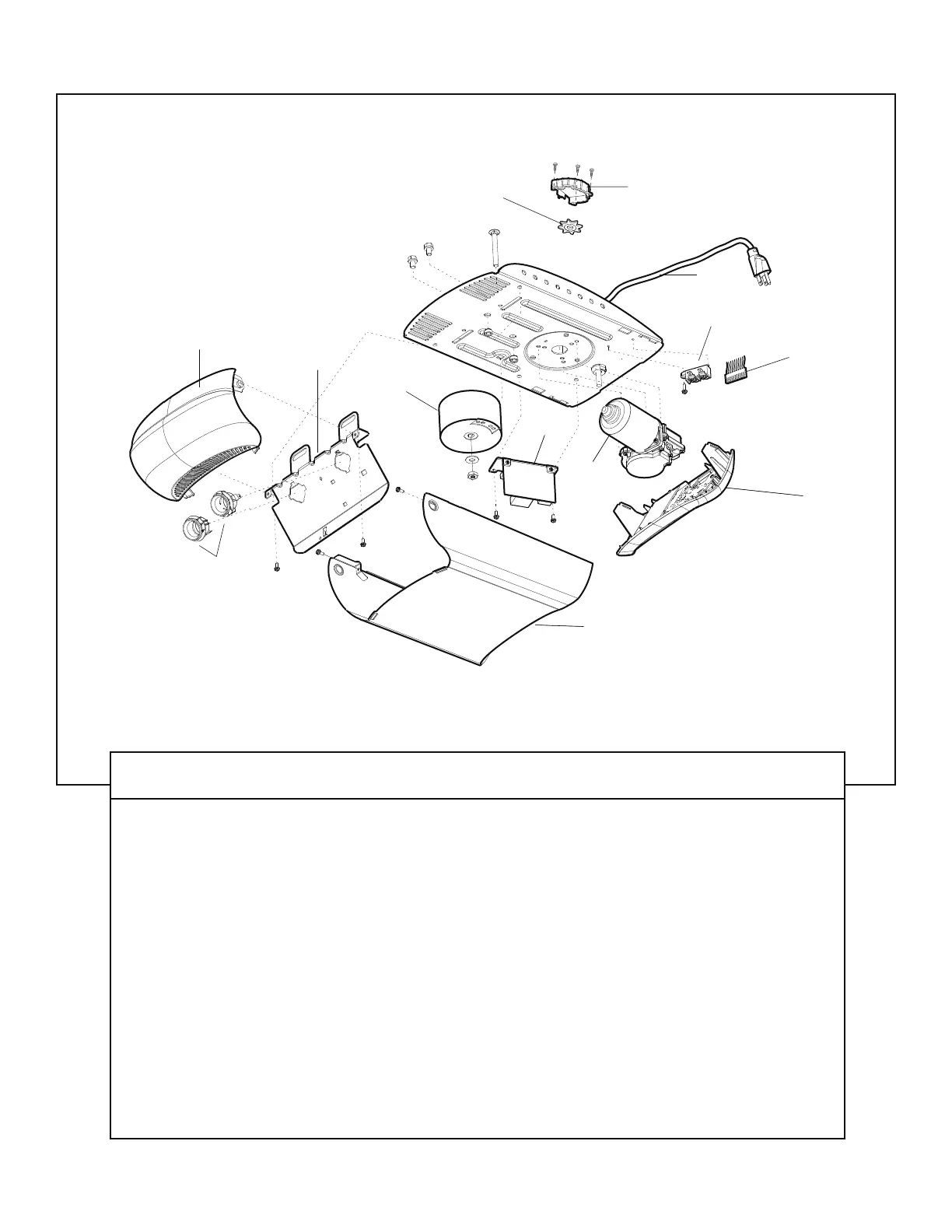

Motor Unit Assembly Parts
38
2
3
4
5
6
7
8
9
10
11
12
13
1
KEY PART
NO. NO. DESCRIPTION
1 41A4371-2 Sprocket cover
2 41B4245-1 Line cord
3 41B4375-3 Terminal block w/screws
4 41B5348 Sprocket
5 41C5317-1 Wire harness - Logic
(End Panel)
41C5839 Wire harness - High voltage
(Term blk)
41B5806-1 Wire harness - Motor adapter
41C5418 Wire harness - Light socket
6 41D605-1 Motor 80kg/100kg
7 41A5507-12C Receiver logic board assembly
with end panel
41D182-1 End panel only
8 41A5351-7 Power supply
KEY PART
NO. NO. DESCRIPTION
9 41C168 Transformer
10 41D630-2 Bracket: light socket, limit switch
11 41A5490-11 Cover
12 175C147 Light socket
13 108D78 Light lens
NOT SHOWN
41A5536-3 Multi-function remote control,
housing only (No circuit board)
10A20 3V2032 Lithium battery
29B137 Transmitter visor clip
41A2828 Manual release rope & handle
assembly
114A3753 Owner’s Manual
