Figure 4 REMOVE COVER

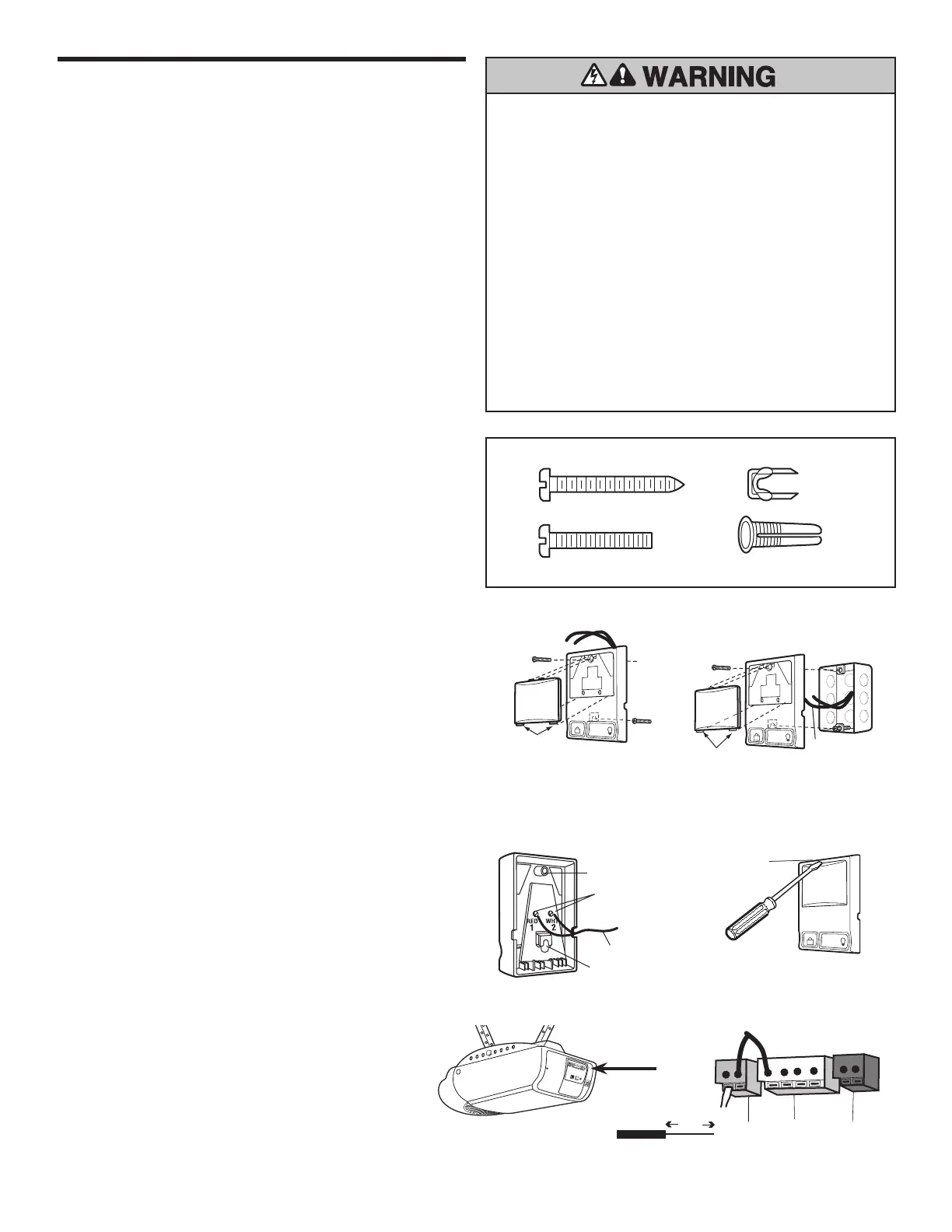

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of the door at a minimum
height of 1.5 m where small children cannot reach, and
away from moving parts of the door and door hardware.
The installation surface must be smooth and flat. If
installing into drywall (Figure1), drill 4 mm holes and use
anchors provided. For pre-wired installations (as in new
home construction), it may be mounted to a single gang
box (Figure 2).
NOTE:
After installation, a green indicator light behind the
cover will indicate proper connection. If not lit, the Lock
and Light features will not function (reverse wires to
correct).
1. Strip 11 mm of insulation from one end of bell wire and
connect to the two screw terminals on back of door
control by color: white wire to 2 and white/red wire to the
1 (Figure 3).
2. Remove white cover by gently prying at slot in top of the
cover with a small flat head screwdriver (Figure 4).
Fasten with 6ABx1-1/4" self-tapping screws (drywall
installation) or 6-32x1" machine screws (into gang box)
as follows:
• Drill and install bottom screw, allowing 3 mm to
protrude above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw for snug fit.
• Install top screw with care to avoid cracking plastic
housing. Do not overtighten.
• Insert bottom tabs and snap on cover. (To remove
cover after mounting, gently pry at top with paper clip
or small flat head screwdriver.)
NOTE:
The push bar may stick if the door control is not
mounted on a smooth surface. If a click is not heard when
pressing the push bar, loosen the two mounting screws or
relocate the door control to a smoother surface.
3. (Standard installation only) Run bell wire up wall and
across ceiling to motor unit. Use insulated staples to
secure wire in several places. Do not pierce wire with a
staple, creating a short or open circuit.
4. Strip 11 mm of insulation from end of bell wire. Connect
bell wire to the quick-connect terminals as follows: white
to white and white/red to red (Figure 5).
5. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent location
on inside of garage door.
Bell Wire
Terminal
Screws
Bottom Mounting Hole
Top Mounting Hole
Drywall Anchors
Insulated Staples
Screw 6ABx1-1/4"
(standard installation)
Screw 6-32x1"(pre-wired)
HARDWARE SHOWN ACTUAL SIZE
To Replace
Insert Bottom Tabs First
PRE-WIRED
INSTALLATION
24 Volt
Bell Wire
LOCK
LIGHT
LOCK
LIGHT
To Replace
Insert Bottom Tabs First
STANDARD
INSTALLATION
Single
Gang Box
Figure 3 DOOR CONTROL (BACK)
Figure 1 Figure 2
Figure 5
Red
Black
White
To release or insert wire,
push in tab with
screwdriver tip
Door Control
Connections
11 mm
7/16"
Strip wire 11 mm (7/16")
To prevent possible SERIOUS INJURY or DEATH from
electrocution:
• Be sure power is NOT connected BEFORE installing door
control.
• Connect ONLY to 24 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Install door control within sight of garage door, out of reach
of children at a minimum height of 1.5 m, and away from ALL
moving parts of door.
• NEVER permit children to operate or play with door control
push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed.
NEVER permit anyone to cross path of closing garage door.
WIRING INSTRUCTIONS FOR ACCESSORIES
The Protector System
®
: To opener terminals: White
to White and Black to Black.
Outside Keylock Accessory connections: To opener
terminals: Red/white to Red and White to White.
To Next Page
