Headlamps
To replace a headlamp bulb, do the following:
1. Open the hood. See Hood Release on page 5-11
for more information.

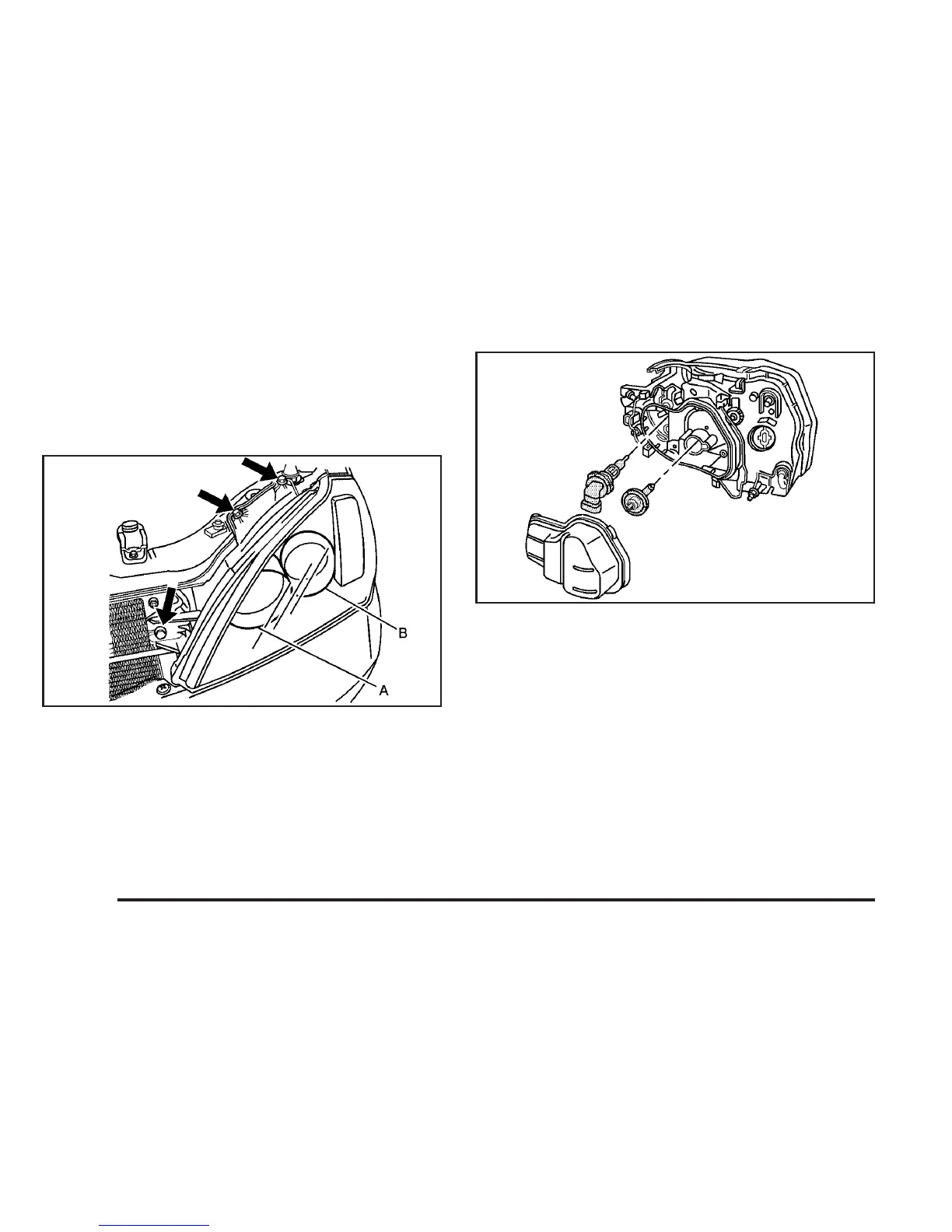

A. Low-Beam Headlamp
B. High-Beam Headlamp
2. Remove the three bolts from the headlamp
assembly.
3. Pull out the headlamp assembly.
4. Release the two wire bars that retain the headlamp
cap by pushing them outward.
5. Remove the headlamp cap.
6. Disconnect the two wiring harness connectors
located on each side of the headlamp assembly.
7. Remove the old bulb.
• To remove the high-beam headlamp bulb,
release the spring that retains the bulb.
• To remove the low-beam headlamp bulb, turn
the bulb counterclockwise.
5-40
