Cisco 2500 Series Wireless Controller Getting Started Guide
About This Guide

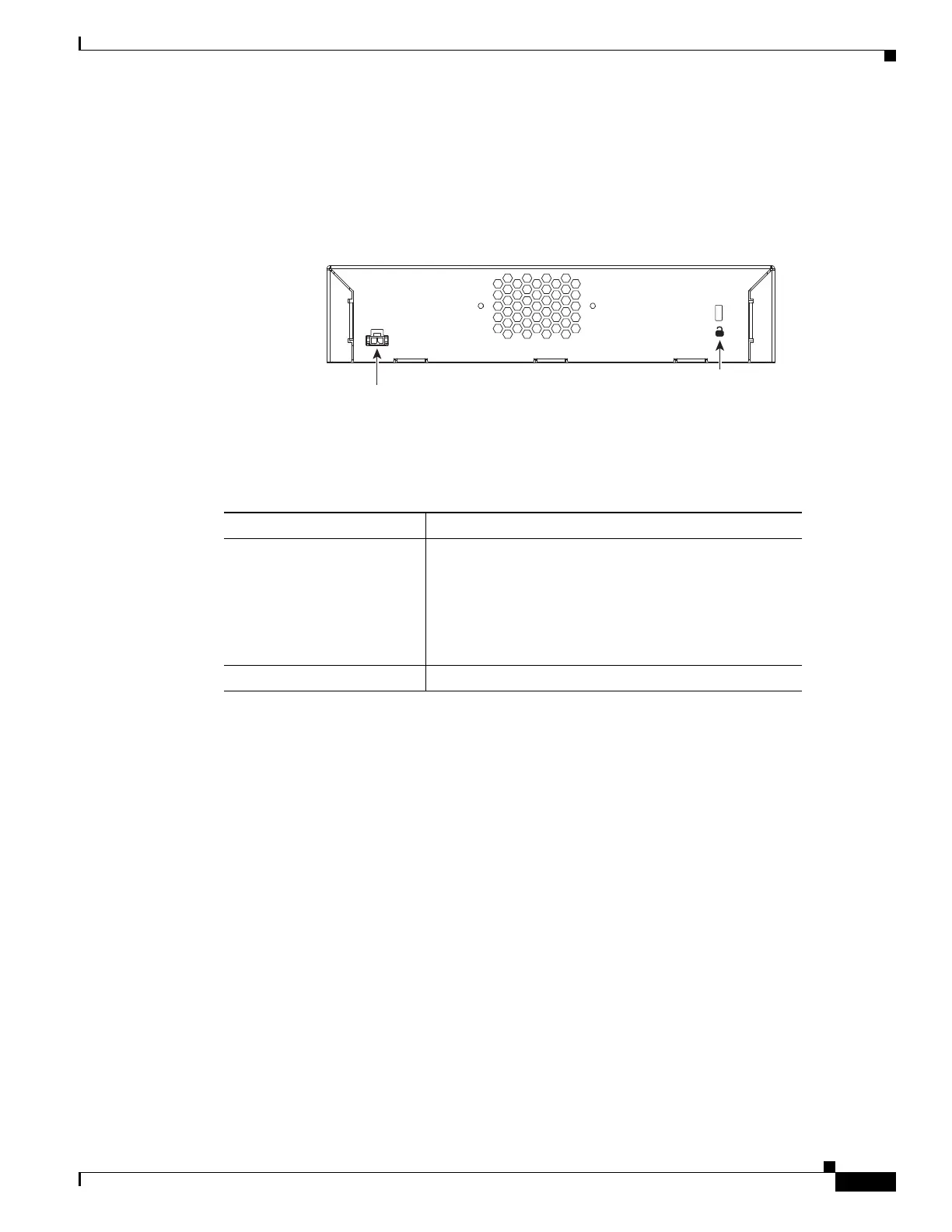

Figure 3 shows the back panel and identifies its components. Table 2 describes the back panel
components.
Figure 3 Controller Back Panel and Components
Table 2 Controller Back Panel and Component Descriptions
282250
POWER 48VDC
Cable Lock
Slot
Ports and Slots State and Description
POWER 48VDC The 48 V input power is provided via an external AC/DC
adapter. Power is provided to the system board from the
48 VDC input. There is enough power available to power
the system board plus two 802.3af PoE devices.
Note The Cisco 2106 power adapter is not compatible
with a 2504 controller.
Cable Lock slot Security locking slot.

Cisco 2504 Specifications

General

Number of users	25 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Quality of Service (QoS) support	Yes
Internal	No
LED indicators	Link, Power, Status
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	5
Security algorithms	3DES, DES, MD5, SSL/TLS, WPA, WPA2
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Safety	UL 60950-1, EN 60950:2005, FCC 15.107, FCC 15.109, ICES-003, VCCI, EN 55022, EN 55024
Power supply type	AC
AC input frequency	50 - 60 Hz
Power requirements	100 - 240 V

Weight and Dimensions

Weight	1590 g
Dimensions (WxDxH)	271.5 x 203.2 x 43.9 mm
