Cisco 3600 Series User Manual

1-Port Fast Ethernet and 2-Port Channelized E1/ISDN PRI Balanced (120-ohm) or Unbalanced (75-ohm)
Cisco Network Modules Hardware Installation Guide
5-8
Figure 5-8 1-Port Fast Ethernet 1-Port Channelized E1 Network Module
For information on connecting these modules to a network, see the “Connecting Fast
Ethernet Channelized E1 Modules to the Network” section on page 5-9.
1-Port Fast Ethernet and 2-Port Channelized E1/ISDN PRI
Balanced (120-ohm) or Unbalanced (75-ohm) Network
Modules
This section provides information about the following network modules for Cisco 3600
series modular routers.
• 1-port Fast Ethernet 2-port channelized E1/ISDN PRI balanced (120-ohm) network
module—Cisco product number NM-1FE2CE1B. (See Figure 5-9.)
• 1-port Fast Ethernet 2-port channelized E1/ISDN PRI unbalanced (75-ohm) network
module—Cisco product number NM-1FE2CE1U. (See Figure 5-9.)

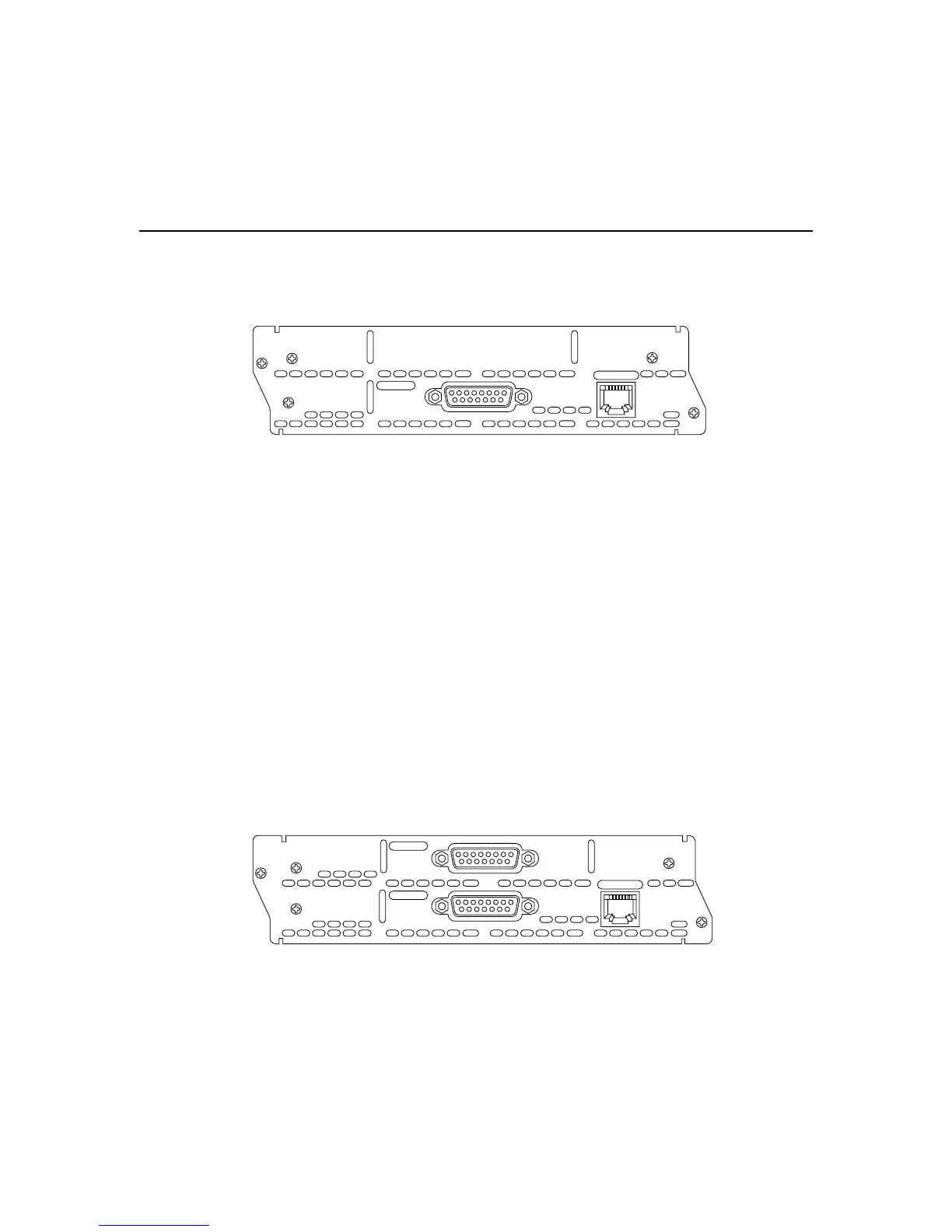

Figure 5-9 1-Port Fast Ethernet 2-Port Channelized E1 Network Module
LOOP BACK
EN
FE-PRI
1FE-1CE1-B/U
15230
LOCAL ALARM REMOTE ALARM
CARRIER DETECT
CTRLR 0
10/100BaseT
COLL LINK 100Mbps FDX
LOOP BACK
EN
FE-PRI
1FE-2CE1-B/U
10978
LOCAL ALARM REMOTE ALARM
CARRIER DETECT
LOOP BACK
CTRLR 1
CTRLR 0
10/100BaseT
LOCAL ALARM REMOTE ALARM
CARRIER DETECT
COLL LINK 100Mbps FDX
