Cisco 3600 Series User Manual

Fast Ethernet PRI Module LEDs
Cisco Network Modules Hardware Installation Guide
5-12

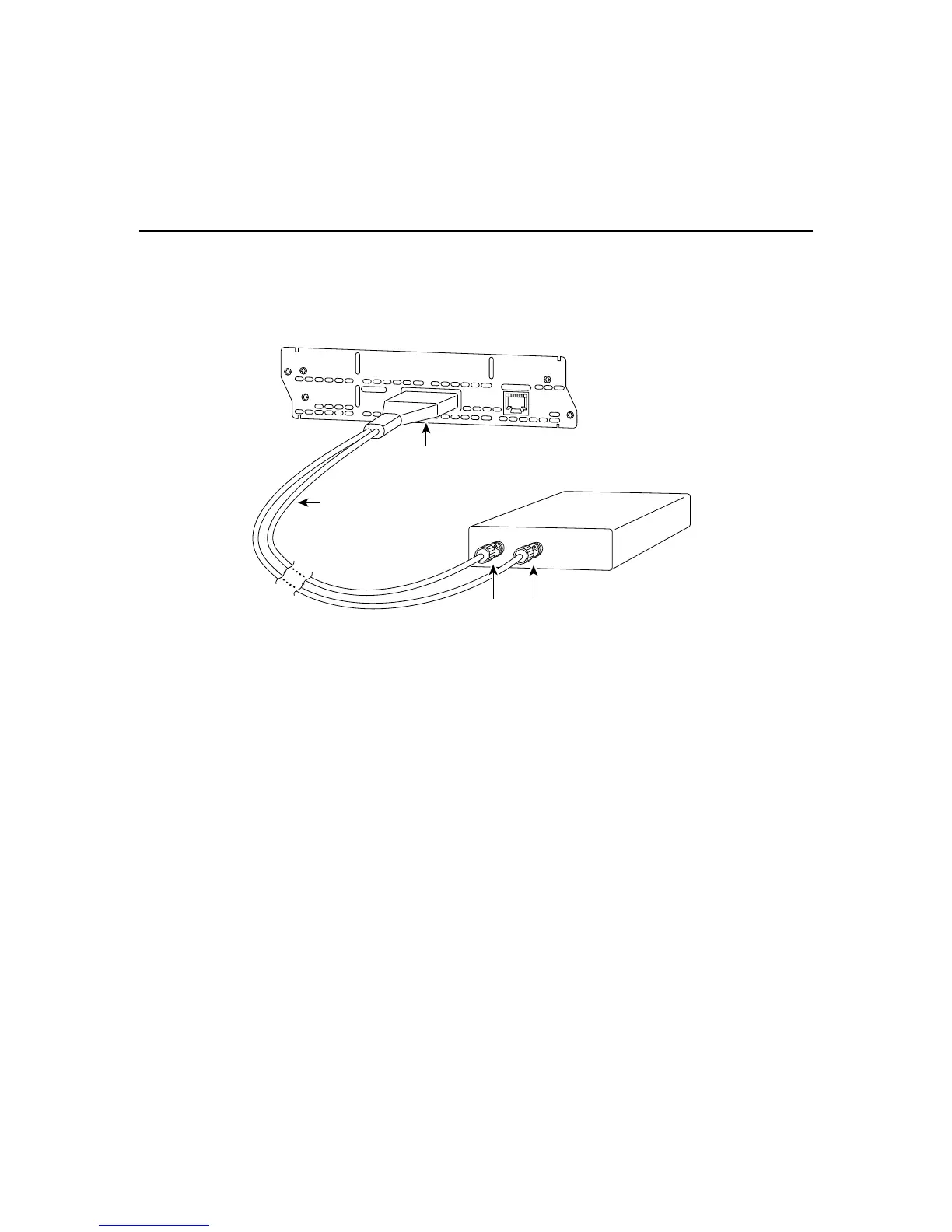

Figure 5-13 Connecting a CE1/PRI-U Module to an E1 CSU (DB-15-to-BNC
Connectors)
Fast Ethernet PRI Module LEDs
All network modules have an enable (EN) LED. This LED indicates that the module has
passed its self-tests and is available to the router.
All Fast Ethernet PRI modules have four LEDS for the Fast Ethernet port, and four
additional LEDs for each PRI port. Figure 5-14 shows LEDs for the 1-port Fast Ethernet
2-port channelized E1/ISDN PRI balanced (120-ohm) network module as an example.
LOOP
BACK
EN
FE-PRI
1FE-1CE1-B/U
LOCAL
ALARM
REMOTE
ALARM
CARRIER
DETECT
10/100BaseT
COLL
LINK
100Mbps
FDX
H7471
CE1/PRI-U
BNC connectors
E1 CSU
E1 cable for 75-ohm
unbalanced connections
with BNC connectors
at the network end
CTRLR 0
