Cisco 7600 Series Router Supervisor Engine and Route Switch Processor Guide
OL-10100-04
Chapter 2 Route Switch Processors and Supervisor Engines
RSP720 with 10GE Uplink Ports
RSP720 with 10GE Uplink Ports
Cisco IOS Release 12.2SRC introduces a new RSP720 with 10 Gigabit Ethernet (GE) uplink ports
(RSP720-10GE). The Cisco
7600 RSP720-10GE consists of a full-size board and two integrated
daughter cards: an MSFC4 and a PFC. The RSP720-10GE has an integrated switch fabric that
interconnects all of the line cards in the router with point-to-point 20-Gbps full-duplex serial channels.
Two versions of the RSP720-10GE module are available:
• RSP720-3C-10GE
• RSP720-3CXL-10GE
Because of physical differences between the RSP720 and RSP720-10GE (such as the CPU memory map
and ASIC operation), there are several configuration guidelines and restrictions you should be aware of.
See the
“RSP720-10GE Usage Guidelines and Limitations” section on page 2-10 for details.
Following are the total power requirements for the RSP720-10GE:
• RSP720-3C-10GE = 355 watts (total power)
• RSP720-3CXL-10GE = 378 watts (total power)
Figure 2-2 shows the RSP720-3C-10GE front panel. The RSP720-3CXL-10GE front panel is similar.
See Ta ble 2-2 and Table 2-3 for information about the front-panel controls and LEDs.

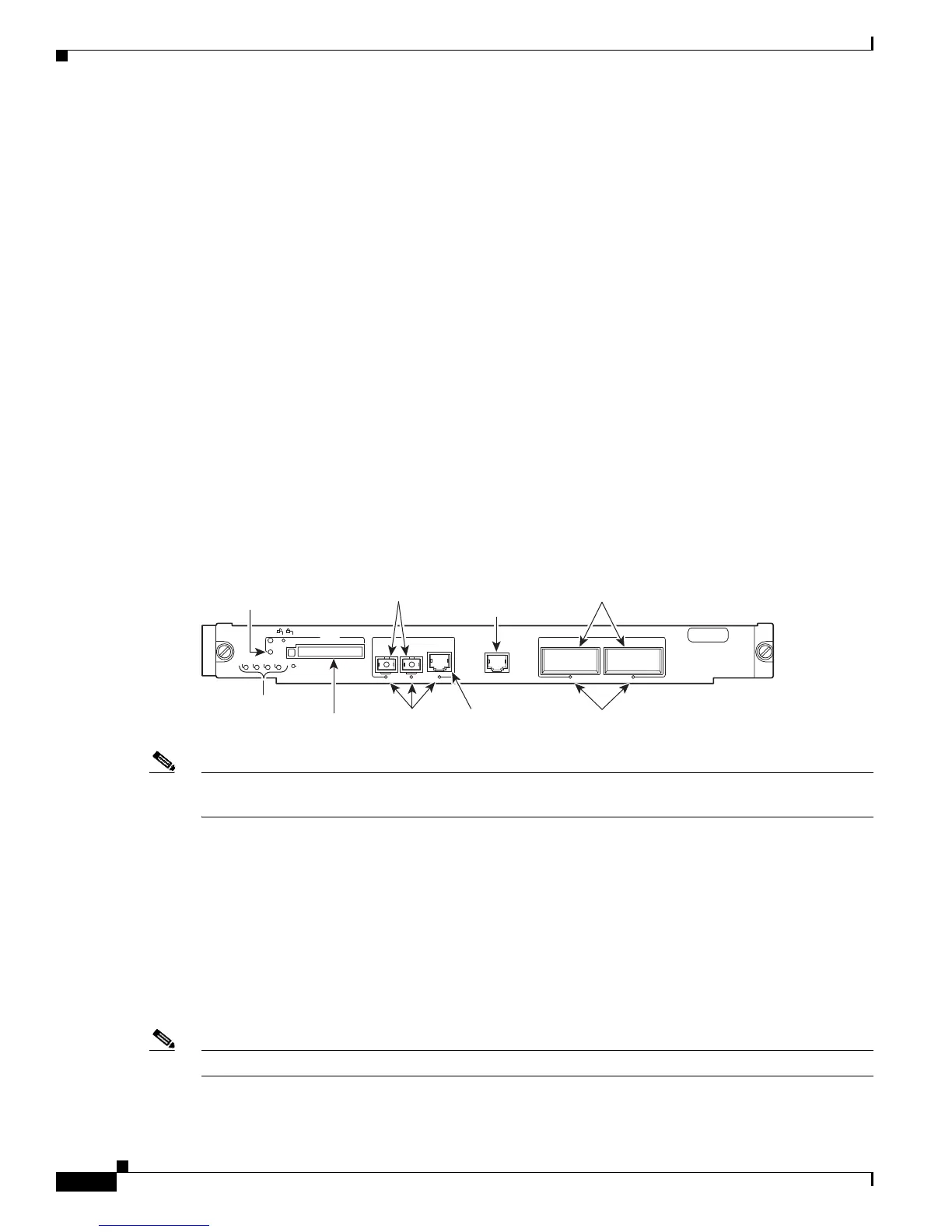

Figure 2-2 RSP720-3C-10GE Front Panel
Note Use Category 5 Shielded Twisted Pair cable at the port that supports the10/100/1000-Mbps RJ-45
connector.
RSP720-10GE Features
The RSP720-10GE provides all of the features of the RSP720 and also provides the following benefits:
• The RSP720-10GE has two 10GE uplink ports and three 1GE uplink ports. You can use the 10GE
ports as high-bandwidth uplinks and save chassis slots for high-density interfaces, such as a
SIP/SPA. This is especially useful in smaller chassis and in redundant configurations. For the three
1GE uplink ports, two ports support 1-Gbps SFP modules and one port supports a 10/100/1000-Mbps
RJ-45 connector.
Note Use CAT5 Shielded Twisted Pair cable at the port that supports the10/100/1000-Mbps RJ-45 connector.
• The RSP720-10GE supports the following line rates for uplink traffic and backplane forwarding:
RSP720-3C-10GE
STATUS SYSTEM
ACTIV E
PWR MGMT
RESET
EJECT
DISK 0
UPLINK
SFP
1
3
10/100/100
3
LINK LINKLINK
CONSOLE
LINK
LINK
4
10GE UPLINK
5
RSP720 WITH INTERATED SWITCH FABRIC/PFC3C-10GE
250253
Disk LEDs
LINK
LEDs
STATUS
LEDs
CompactFlash
Type II slots
1-GE uplink
ports
CONSOLE
port
10/100/1000
uplink port
10-GE uplink
ports
LINK
LEDs
