Cisco 7600 Series Guide

B-8
Cisco 7600 Series Router Supervisor Engine and Route Switch Processor Guide
OL-10100-04
Appendix B Cable and Connector Specifications
Console Port Cabling Specifications and Pinouts

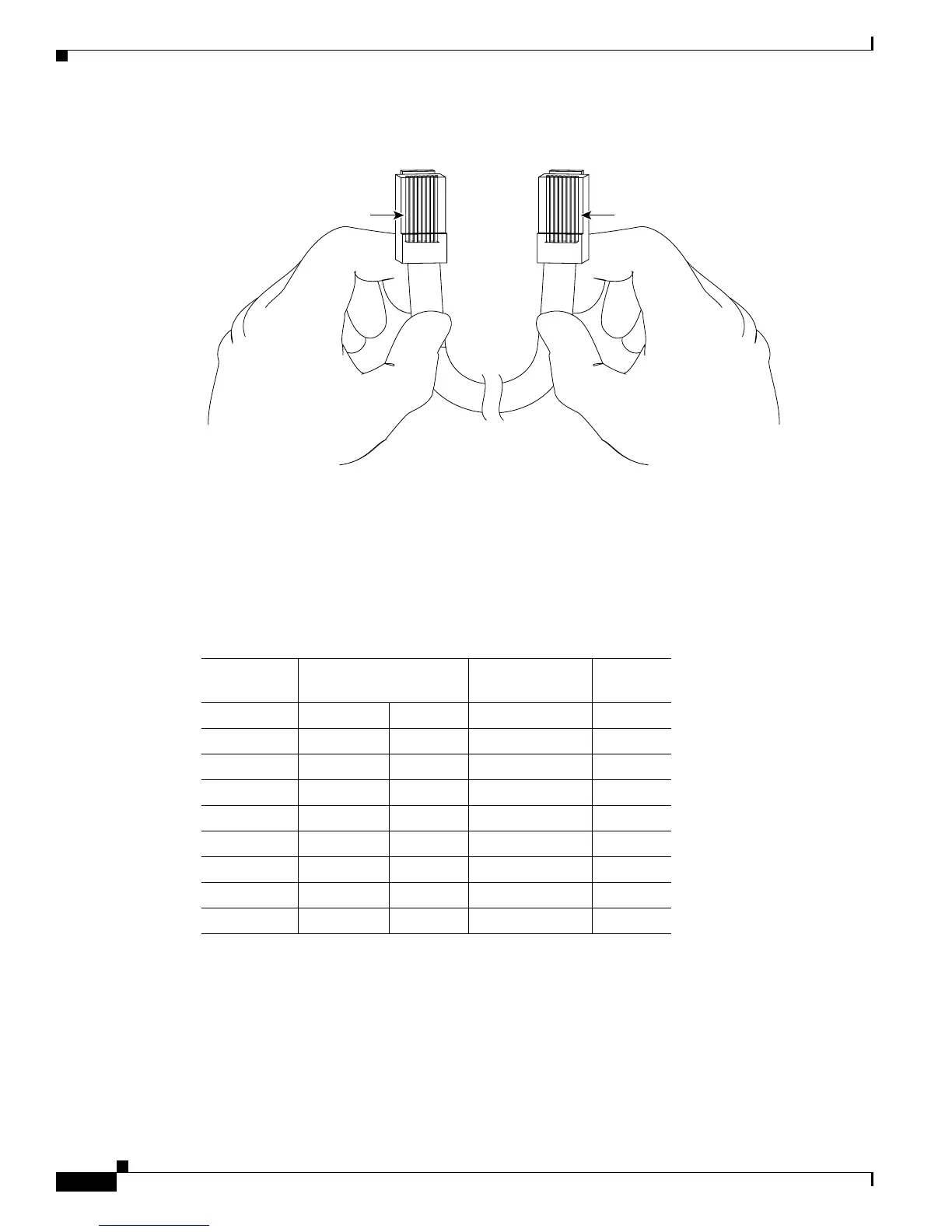

Figure B-1 Identifying a Rollover Cable
DB-9 Adapter (for Connecting to a PC)
Use the RJ-45-to-RJ-45 rollover cable and RJ-45-to-DB-9 female DTE adapter (labeled “Terminal”) to
connect the console port to a PC running terminal emulation software.
Table B-8 lists the pinouts for the
asynchronous serial console port, the RJ-45-to-RJ-45 rollover cable, and the RJ-45-to-DB-9 female DTE
adapter.
Pin 1
Pin 8
H3824
Pin 1 and pin 8
should be the
same color
Ta b l e B-8 Console Port DB-9 Adapter Pinouts
Console Port
RJ-45-to-RJ-45
Rollover Cable
RJ-45-to-DB-9
Terminal Adapter
Console
Device
Signal RJ-45 Pin RJ-45 Pin DB-9 Pin Signal
RTS 1
1
1. Pin 1 is connected internally to Pin 8.
8 8 CTS
DTR 2 7 6 DSR
TxD 3 6 2 RxD
GND 4 5 5 GND
GND 5 4 5 GND
RxD 6 3 3 TxD
DSR 7 2 4 DTR
CTS 8
1
1 7 RTS
