Table 5: Wired microphone buttons
DescriptionItem
Mute button.1
Phone screen
The DCU contains the LCD phone screen. The idle or home screen displays information about the status of
calls and features.
If the conference phone is in an offline state, the idle screen displays the message Phone is not
registered and the Apps softkey remains available.
You can use the graphic and table below to identify the features and functions available on the screen.

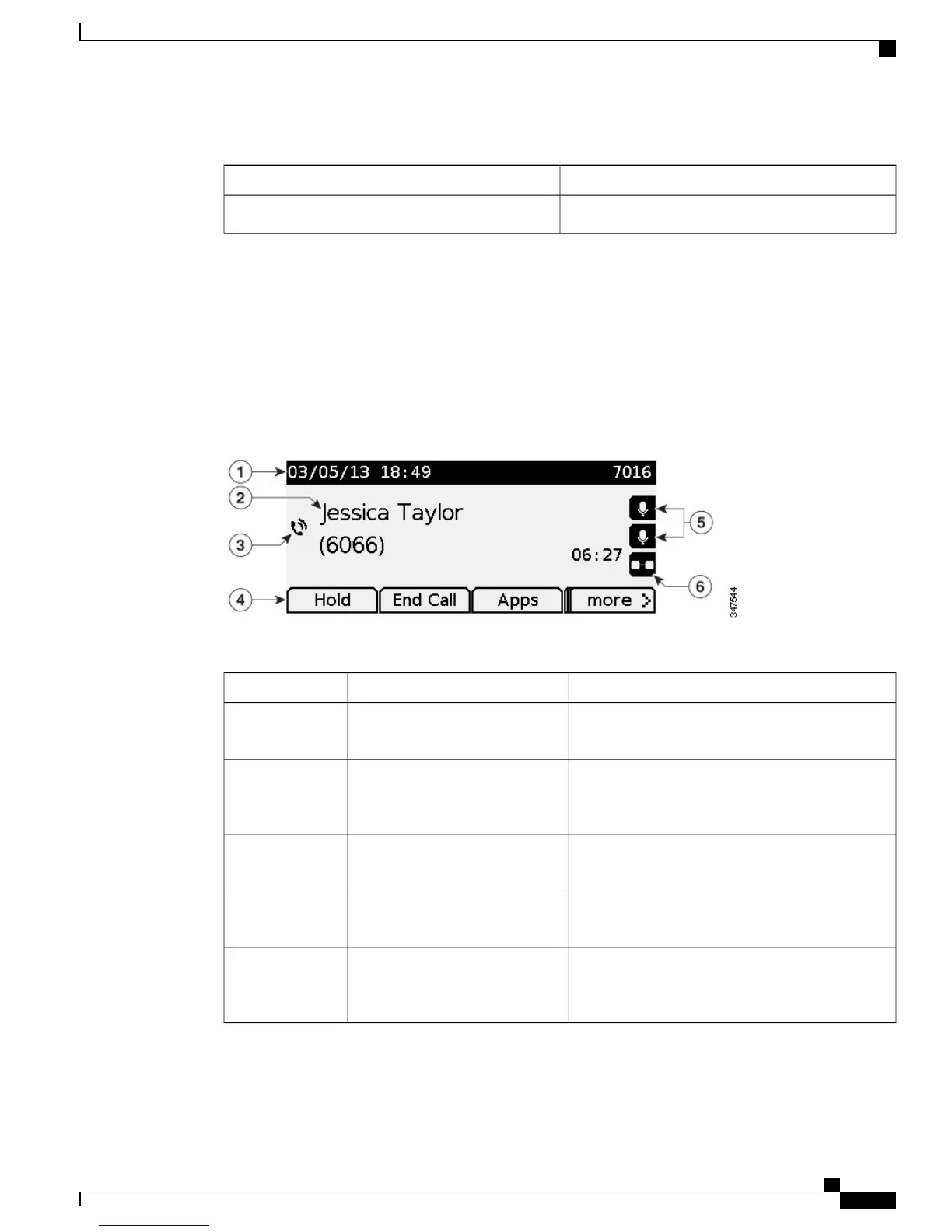

Table 6: Phone screen layout.
DescriptionItem
Displays date, time, and current directory number.
Displays menu name when applicable.
Header1
Displays line label, call details, and status messages
such as missed calls, message waiting, and line
forwarding information.
Line details and other phone
information
2
Indicates the status of a call, such as ringing, hold,
encrypted or connected call.
Call State icon3
Displays softkeys for currently available features or
actions.
Softkey labels4
These icons are displayed when an associated
feature, such as extension microphones (5) or Link
mode (6) is connected.
Feature icons5, 6
Cisco Unified IP Conference Phone 8831 User Guide for Cisco Unified Communications Manager 9.0
13
Features of your Cisco Unified IP Conference Phone
Phone screen
