Removing and Replacing the Cisco ASR 1002 Router Power
Supplies
The Cisco ASR 1002 Router contains the following power supplies:
• AC power supply
• –48 VDC power supply
• +24 VDC power supply
This section contains the procedures to remove and replace these power supplies in the Cisco ASR 1002
Router, Cisco ASR 1002-F Router, and Cisco ASR 1002-X Router.
Unless otherwise noted, the Cisco ASR 1002-F Router AC and –48 VDC power supply and removal and
installation remain the same as the Cisco ASR 1002 Router.
Note
This section contains the following topics:
Removing and Replacing an AC Power Supply in Cisco ASR 1002 Router
This section provides information about removing and replacing an AC power supply in the Cisco ASR 1002
Router.
You must have both power supplies installed in the Cisco router.
Note
The Cisco ASR 1002 Router has two of the same type power supplies in power supply slot 0 and power supply
slot 1. The following figure shows the Cisco ASR 1002 Router AC power supply.

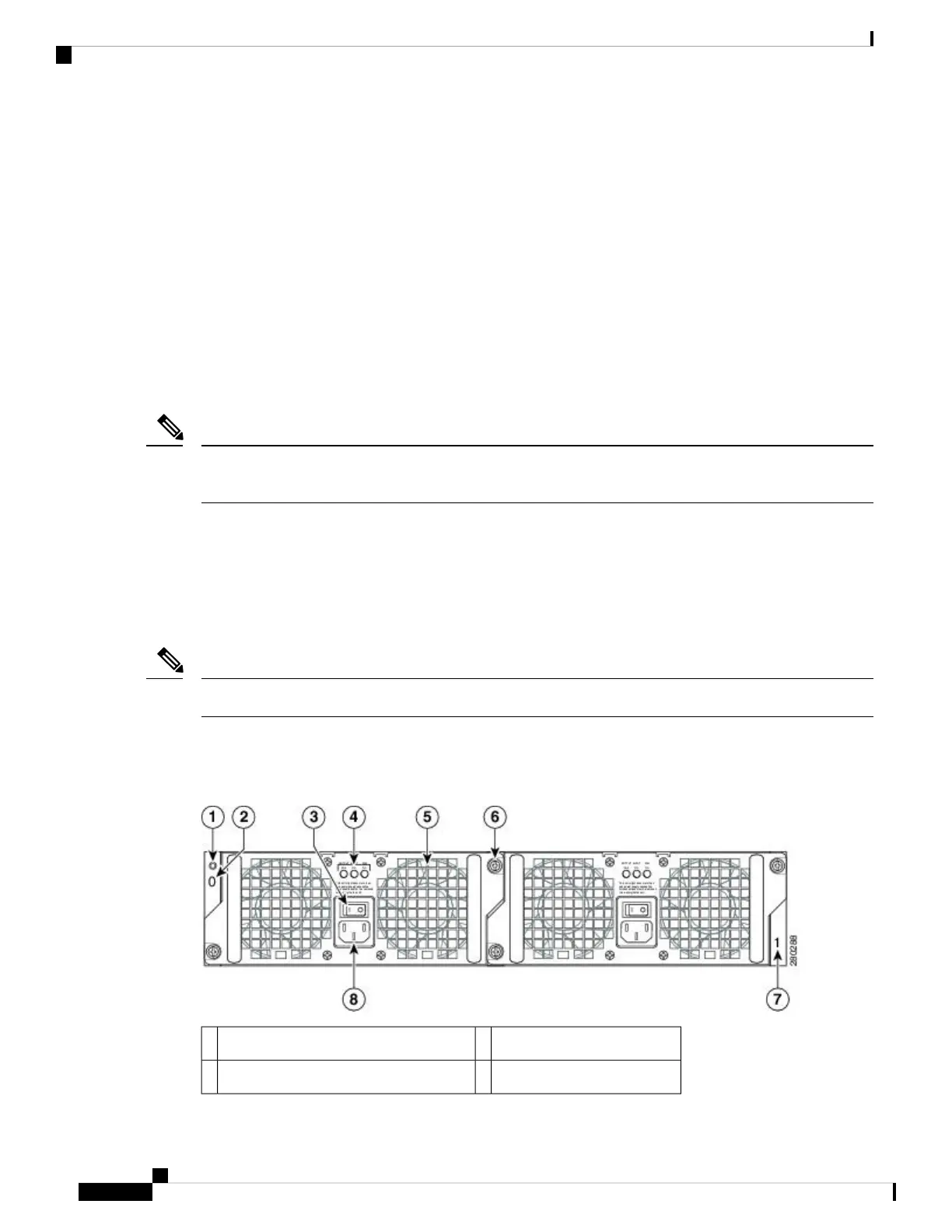

Figure 51: Cisco ASR 1002 Router AC Power Supply
Fan5AC power supply ESD socket1
Captive installation screw6AC power supply slot 0 label2
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
80
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR 1002 Router Power Supplies

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
