Cisco ASR 1002 Replacing

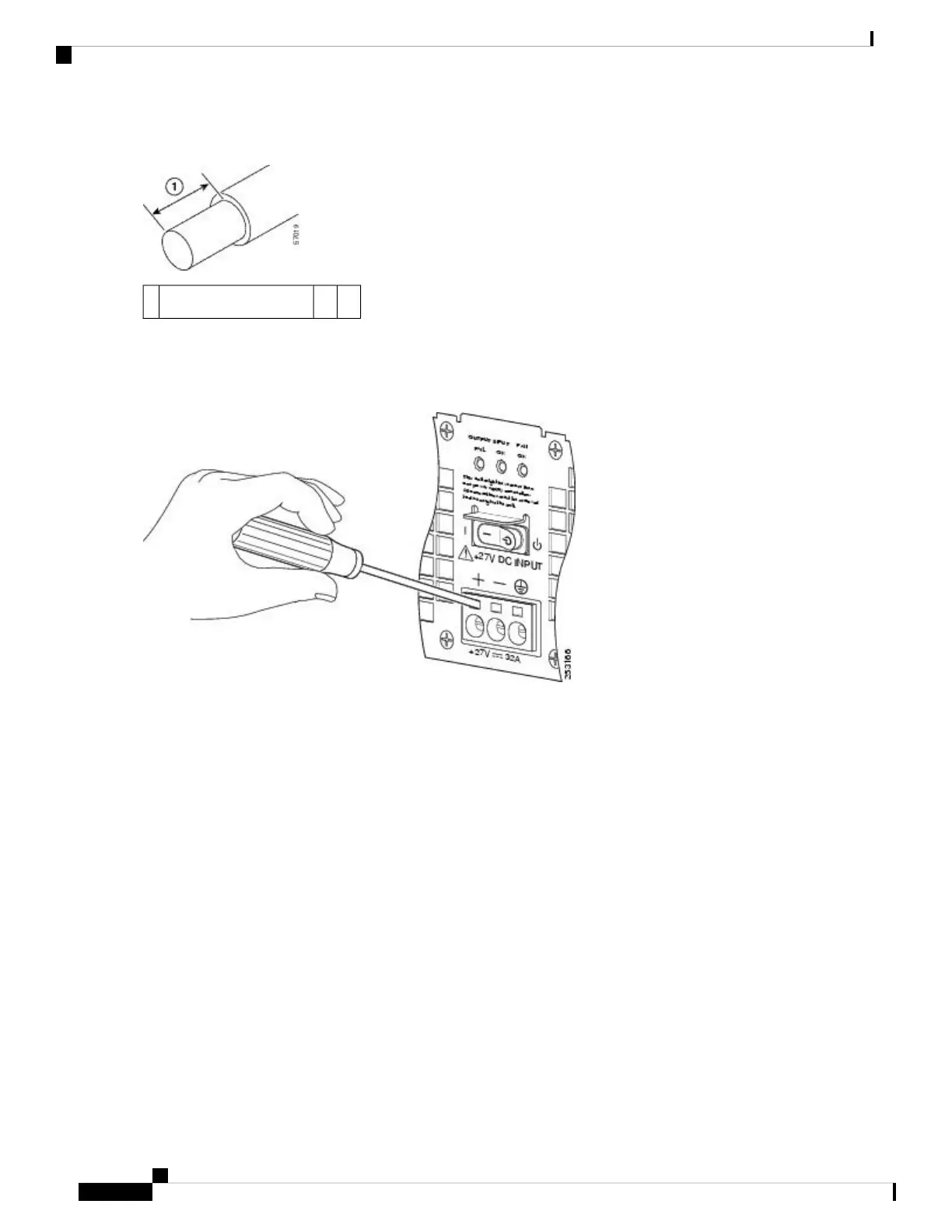

Figure 60: Wire Strip and Lead for the +24 VDC Terminal Block
——Lead wire stripped area1
Step 5 Using a 3.5mm screwdriver, insert the screwdriver at an angle to release the spring while you install the stripped lead
wire (see the following figure).
Figure 61: Inserting a Screwdriver into the +24 VDC Power Supply Terminal Block
Step 6 Carefully push the screwdriver at an angle forward until you relieve the spring contact.
Step 7 With the screwdriver still inserted, gently push the lead wire (ground lead first) in until there is no copper wire showing
as shown in the following figure.
Check that there is no copper portion of the lead wire exposed. Only wire insulation must be visible.
Caution
Do not install wire into the terminal block that has not had its insulation removed.
Caution
The following figure shows the +24 VDC power supply lead wire inserted into the terminal block.
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
94
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Replacing the +24 VDC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1002 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
DHCP client	-
Supported network protocols	BGP, GRE, OSPF, DVMRP, EIGRP, IS-IS, IGMPv3, PIM-SM, PIM-SSM
Ethernet LAN (RJ-45) ports	4
Security algorithms	SSH
VPN tunnels quantity	8000
Safety	UL60950-1 CSA, C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Certification	FCC 47CFR15 Class A AS/NZS CISPR 22 CISPR 22 Class A EN55022 Class A ICES-003 Class A VCCI Class A CNS-13438 Class A EN61000-3-2 EN61000-3-3
Internal memory	4096 MB
AC input voltage	85 - 264 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	560 W
Operating altitude	0 - 3048 m
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Product color	Gray
Rack capacity	2U

Weight and Dimensions

Depth	461 mm
Width	437.4 mm
Height	89 mm
Weight	- g
