Cisco ASR 5000 Series User Manual

Technical Specifications
Interface Specifications ▀
Cisco ASR 5000 Series Product Overview ▄
OL-22938-02
Table 118. SM IR-1 Fiber Interface Transmit and Receive Levels
Signal
Level
Max TX:
-8 dBm
Min TX:
-15 dBm
Max RX:
-8 dBm (saturation average power)
Min RX:
-28 (max) dBm (sensitivity average power)
The fiber-optic SFP interface on OLC and OLC2 Optical ATM Line Cards with the multi-mode interface has one pair of
host connectors as shown in figure that follows.

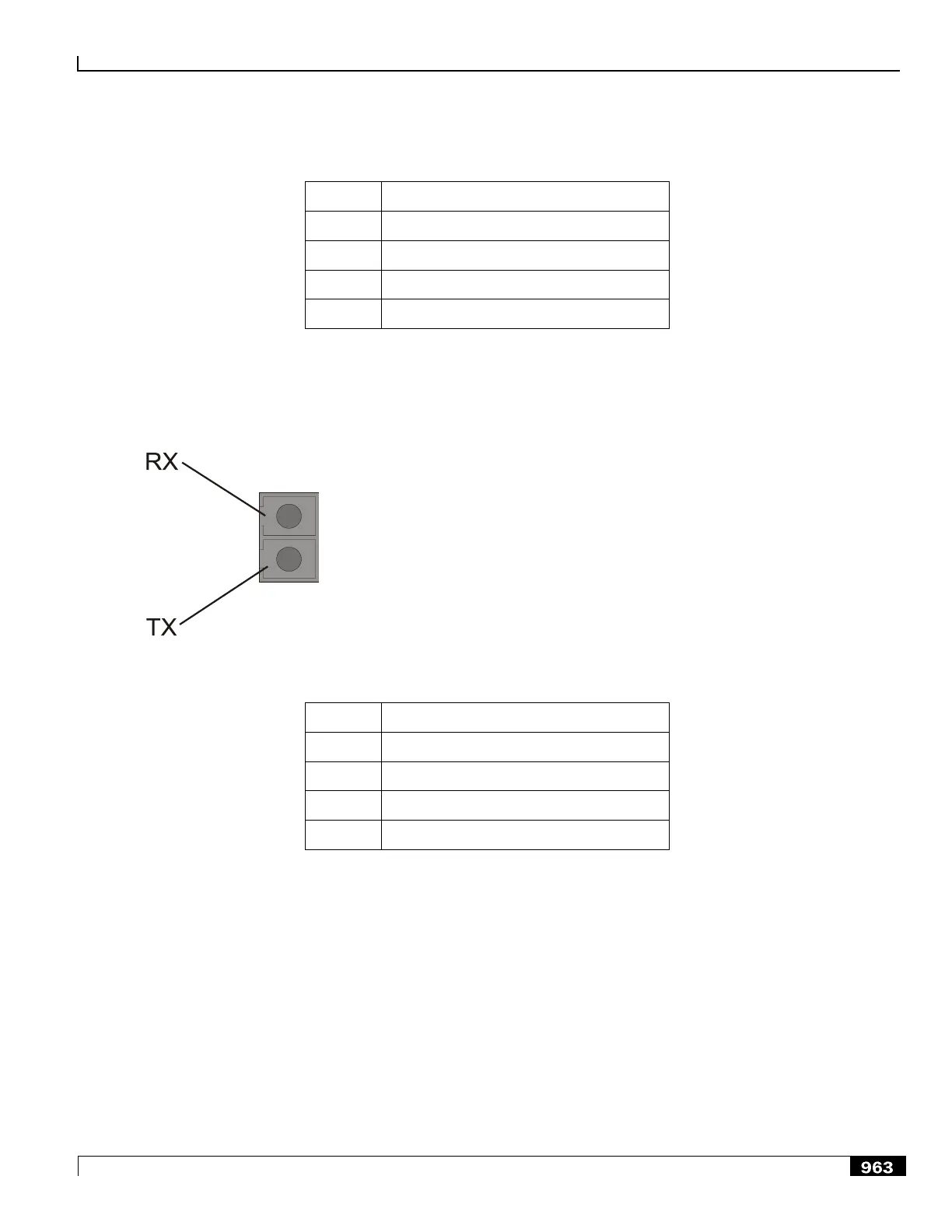

Figure 234. ATM Line Card Multi-Mode SFP Pin-out
Table 119. Multi-Mode Fiber Interface Transmit and Receive Levels
Signal
Level
Max TX:
-14 dBm
Min TX:
-19 dBm
Max RX:
-12 dBm (saturation average power)
Min RX:
-30 (max) dBm (sensitivity average power)
Channelized Line Cards
Channelized Line Cards with Single-mode Interface
The optical SFP interface on the 1-port CLC and 4-port Channelized Line Card with the single-mode interface has one
pair of connectors that receive SFP transceivers, as shown in the following figure.
