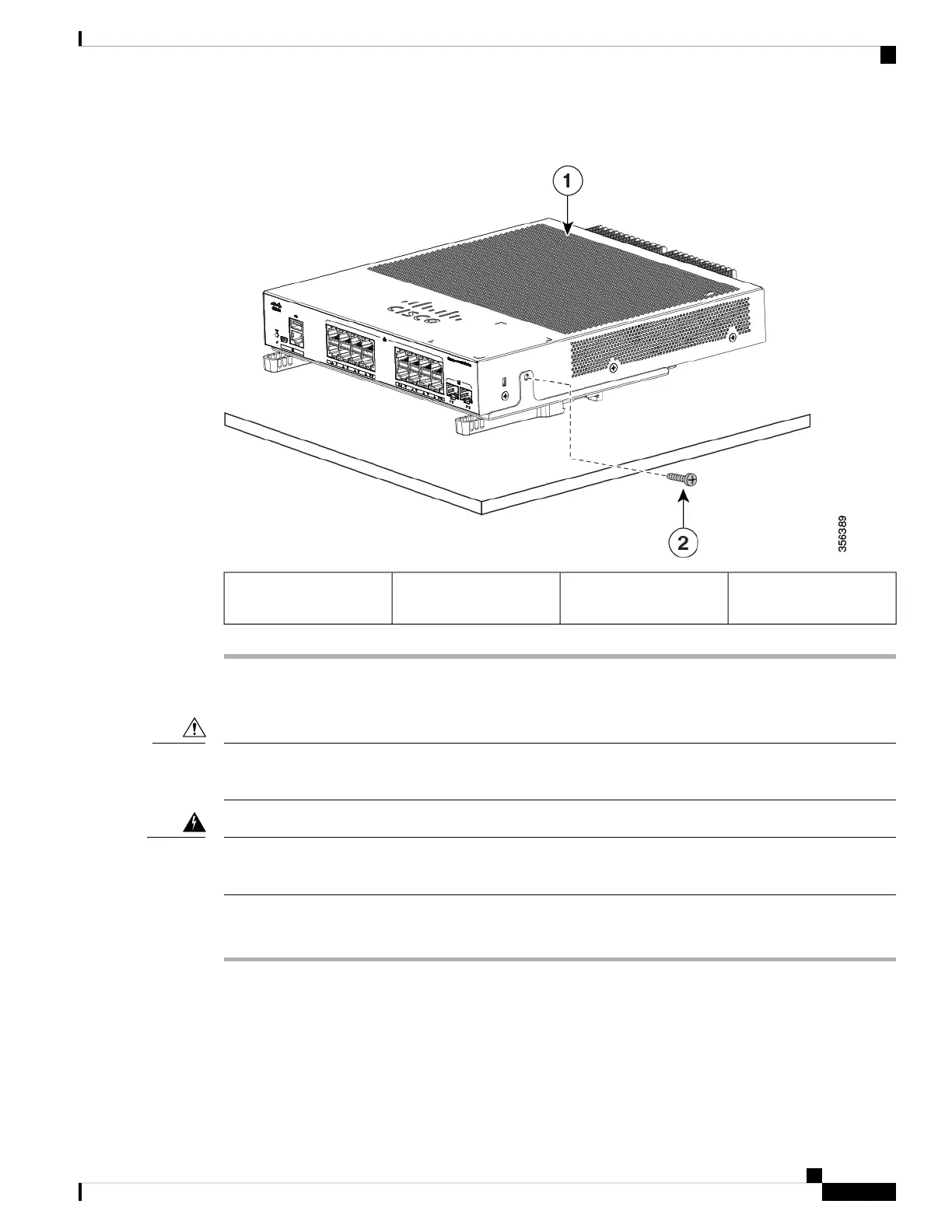

Figure 18: Securing the DIN-Mount Tray to the Switch
Number-10 Phillips
pan-head screws
2Switch1
Mounting the Switch on a DIN Rail
Do not install the switch with its front panel facing up. Following safety regulations, install the switch with
its front panel facing down, to allow sufficient airflow and to provide easier access to the cables.
Caution
To prevent airflow restriction, allow clearance around the ventilation openings to be at least: 3 in. (7.6 cm)
Statement 1076
Warning
Procedure
Step 1 Position the switch directly in front of the DIN rail, making sure that the top of the DIN rail mount clip hooks
over the top of the DIN rail.
Cisco Catalyst 1000 Series 8-Port and 16-Port Switch Hardware Installation Guide
27
Switch Installation
Mounting the Switch on a DIN Rail
