Number-12 Phillips pan-head screws
(48-0523-01) or Number-10 Phillips
pan-head screws (48-0627-01)
4Cable guide1
Mid-mounting position5Phillips machine screw, black
(48-0654-01)
2
Rear-mounting position6Front-mounting position3
Wall-Mounting
Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware
or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
Statement 378
Warning
Attaching the Brackets for Wall-Mounting
Procedure

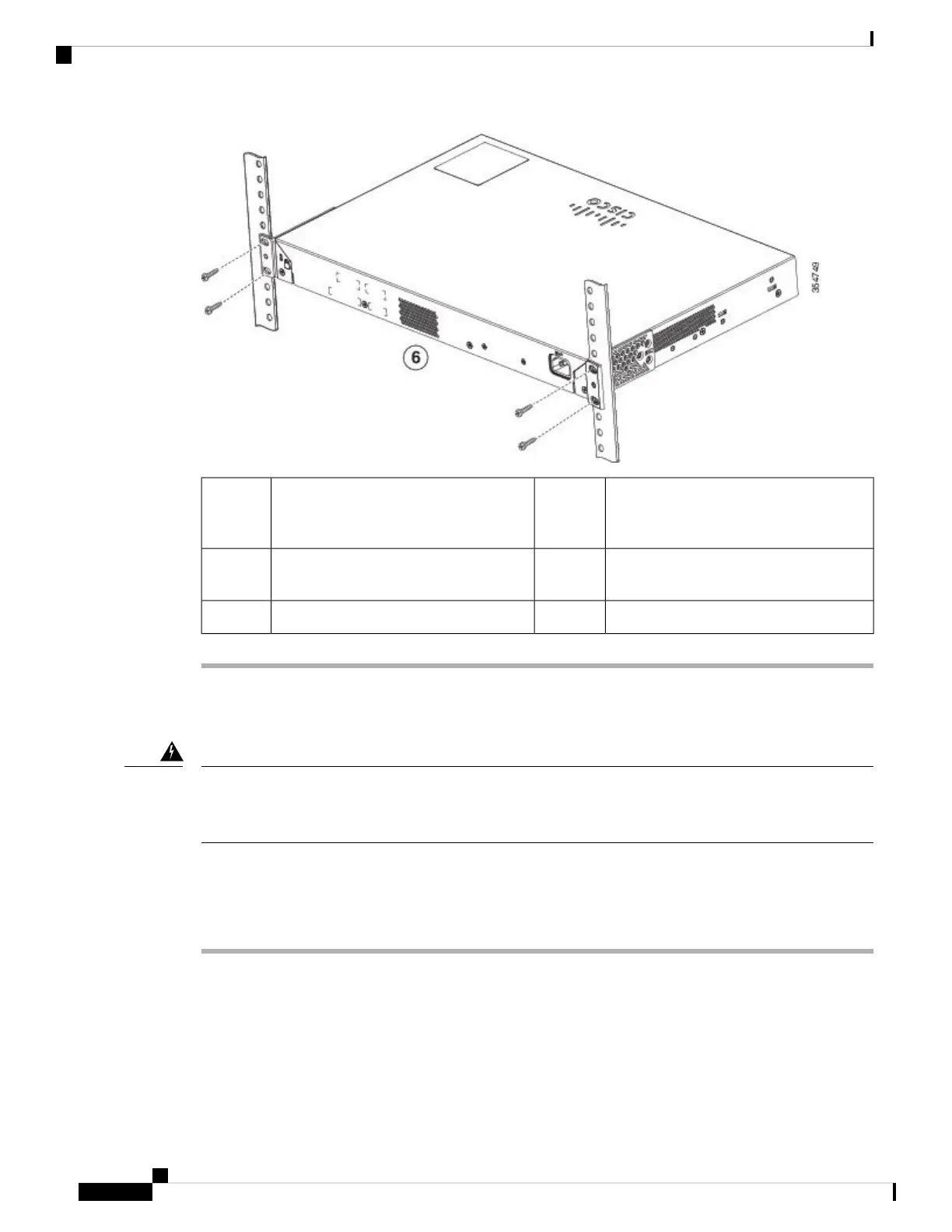

Step 1 Attach a 19-inch bracket to one side of the switch.
Step 2 Follow the same steps to attach the second bracket to the opposite side.
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
22
