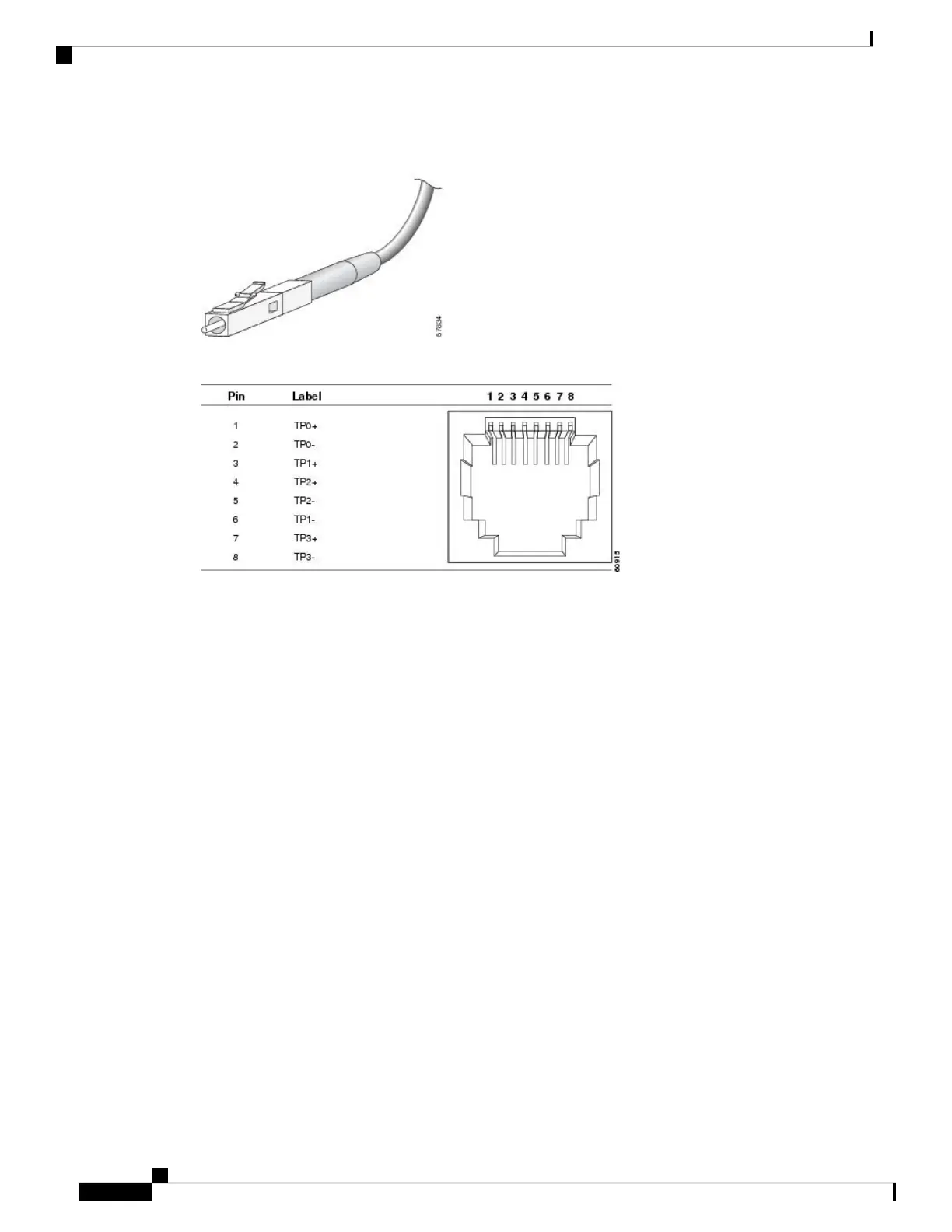

Figure 26: Simplex LC Cable Connector
Figure 27: Copper SFP Module LC Connector
Cables and Adapters
SFP Module Cables
For cabling specifications, refer to the following notes:
Cisco SFP Transceiver Module Installation Notes
Each port must match the wavelength specifications on the other end of the cable, and the cable must not
exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair,
Category 5 cable at lengths up to 328 feet (100 meters).
Cisco Catalyst 1000 Series 24-Port and 48-Port Switch Hardware Installation Guide
46
Connector and Cable Specifications
Cables and Adapters
