Chapter 1 Overview
Key Features
Figure 1-6 1000BaseX Module with GBIC Installed
1000BaseT Module
The 1000BaseT module, shown in Figure 1-7, provides one switched 1000-Mbps,
full-duplex port over UTP copper cabling. The 1000BaseT module port supports
the IEEE 802.3ab standard.

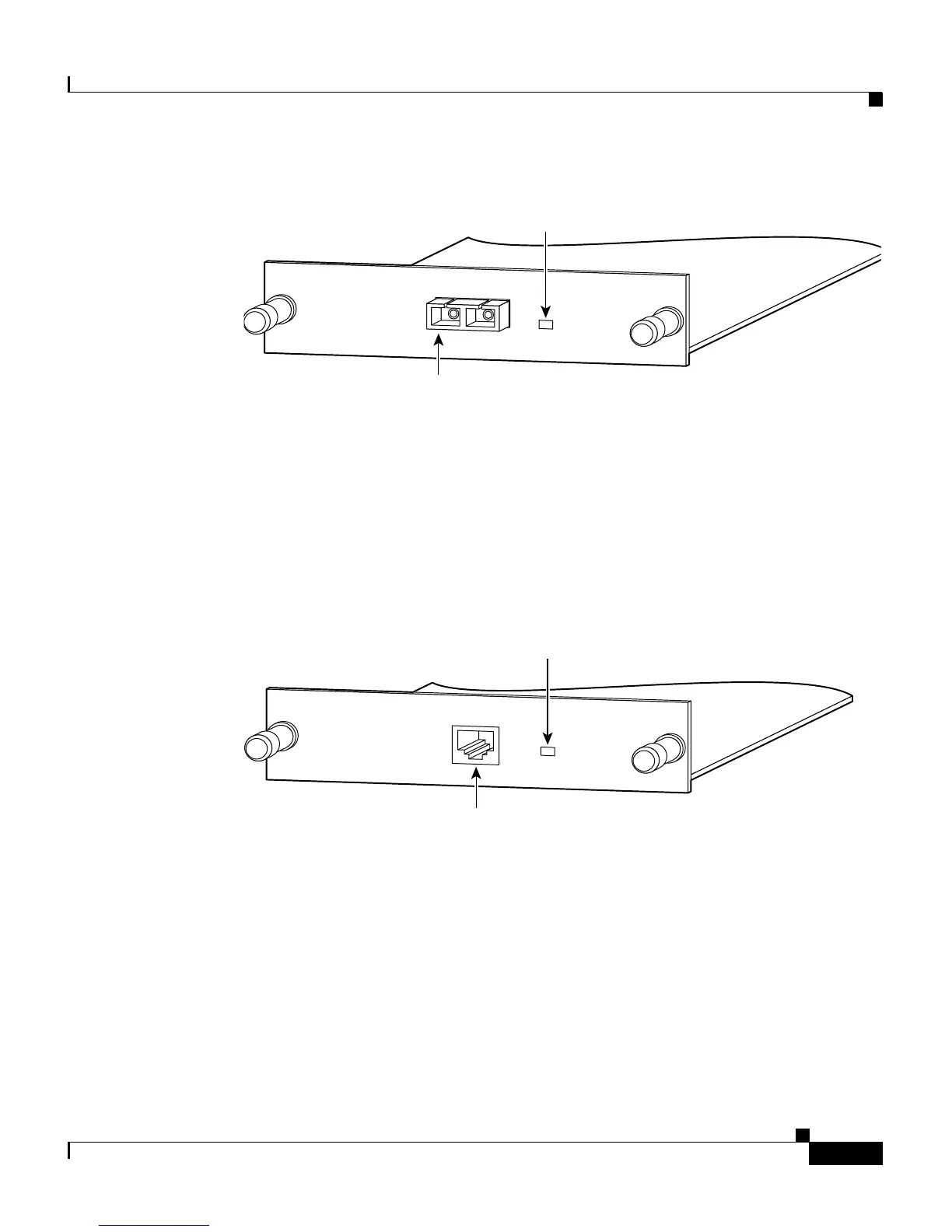

Figure 1-7 1000BaseT Module
The “10/100 Module Cabling” section in the “Connectors and Cables” appendix
describes the RJ-45 connector.
15688
1X
2X
1000BaseX port
Tighten
Screws
To Activate
WS-X2931-XL
1000BaseX
LED
31117
1000BaseT port
Tighten
Screws
To Activate
WS-X2932-XL
LED
1000BaseT
