Cisco Catalyst IR1821 Installation Guide

Changing the Bracket Orientation
The DIN rail bracket arrives oriented in the horizontal mounting position. In order to mount your device in the
vertical orientation, disassemble the bracket hardware and reassemble it in the new orientation.
Horizontal orientation is shown in the following figure:

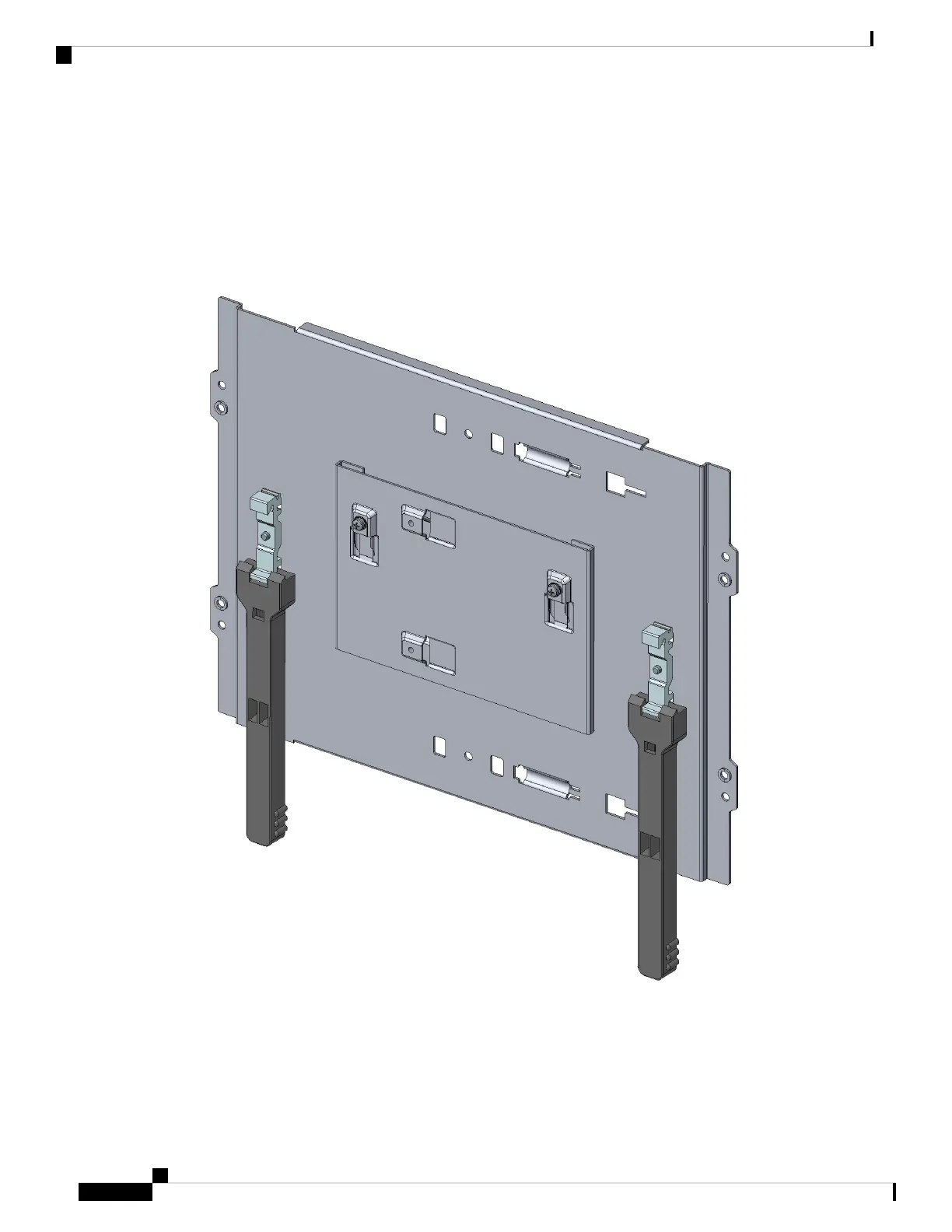

Figure 8: Horizontal Orientation
A vertical orientation is shown in the following figure:
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
32
Installing the Router
Changing the Bracket Orientation
