Cisco Catalyst IR1821 Installation Guide

Procedure
Step 1 Remove the two screws (1) that hold the two DIN rail clamps (2).
Step 2 Slide the DIN rail clamps (2) away from the plastic latches (4) and remove them.
Step 3 Slide the plastic latches (4) off the DIN rail plate, and remove the two springs (3).
Step 4 Remove the two DIN rail clips (5) from the mounting bracket.
Step 5 Note: Retain all the components for reuse when mounting with vertical orientation.
Bracket Reassembly
The following procedure shows how to reattach all of the bracket componants to enable vertical orientation.

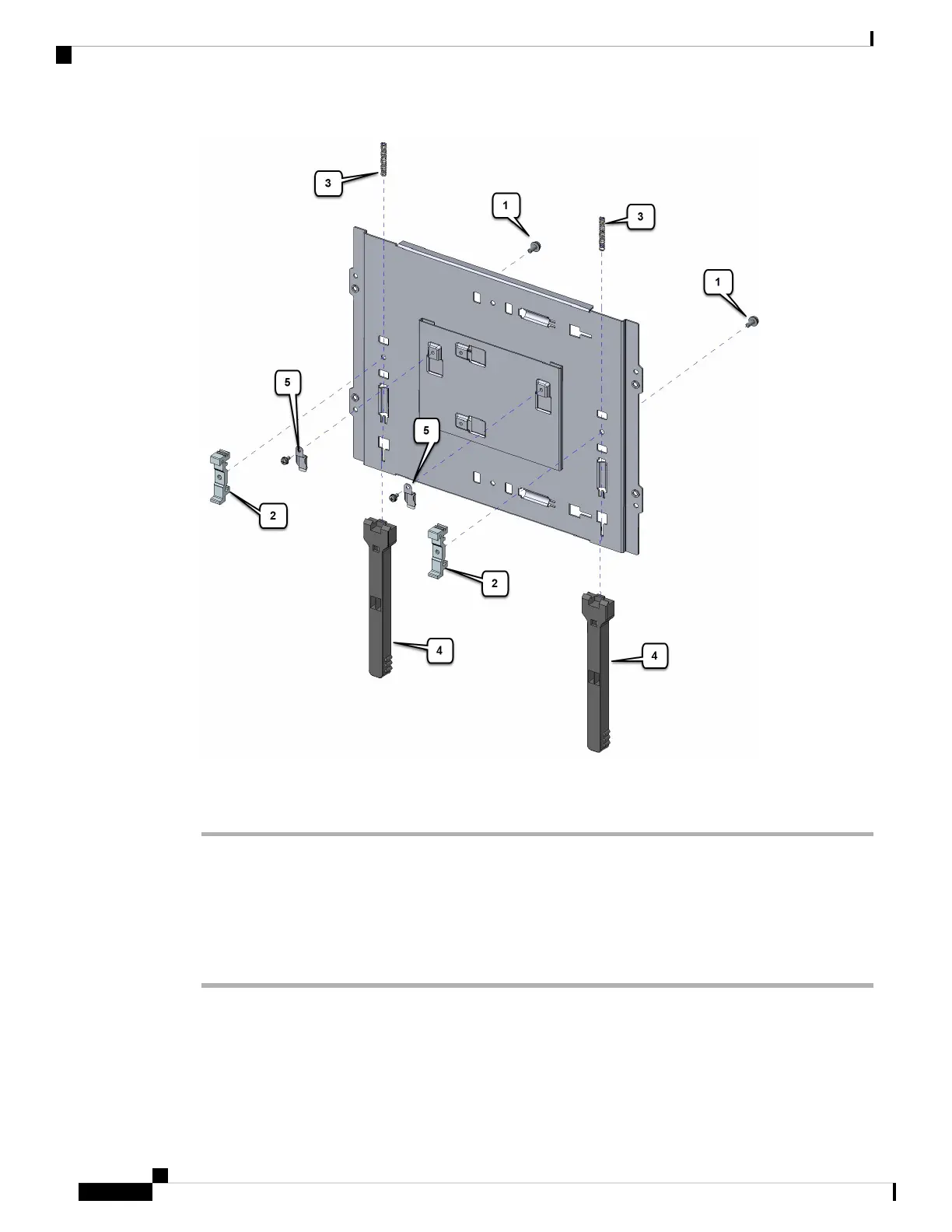

See the following figure and follow the steps provided.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
34
Installing the Router
Bracket Reassembly
