Getting started with the Cisco 829 Integrated Services Router
78-100611-01A0
Connecting to the Router Gateway Ports
For hazardous location environments, follow these warnings when connecting to the destination ports
(antenna, serial, Ethernet, and console ports).
Warning If you connect or disconnect the console cable with power applied to the switch or any device on the
network, an electrical arc can occur. This could cause an explosion in hazardous location
installations. Be sure that power is removed or the area is nonhazardous before proceeding.
Statement 1080
Warning Do not connect or disconnect cables to the ports while power is applied to the switch or any device
on the network because an electrical arc can occur. This could cause an explosion in hazardous
location installations. Be sure that power is removed from the switch and cannot be accidentally be
turned on, or verify that the area is nonhazardous before proceeding.
Statement 1070
Connecting to the USB Port
Note If you are connecting to the USB port:
- a connection (to the USB port) can only be made in a non-hazardous environment
- the USB port cover must be reinstalled before the router can be deployed in a hazardous environment

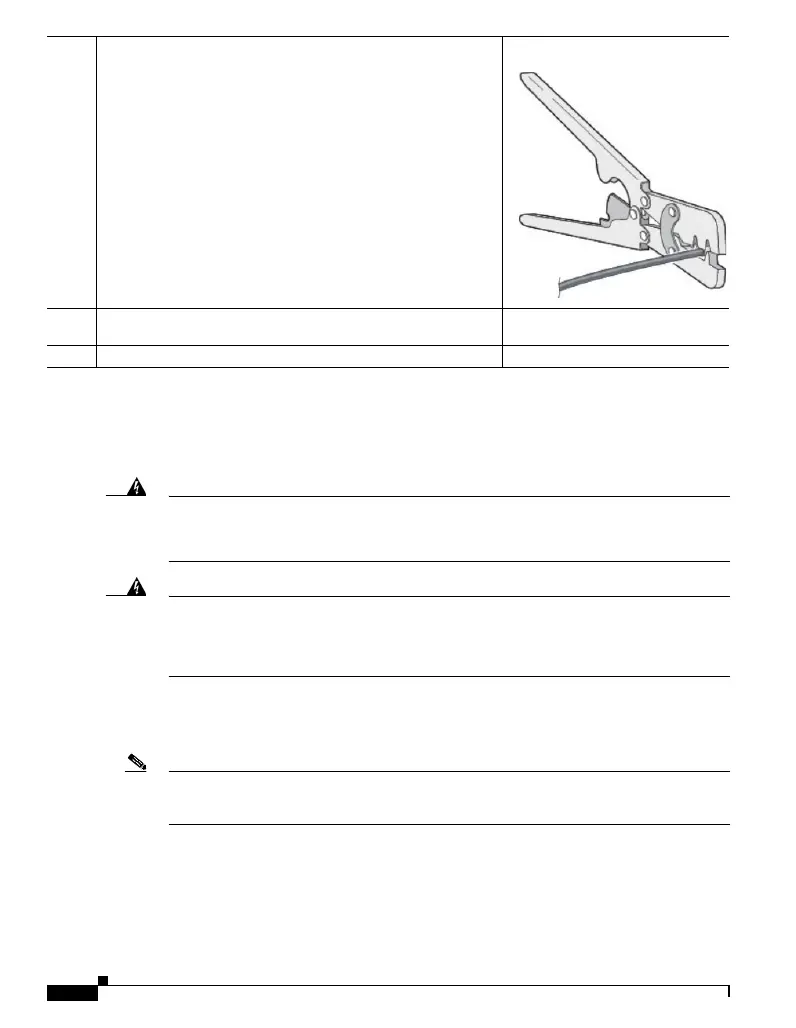

Step 3
Using the pins included in the kit, crimp each pin onto a wire.
Step 4
Insert the pins into the power connector, referring to previous figures 1
and 2 for guidance.
Step 5
Plug the connector into the power entry receptacle.
