Cisco MDS 9148S Multilayer Switch Hardware Installation Guide
OL-20185-01
Chapter 1 Cabinet and Rack Installation
Cisco MDS 9000 Family Telco and EIA Shelf Bracket
Installing the Shelf Bracket Kit into a Four-Post EIA Rack
Figure 1-2 shows the installation of the shelf bracket kit into a four-post EIA rack.

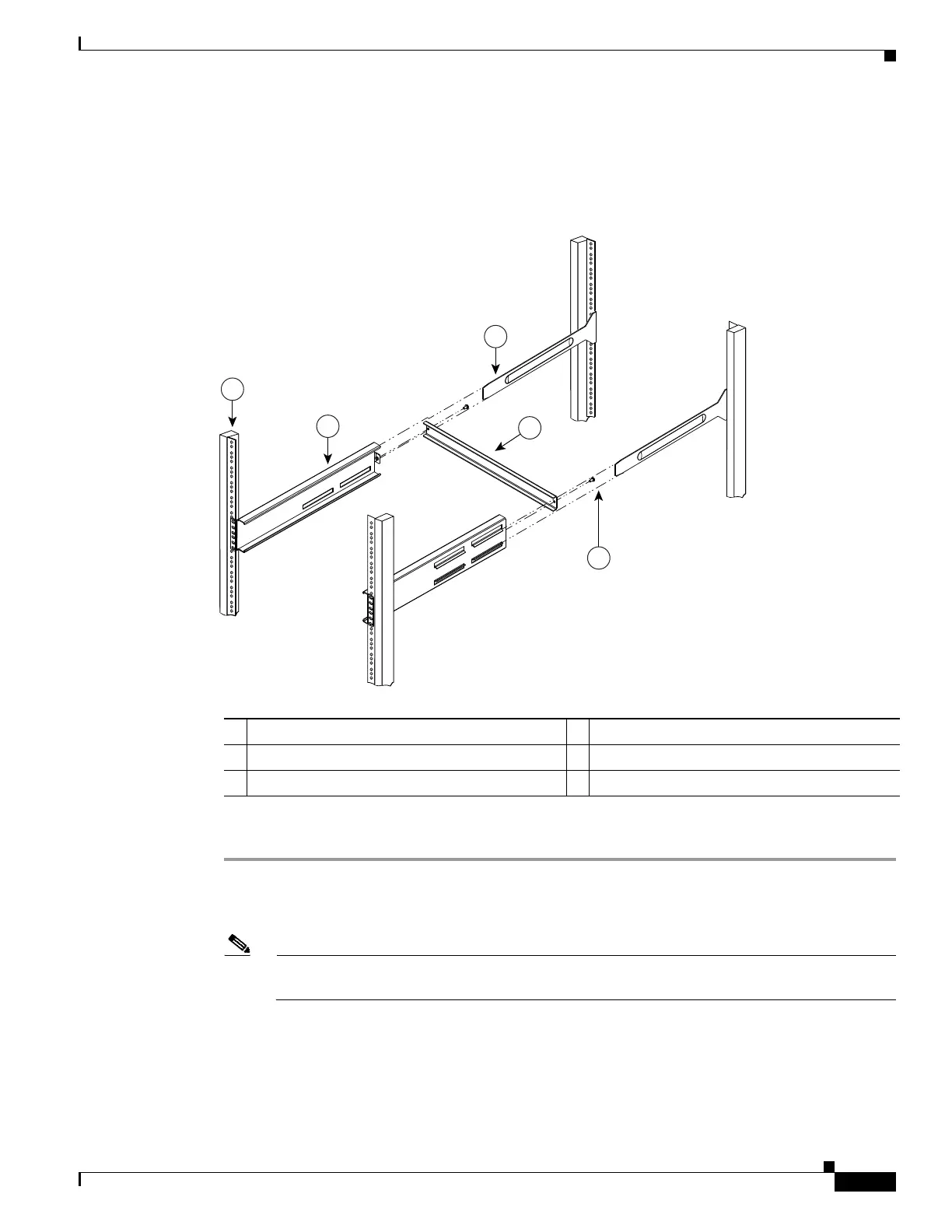

Figure 1-2 Installing the Shelf Bracket Kit into an EIA Rack
To install the shelf brackets in an EIA rack, follow these steps:
Step 1 Position a shelf bracket inside the rack-mounting rails as shown in Figure 1-2. Align the screw holes at
the front of the shelf bracket with the holes in the front rack-mounting rail. Then attach the shelf bracket
to the front rack-mounting rail using a minimum of four 12-24 or 10-24 screws.
Note The bottom hole of the shelf bracket should align with the bottom hole of a rack unit on the
rack-mounting rail (the hole immediately above the 1/2-in. spacing).
Step 2 Repeat with the other shelf bracket.
Step 3 Verify that the shelf brackets are at the same height (using the level or tape measure as desired).
1 Rack-mounting rail (4x) 4 Crossbar
2 Shelf bracket (2x) 5 10-32 screws (2x)
3 Slider rail (2)
1
2
3
5
4
105087
