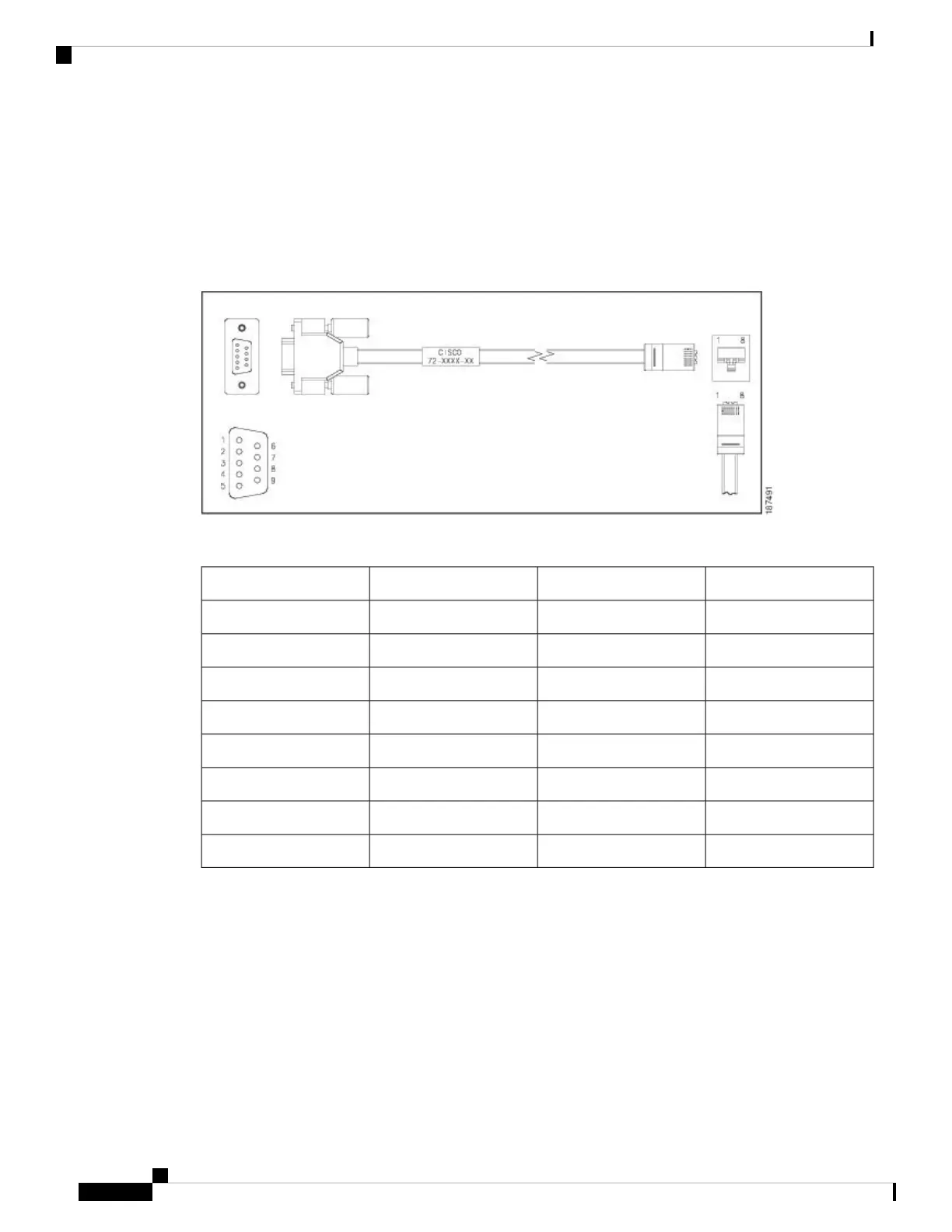

Console Cable
The console cable has an RJ-45 connector on one end and a DB9 connector on the other; this cable is used to
connect into the RS-232 console connection on a laptop.
Console Cable
Table 13: Console Cable Connector Pinouts
Signal NameP2, DB-9 PinsP1, P1-45 PinsSignal Name
CTS81RTS
DSR62DTR
ZXD23TXD
GND54GND
GND55GND
TXD36ZXD
DTR47DSR
RTS78CTS
Console Port
The console port is an asynchronous RS-232 serial port with an RJ-45 connector.
The table below lists the pinouts for the console port on the Cisco UCS 6454 Fabric Interconnect.
Cisco UCS 6400 Series Fabric Interconnect Hardware Installation Guide
46
Cable and Port Specifications
Console Cable
