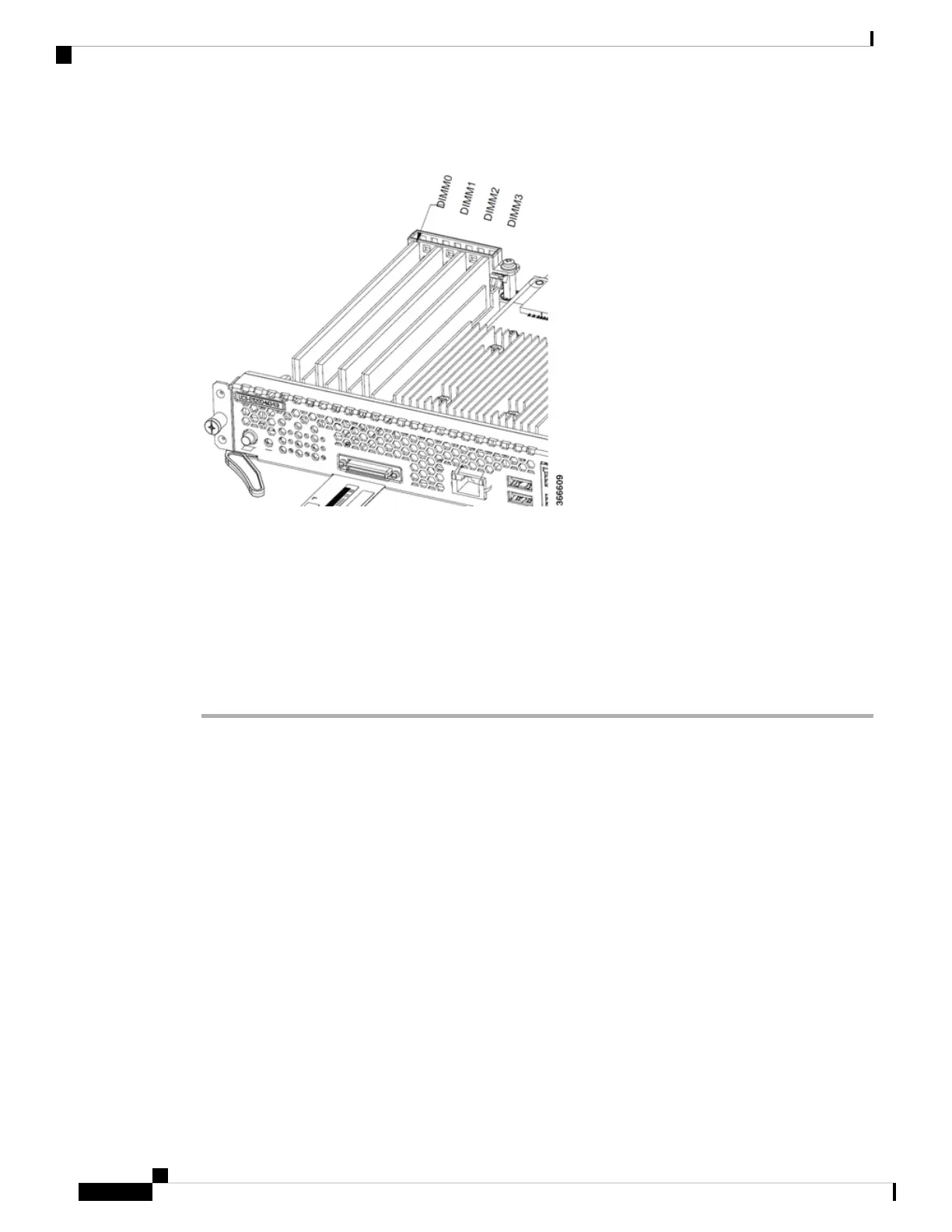

Figure 18: Memory DIMM Location in the Double-Wide E-Series Servers UCS-E180D-M3 and UCS-E1120D-M3
Removing the Memory DIMM
Before You Begin
Make sure that you connect the wrist-strap clip to an unpainted portion of the chassis frame to channel unwanted
ESD voltages to ground.
Procedure
Procedure
Step 1 Turn off power to the router.
Alternatively, the Cisco 3900 ISR G2 and the Cisco ISR 4000 series support OIR. See the Online
Insertion and Removal—E-Series Servers, on page 34.
Note
Step 2 Locate the DIMM on the E-Series Server. See the Memory DIMM Location, on page 41.
Step 3 Pull the latches away from the DIMM at both ends to lift the DIMM slightly.
Take care not to dislodge the battery that is adjacent to the DIMM connectors.
Caution
Step 4 Pull the DIMM out of the socket as shown in the following figure.
