Chapter 2 Printer Operation
Menu Setup Mode (p.27)
Normal Operating Mode
When the power is turned on, the printer enters normal operating mode.

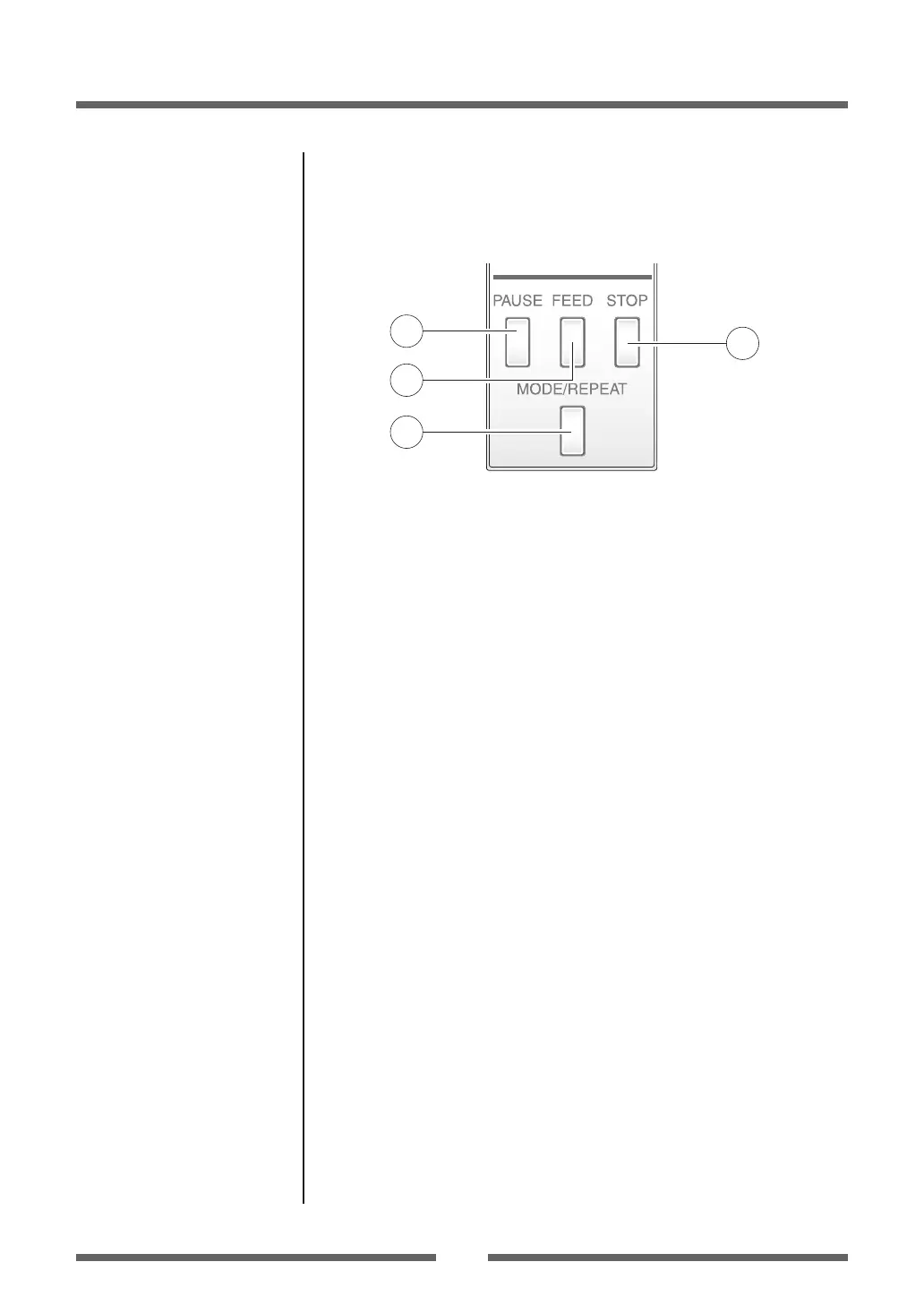

The control keys activate the following functions.
1
2
4
3
1
PAUSE key: Temporarily pauses printing
• When this key is pushed once, the PRINT LED turns o and the
printer temporarily pauses.
• When it is pushed during printing, the printer pauses after the label
currently being printed is issued. Pressing the key a second time
restarts printing and the remaining number of designated labels are
printed.
2
FEED key: Feeds media
• Pressing this key feeds media to the print start position. The distance
it is fed is determined by automatically detecting the front end of
the media when using label media, and when continuous media has
been designated, a xed quantity is fed, then feeding stops.
• When the TEAR OFF setting is eective, feeding stops when the
media has been fed to the TEAR OFF location.
• When the optional cutter unit is installed, the media is fed to the cut
position then it is cut.
• If the optional peeler unit is installed, the media is fed to the peeling
location. When the media is pausing at the peeling position, feeding
does not occur, even if the FEED key is pushed.
3
STOP key: It stops printing and cancels the alarm
• Pushing this key once during printing puts the printer in pause
mode after the label is issued. It is possible to cancel 1 batch of label
issuing data by pressing the STOP key for 4 seconds or longer in
pause status. (The PRINT LED ashes at high speed during cancel.)
4
MODE/REPEAT key: It reprints the last label when pressed
for 4 seconds.
• Pressing this key reprints the last label in PRINT status (when the
PRINT LED is lit) The last label issued depends on the selection of
the ”MODE/REPEAT key” menu.
To Next Page
