2

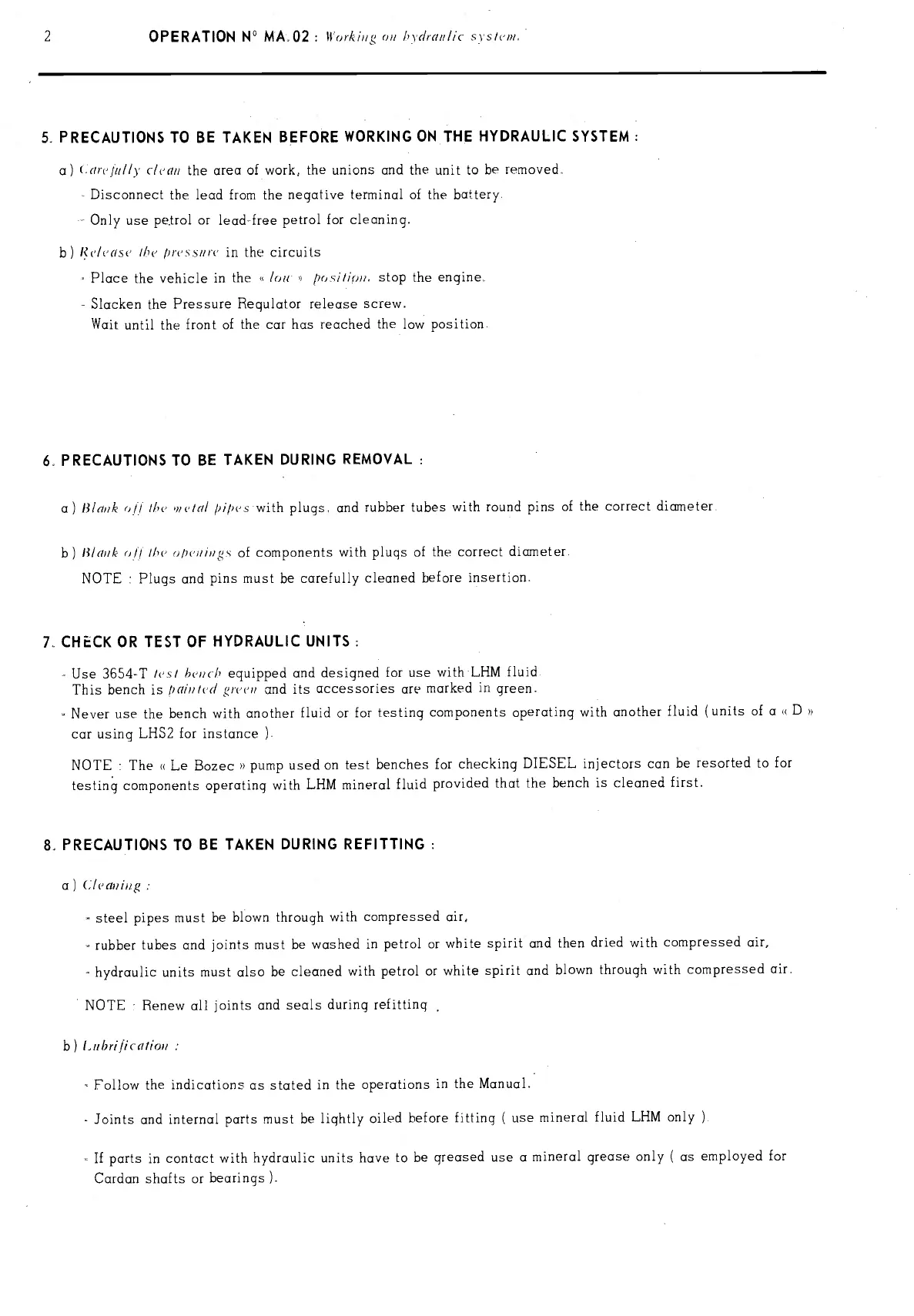

OPERATION
N° MA,
02:
ork/u
on h'Irau/ic
SVS1(fl/
5.
PRECAUTIONS TO BE TAKEN BEFORE
WORKING ON THE
HYDRAULIC SYSTEM:
a)
(arfi
ju/fy
cincin
the area of work,
the
unions
and the
unit to
be removed.
Disconnect the lead from
the negative
terminal
of
the battery.
Only
use petrol or
lead-free
petrol
for
cleaning.
b
)
R('/('(1S(
t/fl /)r('ssu
?('
in
the circuits
Place the vehicie
in
the
«
bo
«
osi/ipu. stop
the engine.
-
Slacken the Pressure
Regulator
release screw.
Wait
until
the front of
the car hos
reached the
low
position.
6.
PRECAUTIONS
TO
BE
TAKEN DURING
REMOVAL
a)
13/ank o// //
,
tci/
pi/s
with
plugs
and rubber tubes with round
pins
of
the
correct
diameter.
b)
Blank Off Ib( OP('///)/CS
of
components
with pluqs of
the correct
diameter.
NOTE Plugs
and pins must be
carefully
cleaned before
insertion.
7,
CHECK OR
TEST
OF
HYDRAULIC UNITS:
Use 3654T
Insi hc'ocb equipped
and designed for
use
with
LHM
fluid.
This bench is
pciu,,t('d /r((O/
and its
accessories
are marked
in
green.
Never use
the
bench with another fluid or
for testing
components operating
with
another fluid (units
of a
«
D
»
car
using
LHS2
for
instance
).
NOTE The
«
Le
Bozec
»
pump used on
test
benches
for checking
DIESEL
injectors
can
be
resorted to
for
testinq components
operating
with
LHM mineral fluid
provided
that
the bench is
cleaned first.
8.
PRECAUTIONS
TO BE
TAKEN DURING
REFITTING
a
)
(;lcainng
steel
pipes
must be blown
through
with compressed
air,
-'
rubber tubes
and joints
must
be washed in
petrol or
white
spirit and
then
dried
with
compressed
air,
hydraulic units must
also be cleaned
with petrol or
white
spirit
and blown through
with
compressed
air.
NOTE Renew all
joints
and seals during
refittinq
b)
Lubrification
Follow
the indications
as
stated
in
the operations
in the Manual.
Joints
and
internal
parts
most
be
liqhtly oiled
hefore fitting
(
use
mineral fluid
LHM
anly
If
parts
in contact
with
hydraulic units
have
to
be
greased use
a
mineral
grease
only
(
as employed
for
Cardan shafts
or
bearings).
