Supplement 818.1
CORR
._]
..,
.-.
fy,
...
...
...
--.
_..
OPERATION N
MÅ. 142-00
/ur!//C>
((HL!
L»(
LIC'!
Il il//in' 0/
fbi
Op. MÅ. 142-00
3
«
Cub,,
/
/0

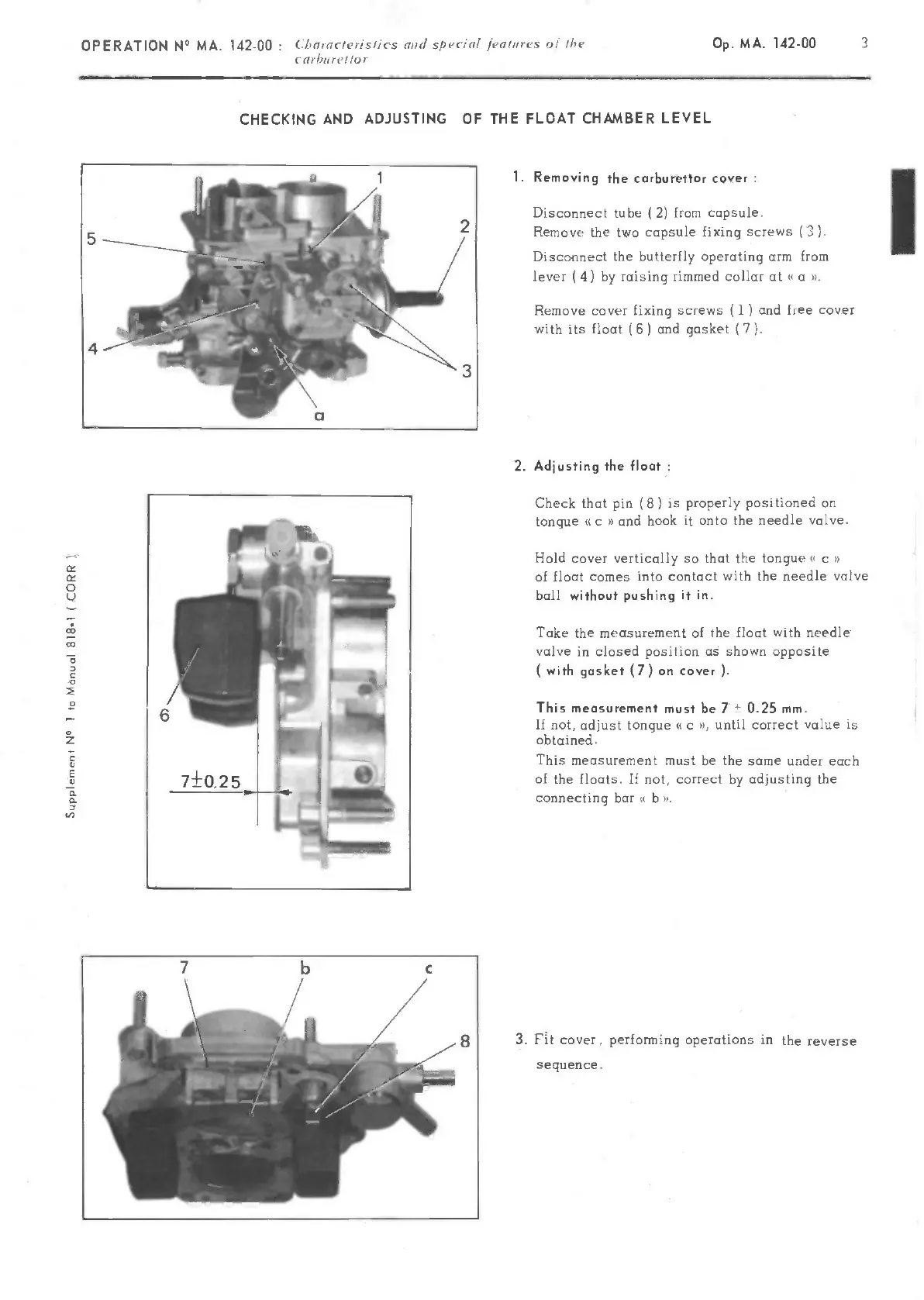

CHECKING
AND
ADJUSTING
OF
THE FLOAT
CHAMBER LEVEL
1.
Removing
the carburettor
cover
Disconnect
tube (2) from
capsule.
Remove the
two
capsule fixing
screws (3).
Discoinect
the butterfly operating arm
from
lever (4)
by raising
rimmed
collar at o
Remove
cover fixing
screws
(
1
)
and free
cover
with
its float (6)
and gosket (7).
2.
Adjusting the float
0
u
0
0
c
0
0
z
0
CI
E
1)
0-
0-
0
ln
Check that pm
(8)
is properly
positioned on
tongiie
,1
c
Iland
hook it onto the needle valve.
Hold cover vertically so
that the tongue
"
c
»
of float comes
into contact
with the
needle
va]ve
ball witbout
pushing
it in.
Take the
measurement of
the float with needle
volve
in closed position
aS
shown
opposite
(with gasket (7) on cover
This measurement
must be 7 0.25 mm.
If not,
ad just
tongue c until correct value
is
obtained.
This measurement must be the same
under each
of
the
floats. If not, correct
by adjusting the
connecting bar b.
3. Nt cover performing operations in
the reverse
seguence
-
