PROXIMA STX
Ice-Cream Cabinet
ENGLISH
35
8.

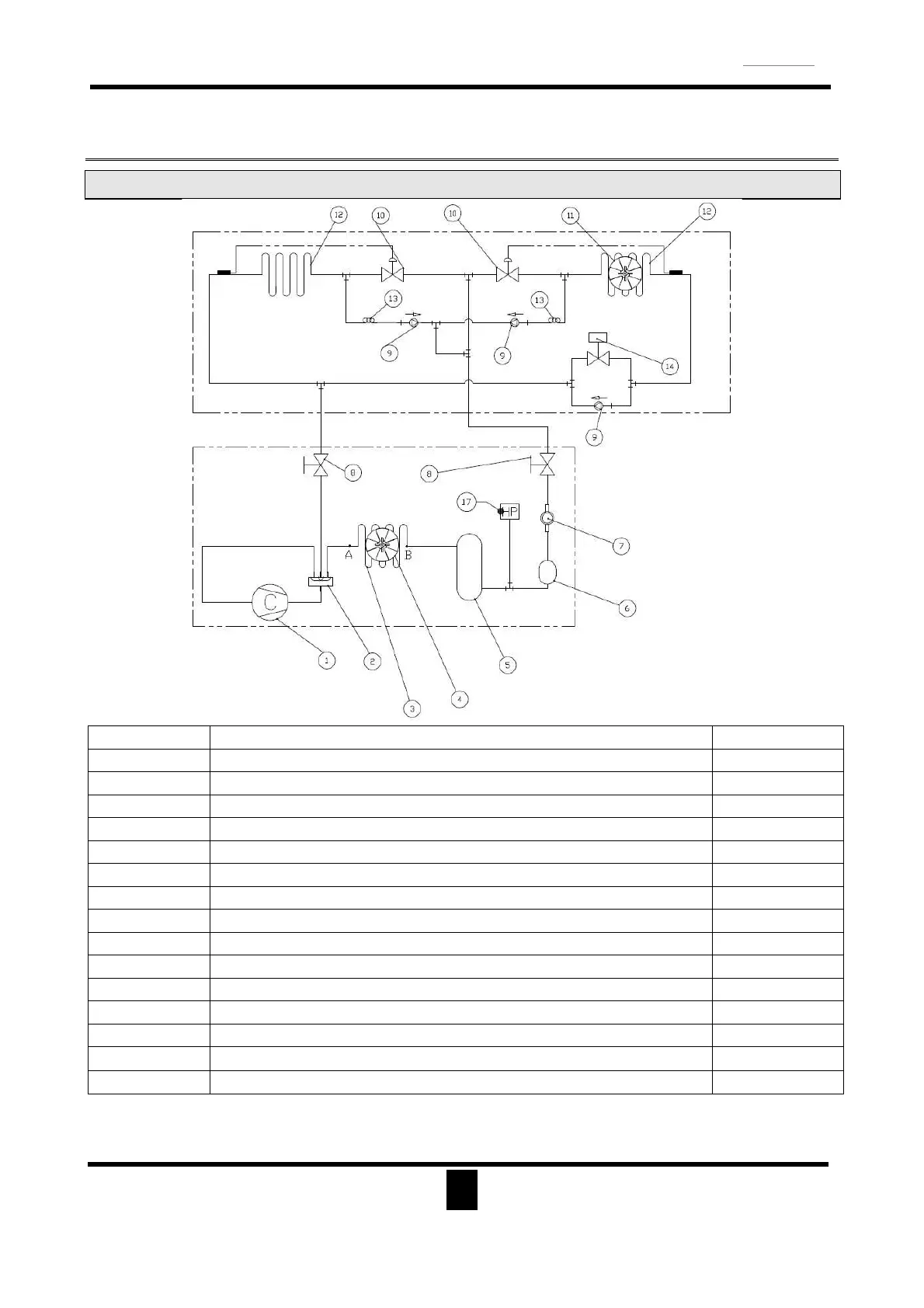

COOLING SYSTEM DIAGRAM
8.1
COOLING SYSTEM W/ DOUBLE INVERTED CYCLE DEFROST
POSITION DESCRIPTION QUANTITY
1 Semi-hermetic Compressor 1
2 4-way Defrost Valve 1
3 Condenser (double fan) 1
4 Condenser Fan 2
5 Liquid Receiver 1
6 Filter 1
7 Liquid Glass 1
8 Manual Tap 2
9 Check Valve 3
10 Thermostatic Valve 2
11 Evaporator Fan 3-5
12 Evaporator 2
13 Capillary diam.6 x 600 2
14 Second Defrost Solenoid Valve 1
17 HP Pressure-stat 1
