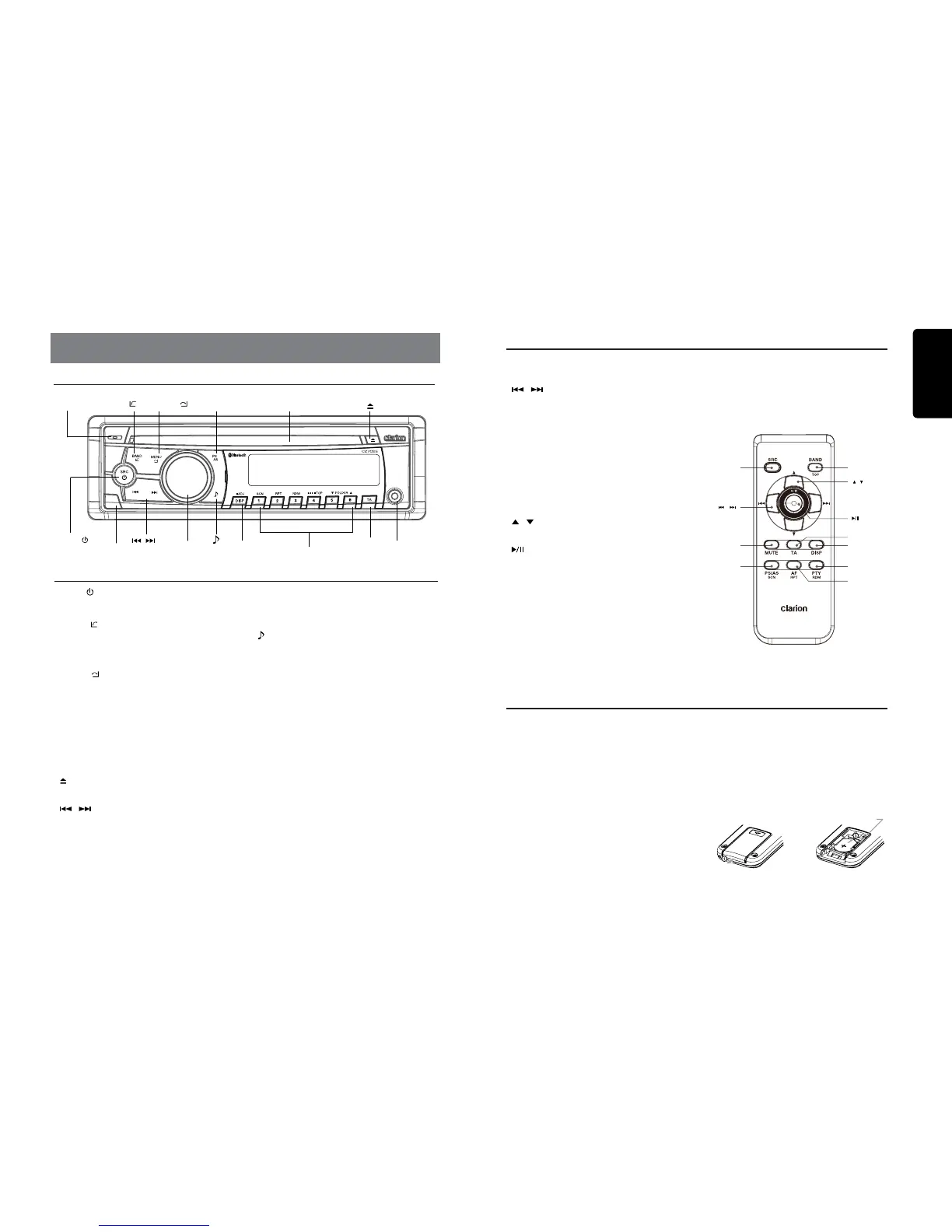

3. CONTROLS
Operational Panel
[ SRC / ] Button
• Power / Toggle the audio source
[BAND / ] Button
• RADIO/DAB mode – Select tuner band
• BT mode – Dial/Answer / Transfer call /
Redial (long press)
[MENU /
] Button
• MP3/WMA mode – Search function
• CD mode – No function
• RADIO mode – PTY select
• BT mode – Terminate call
• AUX mode – No function
• iPod mode – iPod menu
• USB mode – Search function
• DAB mode – PTY select
[
] Button
• Press to eject disc.
[
, ] Buttons
• Previous / next track
• Search (long press)
• Station up/down
[Open] Button
• Unlock the front panel.
[PS / AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
[
] Button
• Sound effect setting
[VOLUME] Knob
• Adjust volume level / Conrm (press)
[TA] Button
• Trafc announcement
[1~6] Buttons
• [1] Button: Scan play / Preset station 1.
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Top play (long
press) / Preset station 4.
• [5] Button: Previous folder / Preset station 5.
10 tracks down (long press).
• [6] Button: Next folder / Preset station 6.
10 tracks up (long press).
[DISP] Button
• Display switch
• System setup (long press)
[ MIC ] Hole
• Internal microphone
Names of Buttons
[ SRC / ]
[DISP]
[TA]
Disc Slot
AUX Jack
[MENU /
][BAND / ]
[ / ]
[1~6]
[ ]
[OPEN]
[VOLUME]
Remote Control (RCX002)
Notes of remote control using
Inserting the Battery
1. Slide remote control unit’s rear cover in
the direction shown.
2. Insert battery (CR2025) into insertion
guides with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into
place.
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has
not been used for a month or longer.
3. DO NOT store the remote control under direct
sunlight or in high temperature environment,
or it may not function properly.
4. Use “button shaped” lithium battery “CR2025”
(3V) only.
5. DO NOT subject battery to recharge,
disassemble, heat or dispose in re or water.
6. Inse rt the battery in proper direction
according to the (+) and (-) polarities.
7. Store the battery in a place where children
cannot reach to avoid the risk of accident.
Insertion guide
[PS/AS]
[SRC] Button
• Toggle the audio source
[
, ] Buttons
• Preset station up / down
• Previous / next track
• Search (long press)
[PS/AS/SCN] Button
• Scan play / Preset scan
• Auto memory store (long press)
[BAND/TOP] Button
• Select tuner band
• Top play (long press)
[
, ] Buttons
• Volume up / down
[
] Button
• Play / Pause
[TA] Button
• Trafc announcement
[DISP] Button
• Display switch
[PTY/RDM] Button
• Programme type
• Random play
[AF/RPT] Button
• Alternative frequency
• Repeat play
[MUTE] Button
• Mute the volume
[ , ]
[ ]
[DISP]
[ , ]
[MUTE]
[SRC]
[BAND/
TOP]
[TA]
[PTY/RDM]
[AF/RPT]
[PS/AS/
SCN]
[MIC]
