.-..-------"1

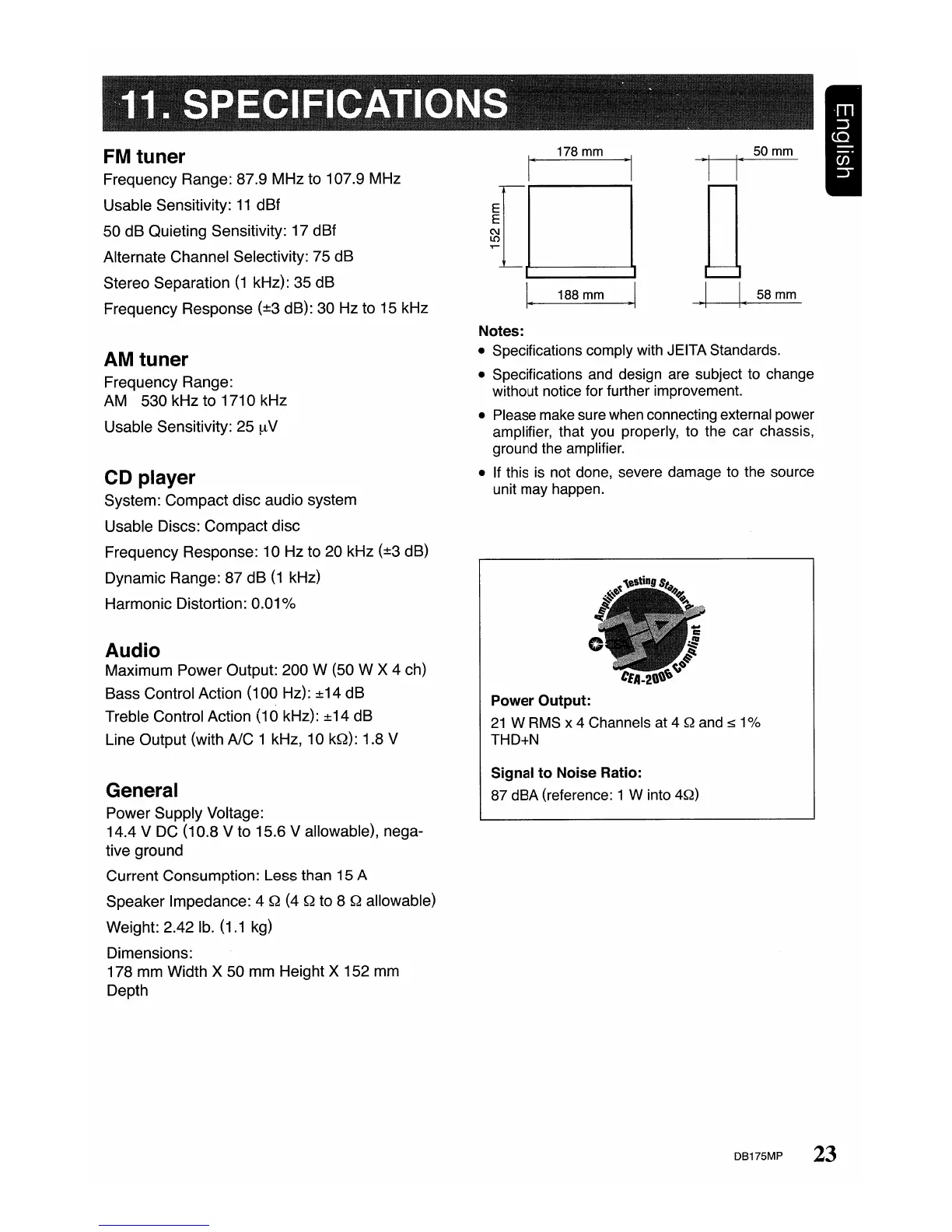

FM tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity:
11
dBf
50 dB Quieting Sensitivity: 17 dBf
Alternate Channel Selectivity: 75 dB
Stereo Separation
(1
kHz): 35 dB
Frequency Response (±3 dB): 30 Hz to 15 kHz
I'
I,
178mm
188mm
AM tuner
Frequency Range:
AM
530 kHz to
1710kHz
Usable Sensitivity: 25
~
V
CD player
System: Compact disc audio system
Usable Discs: Compact disc
Frequency Response:
10Hz
to 20 kHz (±3 dB)
Dynamic Range: 87 dB
(1
kHz)
Harmonic Distortion:
0.01
0
/0
Audio
Maximum Power Output: 200 W (50 W X 4 ch)
Bass Control Action (100 Hz): ±14 dB
Treble Control Action (10kHz): ±14 dB
Line Output (with
AlC
1 kHz, 10 kQ): 1.8 V
General
Power Supply Voltage:
14.4 V DC (10.8 V to 15.6 V allowable), nega-
tive ground
Current Consumption: Less than 15 A
Speaker Impedance: 4 Q (4 Q to 8
Q allowable)
Weight: 2.42 lb.
(1.1
kg)
Dimensions:
178 mm Width X 50 mm Height X 152 mm
Depth
Notes:
• Specifications comply with JEITA Standards.
• Specifications and design are subject to change
without notice for further improvement.
• Please make sure when connecting external power
amplifier, that you properly, to the car chassis,
ground the amplifier.
• If this is not done, severe damage to the source
unit may happen.
Power Output:
21
W RMS x 4 Channels at 4 Q and s 1
0
/0
THO+N
Signal to Noise Ratio:
87
dBA
(reference: 1 W into 4Q)
DB175MP 23
