Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction

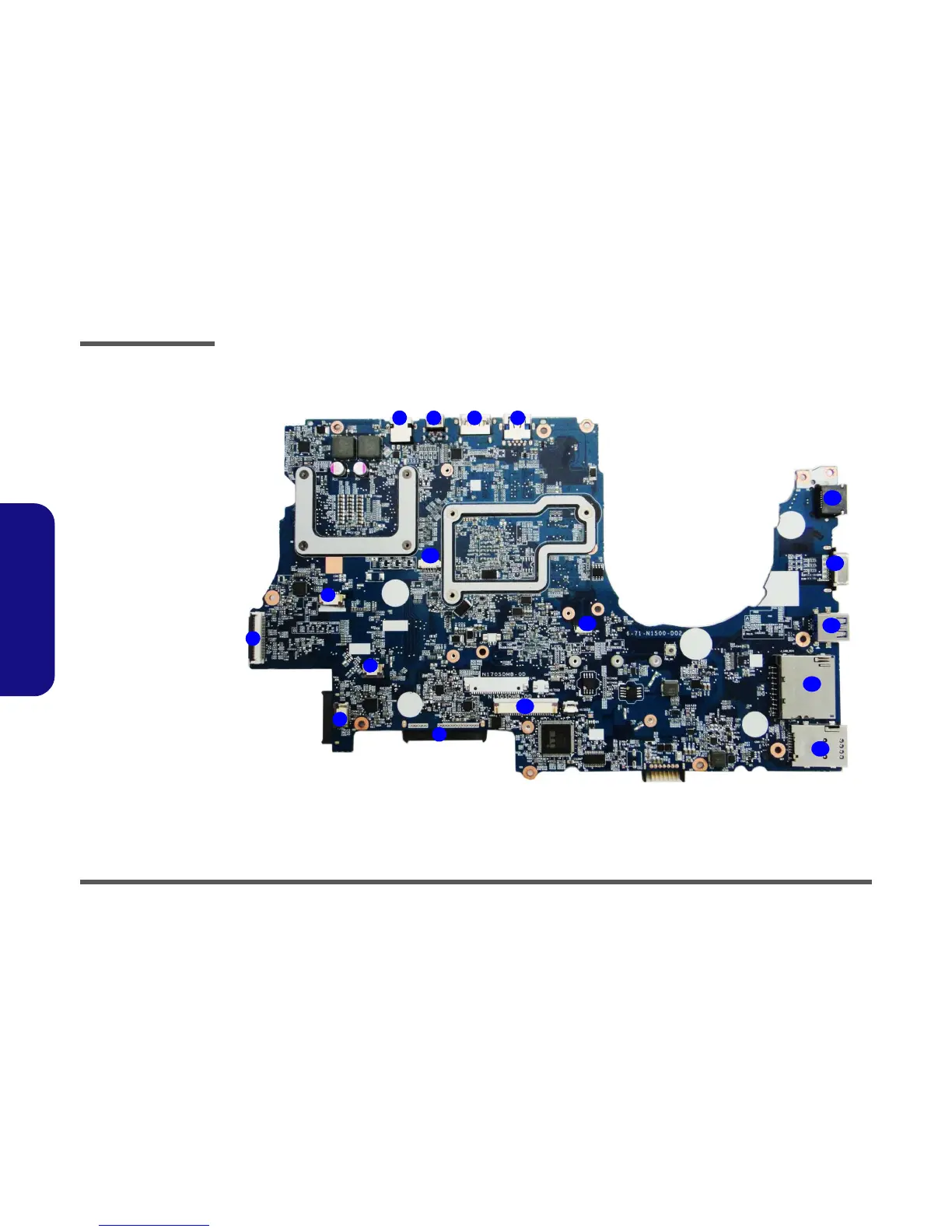

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. Mini Display Port
3. HDMI-Out Port
4. USB Port 3.0
Connector
5. Audio Board
Connector
6. Finger Print
Connector
7. TP Connector
8. LED Board
Connector
9. HDD Connector
10.Keyboard Cable
Connector
11. USIM Card
Reader
12.Multi-in-1 Card
Reader
13.USB Port 3.0
Connector
14.External Monitor
Port
15.RJ-45 LAN Jack
16.Power Switch
Board Connector
17.Speaker
Connector
10
11
9
7
8
6
5
1 3 4
13
2
14
12
15
16
17
