Clevo N150RD Service Manual

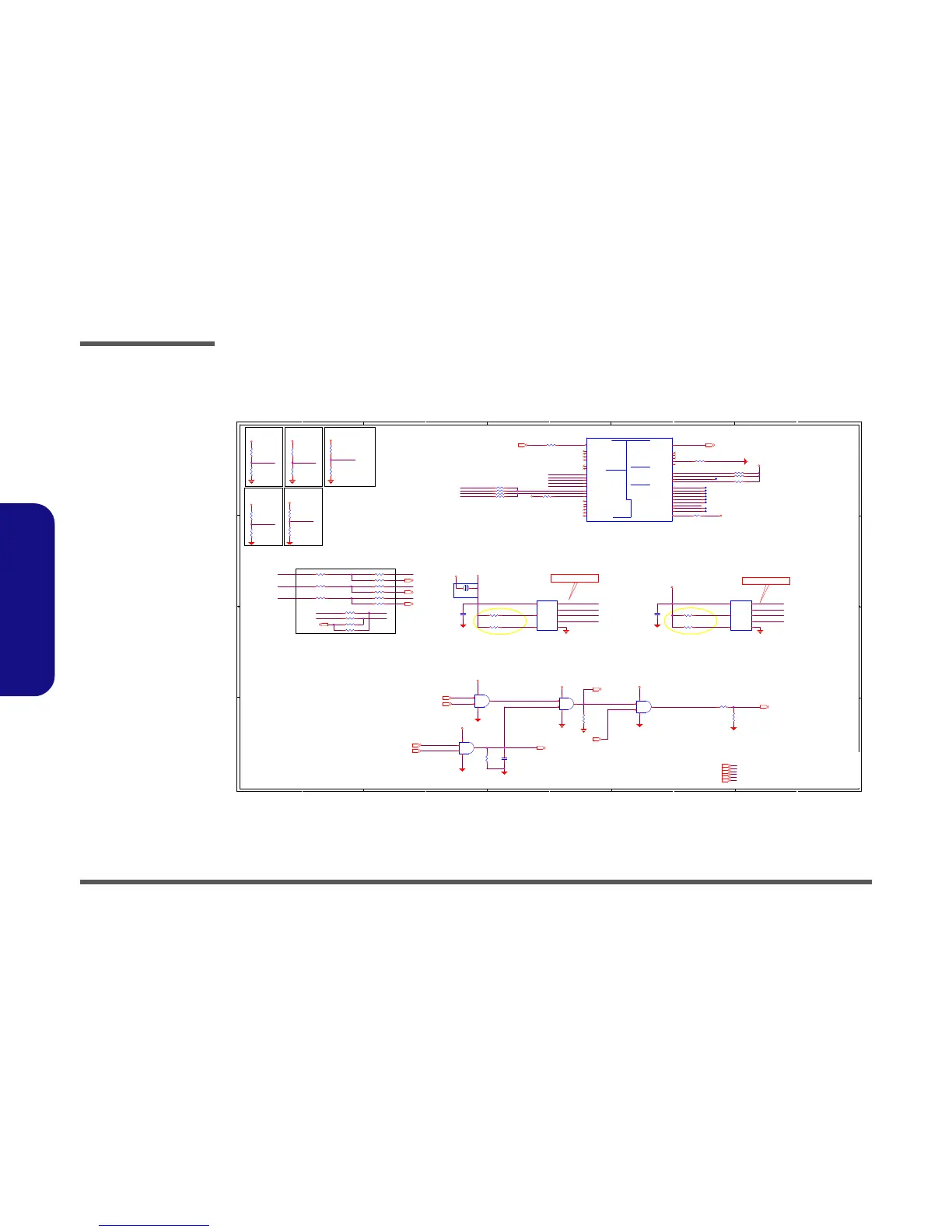

Schematic Diagrams
B - 24 PCH 1/9
B.Schematic Diagrams
PCH 1/9
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GPP_G_14_GSXDIN:
DMI AC COUPLING FULL VOLTAGE MODE
WHEN SAMPLED LOW
BOOT HALT
ENABLE:LOW
(INTERNAL WEAK PU)
CONSENT STRAP
ENABLE:LOW
(INTERNAL PU 15K-40K)
JTAG ODT
DISABLE:LOW
(INTERNAL WEAK PU)
PESONALITY STRAP
ENABLE:LOW
(INTERNAL PU 15K-40K)
ESPI FLASH SHARING MODE
MASTER ATTACHED FLASH SHARING:LOW
SLAVE ATTACEHD FLASH SHARING:HIGH
(INTERNAL WEAK PD)
RTC Wake UP
BIOS+ME ROM 8MB
SPI_* = 1"~6.5"
RTC Wake UP
SPI_* = 1"~6.5"
All Close FLASH ROM
6-04-02564-A75
DEFAULT SHORT
D02 0728
D02 0728
SPI_SI_R
SPI_SO_R
SPI_CS_0#
SPI_SCLK_R
SPI_CS_1#
SPI_CS2#
GPP_H_12
SPI_IO2
SPI_IO3
SPI_WP#
SPI_WP1#
SPI_HOLD1#
SPI_HOLD#
SML4ALERT#
SML4CLK
SML3CLK
SML3DATA
SML3ALERT#
SML2DATA
SML2CLK
SPI_SI_R
SPI_IO2
SPI_SO_R
SPI_IO3
GPP_H_12
SPI_WP#
SPI_HOLD#
SPI_WP1#
SPI_HOLD1#
SPI_SI1
SPI_SO1
SPI_SI0
SPI_SO0
SPI_SCLK0 SPI_SCLK1
SPI_SI_R
SPI_SO_R
SPI_SCLK_R
SPI_CS0#
SPI_CS1#
SPI_CS_0#
SPI_CS_1#
SPI_SO1
SPI_SI1
SPI_SCLK1
SPI_CS1#
SPI_SO0
SPI_SI0
SPI_SCLK0
SPI_CS0#
DELAY_PWRG D
ALL_SYS_PCH_PW ROK_EC
SML4DATA
EXTTS_SNI_DRV1_PCH
BT_RF_KILL_R_N
EXTTS_SNI_DRV0_PCH
TCH_PNL_INTR_N
VCC_RTC
SPI_3.3V
SPI_3.3V
SPI_3.3V
SPI_3.3V
3.3VA
SPI_3.3V
SPI_3.3V
SPI_3.3V
VDD3
VDD3 VDD3
VDD3
VDD3
3.3VS
3.3VA[5,24,25,26,27,29,30,38,40,50]
3.3VS[9,10,11,12,13,14,25,26,27,28,29,30,32,33,35,36,37,38,39,40,43,45,47,49]
5VS[13,14,25,32,36,37,38,40,49]
PLT_RST# [27]
HSPI_MSI [39]
HSPI_MSO [39]
HSPI_SCLK [39]
HSPI_CE#[39]
SUSB#[12,26,34,36,39,40,43]
PM_PCH_PWROK [26]
PM_PWROK[39]
SYS_PWRO K [26]
VCCIO_PWRGD[43]
ALL_SYS_PWRG D [5,12,3 9,45,47]
VCORE_PG[45]
VCCGT_PG[47]
VCC_RTC[26,29]
VDD3[5,26,29,30,32,35,36,38,39,40,41,43,44,52]
SPI_3.3V[29]
LAN_WAKEUP#[35,39]
Title
Size Document Number Rev
Date: Sheet
of
6-71-N15R0-D02A
2.0A
[23] PCH 1/12-SPI,SMBUS
Custom
23 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-N15R0-D02A
2.0A
[23] PCH 1/12-SPI,SMBUS
Custom
23 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
Title
Size Document Number Rev
Date: Sheet
of
6-71-N15R0-D02A
2.0A
[23] PCH 1/12-SPI,SMBUS
Custom
23 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
R282 0_04
R1602
*1K_04
R1595 *1K_04
R287 0_04
R1611 1K_04
U121
GD25B64CSIGR
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
R1603
*4.7K_04
R1488 33_04
U122
*GD25B64CSIGR
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
R285 33_04
U38C
74LVC08APW
9
10
8
147
R1931 10K_04
R1604
*4.7K_04
R1627 *1K_04
R280 0_04
U38A
74LVC08APW
1
2
3
147
R294 33_04
R1605
*20K_04
C1292
0.1u_10V_X5R_04
R276 *0_04
R1492 33_04
R597 1K_04
R1606
*4.7K_04
R486 *33_04
R625 *33_04
R1607
*20K_04
R517 0_04
R598
*10K_04
R1926 8.2K_04
R595
10K_04
R281 *0_04
R1930
*0_04
R1598
*1K_04
R1555 330K_04
R1622 *1K_04
SPT-H_PCH
REV = 1.31 OF 12
U138A
HM170
INTRUDER#
BE11
GPP_H10/SML2CLK
BD34
GPP_H11/SML2DATA
AW35
GPP_H12/SML2ALERT#
BD35
GPP_H13/SML3CLK
BC35
GPP_H14/SML3DATA
BA35
GPP_H15/SML3ALERT#
BB36
GPP_H16/SML4CLK
BD39
GPP_H17/SML4DATA
BE34
GPP_H18/SML4ALERT#
BC36
GPP_B4/CPU_GP3
BD24
GPP_B3/CPU_GP2
BC23
GPP_E7/CPU_GP1
AE44
GPP_E3/CPU_GP0
AF41
GPP_G14/GSXDIN
R42
GPP_G13/GSXSLOAD
R36
GPP_G12/GSXDOUT
R39
GPP_G16/GSXCLK
P43
GPP_B13/PLTRST#
BB27
GPP_D21/SPI1_IO2
AG44
GPP_D22/SPI1_IO3
AH43
GPP_D2/SPI1_MISO
AN38
GPP_D3/SPI1_MOSI
AN41
GPP_D0/SPI1_CS#
AL39
GPP_D1/SPI1_CLK
AN36
SPI0_CS2#
AT31
SPI0_IO3
BD30
SPI0_IO2
BC29
SPI0_CS1#
AW31
SPI0_CLK
BC31
SPI0_CS0#
BD31
SPI0_MISO
BE30
SPI0_MOSI
BB29
TP1
AN17
TP2
AR19
RSVD
AE17
RSVD
AF17
RSVD
AG14
RSVD
AG15
GPP_A11/PME#
BD17
GPP_G15/GSXSRESET#
R41
R1618 1K_04
R1556 *33_04
R513
10K_04
R1599
*1K_04
U38D
74LVC08APW
12
13
11
147
R291 0_04
R328 *33_04
C741
*0.1u_10V_X5R_04
R1600
*20K_04
R1557 *33_04
C1293
*0.1u_10V_X5R_04
PJ87
*OPEN_1mm
1 2
R1746 8.2K_04
R1601
*4.7K_04
U38B
74LVC08APW
4
5
6
147
R1747 *2.2K_04
R518 33_04
Sheet 23 of 62
PCH 1/9
