Clevo N150RD Service Manual

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PUT CLOSE
TO PWM
BOTTOM PAD
CONNECT TO
GND Through
5 VIAs
VCCGT
IMAX SET
AT 20A
PUT CLOSE
TO VCORE
HOT SPOT
6X6 52PIN QFN
Work F=
430Khz
,QWHO6.</$.(,09332:(5&.73+$6(
1+0
CONFIGURATION
DEFAULT SHORT
VCCGT VBOOT
SET AT 0V,
SVID
ADDRESS=01h
DEFAULT SHORT
CSP12
VCCGT_IMAX
VCCGT_PROG
VCCGT_PROG
VCCGT_VBOOT/ADDR
VCCGT_IMAX
VCCGT
CSP12
VCCGT
VCCGT_VBOOT/ADDR
5V
VIN
5V3.3VS 1.0V_VCCST
1.0V_VCCST
5V
3.3VS
VCCGT
H_CPU_SVIDCLK [5,45]
H_CPU_SVIDALRT# [5,45]
H_CPU_SVIDDAT [5,45]
H_PROCHOT#[5,45,52]
PWM12 [48]
VCCGT [8,47,48]
VCCGT_PG[23] DRVON2 [48]
VCCGT_SENSE[8]
VSSGT_SENSE[8]
CSP12[48]
5V[32,34,36,40,42,44,45,46, 48,50,51]
VIN[12,37,39,40,41,42,43,45,46, 48,49,51,52]
1.0V_VCCST[5,7,25,26,43,45]
3.3VS[9,10,11,12,13,14,23,25,26, 27,28,29,30,32,33,35,36,37,38, 39,40,43,45,49]
VCCGT[8,47,48]
ALL_SYS_PWRGD[5,12,23,39,45]
Title
Size Document Number Rev
Date: Sheet
of
6-71-N15R0-D02A
2.0A
[47] VCCGT
Custom
47 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
6-7P-N15R9-003
Title
Size Document Number Rev
Date: Sheet of
6-71-N15R0-D02A
2.0A
[47] VCCGT
Custom
47 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
6-7P-N15R9-003
Title
Size Document Number Rev
Date: Sheet of
6-71-N15R0-D02A
2.0A
[47] VCCGT
Custom
47 62Tuesday, August 18, 2015
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
6-7P-N15R9-003
PR311
*100_04
PR315
0_04
PC306
1000p_50V_X7R_04
PR327
100_04
PJ82 1mm
1 2
PR349
9.31K_1%_04
RT10
100k_1%_04_NTC
12
PC298
470p_50V_X7R_04
PC308
1000p_50V_X7R_04
PR330
100_04
PR434 20K_1%_04
PR318
47.5_1%_04
PR323 2K _1%_04
PR338 10_04
PJ81
*CV-40mil
1 2
PR382
2.2_06
PJ83
1mm
1 2
PR340
15.8K_1%_04
PR348
31.6K_1%_04
PC301
47p_50V_NPO_04
PR310
100K_1%_04
PR325
4.02K_1%_04
PR337
30.1K_1%_04
PR344
*1K_04
PC297
0.1u_16V_X7R_04
PR347
4.12K_1%_04
PR319
5.1K_1%_04
PR416 2K_1%_04
PC294
4.7u_6.3V_X5R_06
PR433
49.9K_1%_04
PR313
*45.3_1%_04
PR320 1K_1% _04
PC295
0.01u_50V_X7R_04
PJ84
*CV-40mil
12
PR316
49.9_1%_04
PC309
0.1u_16V_X7R_04
PR334
150K_1%_04
PC304
4700p_50V_X7R_04
PR312
*45.3_1%_04
PR342 2K _1%_04
PR328
0_04
PR333
36K_1%_04
PR309
10K_1%_04
PC293
1u_6.3V_X5R_04
PC296
*0.1u_16V_X7R_04
PR317 *100K_1%_04
PR345 100_04
RT9
100k_1%_04_NTC
1 2
PR431 2K _1%_04
PR314
10_04
PR329 1K_1% _04
PC303
1000p_50V_X7R_04
PR332
41.2K_1%_04
PR336
8.06K_1%_04
PR322
0_04
PR324
13K_1%_04
PC300
0.033u_16V_X7R_04
VCORE PORTION
SA PORTION
PU23
NCP81203PMNTXG
CSP2
41
ROSC
8
VCC
7
FB
49
VRDY
6
SDIO
3
SCLK
5
COMP
48
VSP
51
PWM2
33
PWM1
34
CSP1
39
DIFF
50
VSN
52
TSENSE
37
CSP3
43
PWM3
32
CSP1A
25
PWM1A
30
CSN3
42
CSN1
38
CSN2
40
CSN1A
26
ALERT#
4
VRHOT
12
IOUT
1
IOUTA
13
DRVON
35
EPAD
53
VRMP
9
EN
2
VSPA
15
DIFFA
16
VSNA
14
COMPA
18
FBA
17
CSSUM
45
CSCOMP
47
ILIM
46
CSREF
44
CSSUMA
21
CSCOMPA
19
ILIMA
20
VBOOTA/ADDRA
27
TSENSEA
11
CSREFA
22
CSN2A
24
CSP2A
23
PWM2A
31
PH/FDm/FDa/SR/DDR
10
VBOOT/ADDR
28
PSYS
29
ICCMAX
36
PC299
2200p_50V_X7R_04
PC305
*220p_50V_NPO_04
PR308
1K_1%_04
PC307
470p_50V_X7R_04
PR331 66. 5K_1%_06

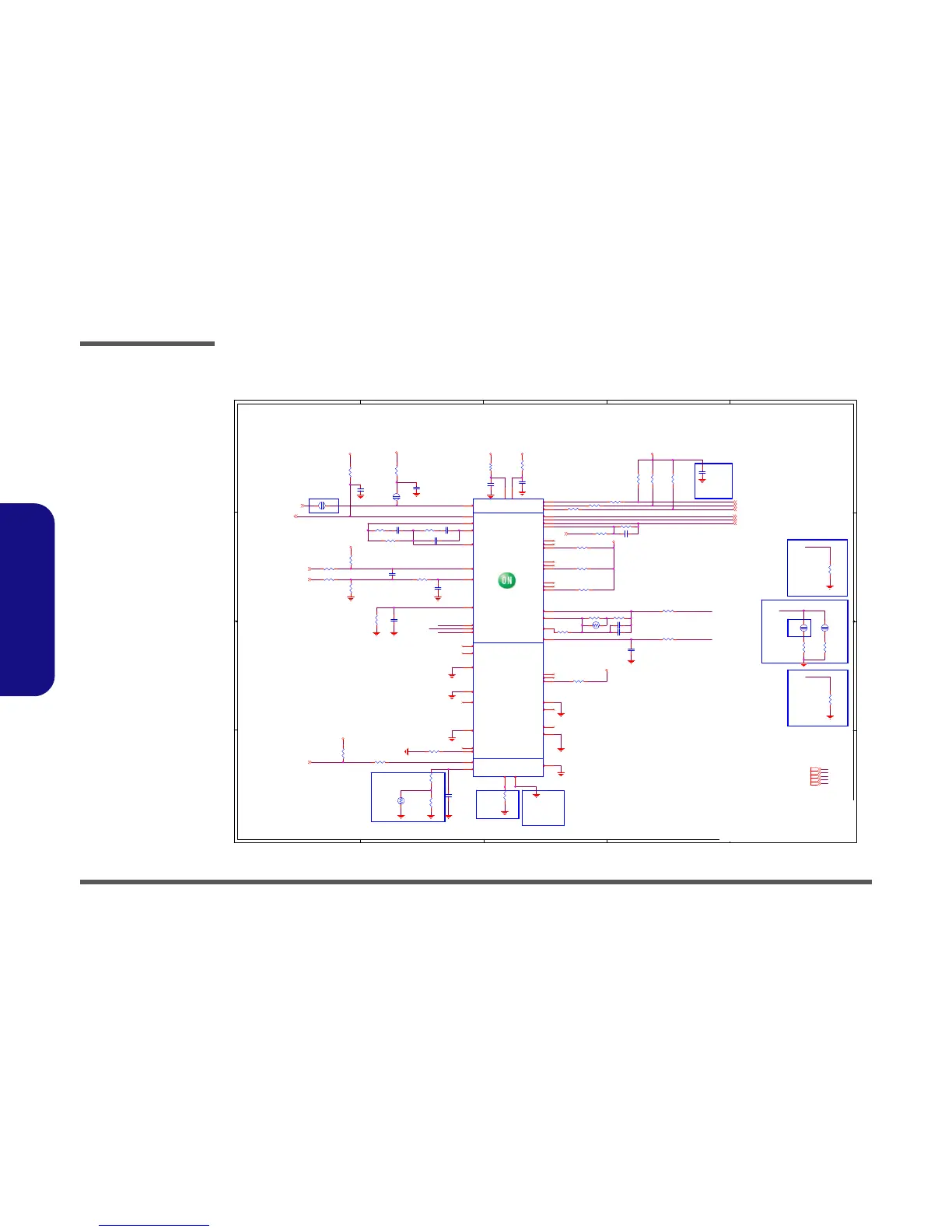

Sheet 47 of 62
VCCGT
Schematic Diagrams
B - 48 VCCGT
B.Schematic Diagrams
VCCGT
