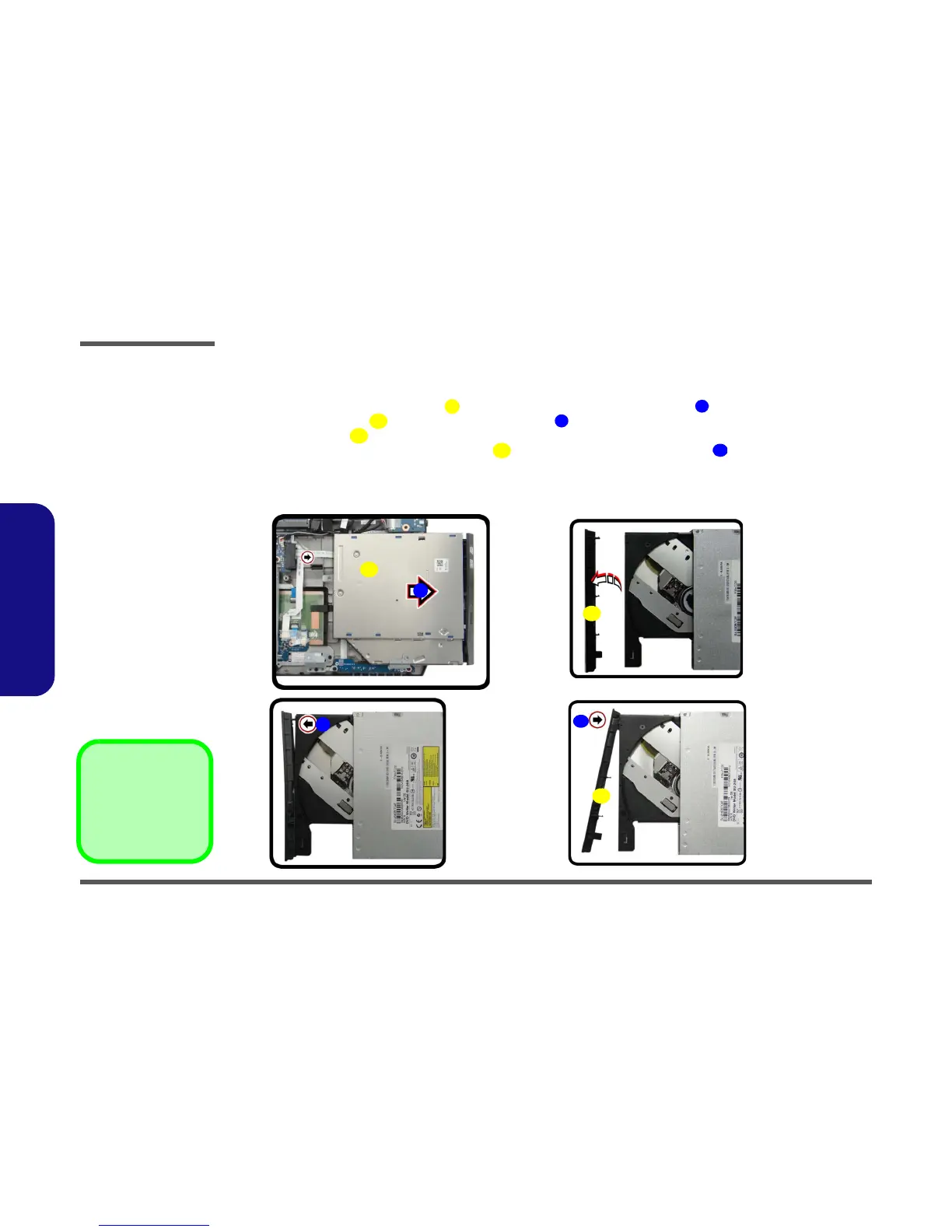

Figure 6
Optical Device
Removal
a. Push the optical device
out off the computer.
b. Pry the bezel off the opti-
cal device.
c. Separate the bezel and
optical device
d. Install the front bezel.
1. Turn off the computer, remove the battery (page 2 - 5), and bottom case (page 2 - 6).
2. Carefully push out the optical device out of the bay in the direction of the arrow (Figure 6a
).
3. Carefully pry the bezel off the optical device at point (Figure 6b
).
4. Separate the bezel and the optical device (Figure 6d).
5. Reverse the process to attach the front bezel with the new optical device at point (Figure 6d).
6. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up). Replace the bottom cover and tighten the screws.
7. Restart the computer to allow it to automatically detect the new device.
