Clevo W650SH User Manual

Disassembly
2 - 6 Removing the Keyboard
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over, remove the battery (page 2 - 5).
2. Carefully press at point , from the bottom of the computer to unsnap the LED cover module (use the eject pin
tool to do this - Figure 2a)
3. Turn the computer over, remove the unsnap LED cover module from the computer (Figure 2b).
4. Remove screws - from the keyboard (Figure 2c).
5. Lift the keyboard up, being careful not to bend the keyboard ribbon cable . Disconnect the keyboard ribbon
cable from the locking collar socket (Figure 2d).
6. Carefully lift the keyboard off the computer (Figure 2e).
1
2
3
7
8
9
10
b.
d.
a.
1
e.
10
7
2
6
c
45 3
9
8
9

2. LED Cover Module
10. Keyboard
•5 Screws

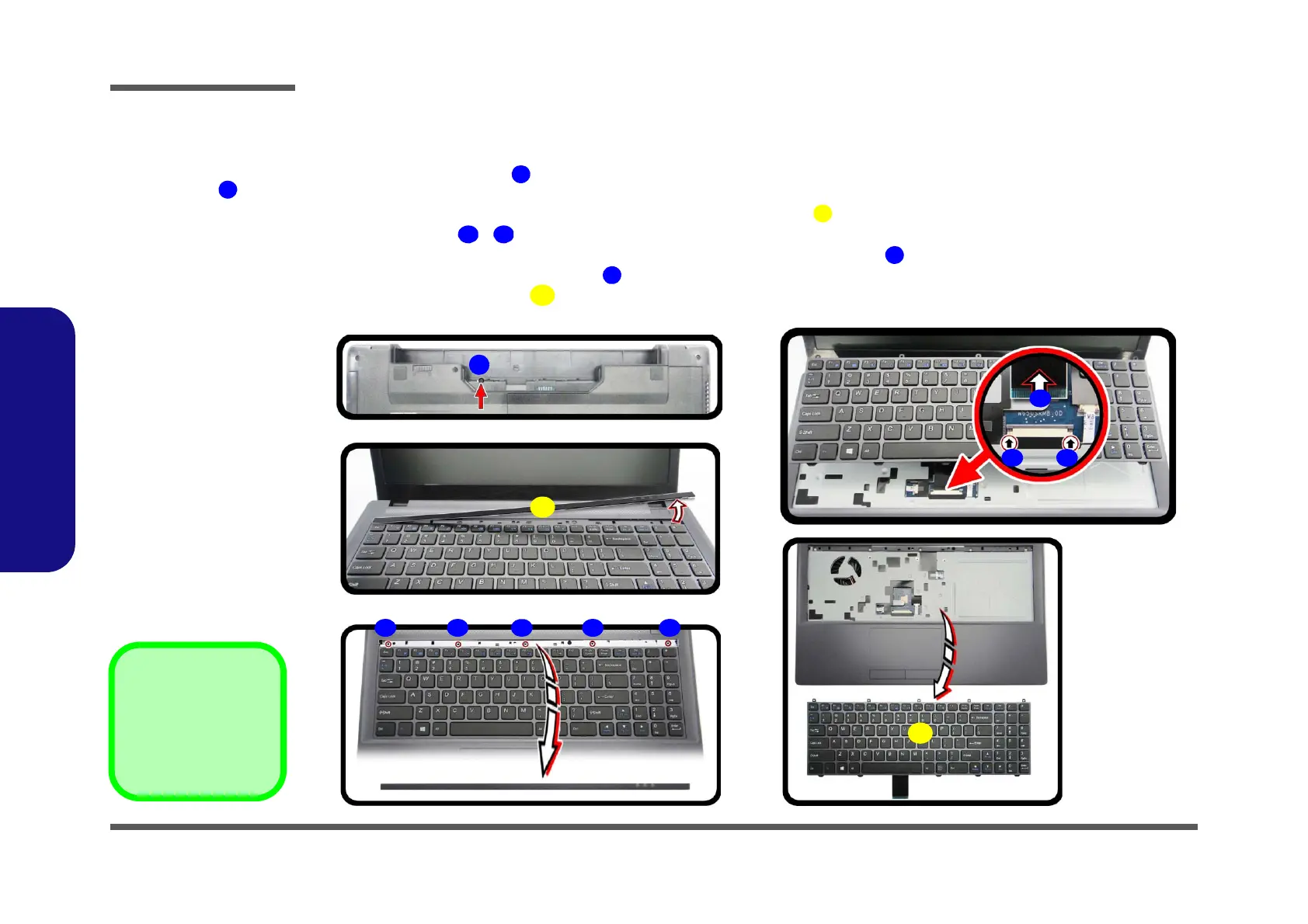

Figure 2
Keyboard Removal
a. Press at point to un-
snap LED cover module.
b. Remove the LED cover
module.
c. Remove the screws.
d. Carefully lift the key-
board up and disconnect
the ribbon cable.
e. Remove the keyboard.
1
