Clevo W650SH User Manual

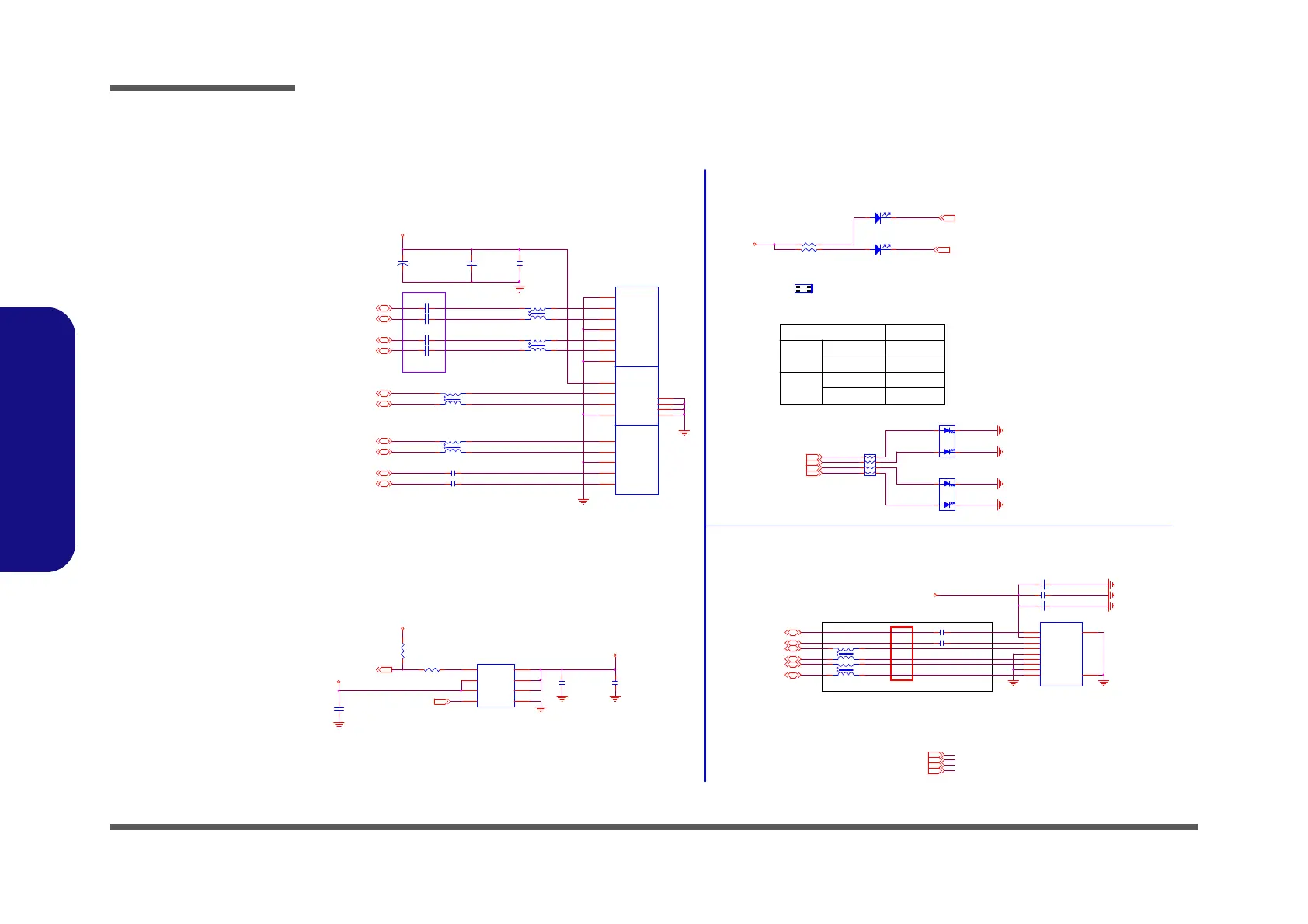

Schematic Diagrams
B - 32 eSATA/USB3.0, LED
B.Schematic Diagrams
eSATA/USB3.0, LED
L36
*WCM2012F2S-161T03-short
1
4
2
3
SATA_RXP2_C
SATA_RXN2_C
SATA_TXN2_C
SATA_TXP2_C
ESATA+USB3.0
100mils
3.3VS3,6,9,10,11,12,19,20,21,22,23,24,26,27,28,29,30,32,33,34,35,36,37,41
L35
*WCM2012F2S-161T03-short
1
4
2
3
LED
4
Âù¦â LED Foot Print
1
R340 220_04
2
R341 220_04
WLAN/BLUETOOTH LED
3
3.3VS
AIRPLAN_LED# 36
Airplane ON
Airplane OFF
WLAN LED
Windows 7
Windows 8
WLAN ON
WLAN OFF
«G
¤£«G
«G
¤£«G
100 MIL
C355 0.1u_10V_X7R_04
C401
*22u_6.3V_X5R_08
eSATA
USB2.0
USB3.0
JCOMBO1
EU147-167BRL
VBUS
P1
D-
P2
D+
P3
GND
P4
G1
GND1
G2
GND2
G3
GND3
G4
GND4
A+
P6
A-
P7
B-
P9
B+
P10
GND
P5
GND
P8
GND
P11
SSRX-
P12
SSRX+
P13
GND
P14
SSTX-
P15
SSTX+
P16
USB3.0 PORT(PORT3)
C360 0.01u_16V_X7R_04
C659
10u_10V_Y5V_08
USB3.0 PORT(PORT1)
L37 *WCM2012F2S-161T03-short
1
4
2
3
L33 *WCM2012F2S-161T03-short
1
4
2
3
C380 0.01u_16V_X7R_04
C386 0.01u_16V_X7R_04
R527 *0_04
C350 0.1u_10V_X7R_04
D19 RY-SP170YG34-5M
A C
R536
*10K_04
C367 0.01u_16V_X7R_04
U17
SY6288DCAC
VOUT1
6
VOUT3
8
VIN2
3
VIN1
2
VOUT2
7
GND
1
EN#
4
FLG#
5
USBVCC3.0_2
5V
3.3V
USBVCC3.0_2
USB_PN025
USBVCC0130
SATARXN220
SATATXN220
SATATXP220
USB_PP025
USB3_RX1_P25
USB3_TX1_N25
USB3_TX1_P25
SATARXP220
5V30,33,37,38,40
DD_ON#30,37
USB3_RX1_N25
3.3V2,3,12,17,20,24,25,27,28,29,33,35,37,38,40,42
+
C652
220u_6.3V_6.3*6.3*4.2
ÅܧóM-MSOP8¥]¸Ë
USB POWER SWITCH
D18
RY-SP170Y G34-5M
A C
Airplane mode
HDD LED
SATA_LED# 20
C394
0.1u_10V_X7R_04
C395
*0.1u_10V_X7R_04
SG
Y
D17
RY-SP155HYYG4-1
1
3
2
4
SG
Y
D16
RY-SP155HYYG4-1
1
3
2
4
C400
0.1u_10V_X7R_04
Gen3
RN9
220_8P4R_04
1
2
3
4 5
6
7
8
LED_BAT_CHG36
LED_BAT_FULL36
LED_PWR36
LED_ACIN36
6-21-B4X40-116
Diff.
trace
90ohm
CLOSE TO CONNECTOR
L52
*WCM2012F2S-161T03-short
1
4
2
3
Standard-A
J_USB1
Ni
VBUS
1
D-
2
D+
3
GND_D
7
SSRX-
5
SSRX+
6
GND
4
SSTX-
8
SSTX+
9
SHIELD
GND1
SHIELD
GND2
C499 0.1u_10V_X7R_04
L51
*WCM2012F2S-161T03-short
1
4
2
3
C492 22u_6.3V_X5R_08
C496 0.1u_10V_X7R_04
GND
GNDGND
USB3_RX2_N25
USBVCC01
GND
GND
USB3_TX2_P25
USB3_TX2_N25
USB3_RX2_P25
C493 0.1u_10V_X7R_04
USB_PP1_R30
USB_PN1_R30
6-20-B4Z20-109
POWER ON LED
BAT LED
C494 *22u_6.3V_X5R_08
50 MIL
USB_OC#0125,30
Sheet 31 of 46
eSATA/USB3.0,
LED
