Clevo W650SH User Manual

R261 0_04
R252 0_06
PIN29
LDO Mode
ENSWREG
SD_CLK/MS_D3
The trace length from Lx to Pin 48 (REGOUT) and
from Cout1, Cout2 to Lx must be within 200 m ils.
Please r efer to RTL8411 Layout Guide for m ore detail.
RTL8411 (SWR mode)
60mil
C419 & C424 capacitors must be close to pin side
60mil
Close to PIN13
W650SR
PIN3
Near Cardreader CONN
VCC_CARD
DVDD33 rise time must be
controlled between 1mS and 100mS
meet falling time
<1ms
PIN11 PIN12
Close to PIN12
PIN58PIN39
DVDD33 DVDD33 VDD 10
Switching Regulator close to PIN33
(>20mil)
(>20mil)
VDD10
PIN63
FOR S5 WAKE UP O N LAN
TO SB PCH WAKE#.
TO EC8518 PIN123 PME#.
ISOLATEB
PIN64
XTA L2
Crystal 8045 & 3225 Co-lay
XTA L 1
The trace length from Cin1,
Cin2 to Pin 46, 47 (VDDREG)
mus t be within 200 mils.
Please refer to RTL8411 Layout
Guide for mor e detail.
LAN_MDIP2
VDD10
LAN_MDIN 2
DVDD33
LAN_MDIN 3
LAN_MDIP3
SWR Mode
RSET/AVDD
EVDD10 DVDD33 VDD10 XTAL1 XTAL2
LAN_MDIP1
D3V3
DVDD33
VDD33/18
DVDD33
LAN_MDIN0
REGOUT
LAN_MDIP0
LAN_MDIN1
D3V3
ENSWREG
VDD10
VDD10
VDD 33/18 LED1/EESK SD_WP/MS_D1
SD_D0
MS_I NS#
SD_D3/MS_D2
SD_D1/MS_CLK
SD_CD#
SD_D2
LAN (RTL8411)
MS_BS
SD_CLK/MS_D3
Pin#53Pin#33
Close to PIN13
RT L8411 ESD re que s t
C354
0.1u_10V_X7R_04
PIN46 PIN47
REGOUT
Clos e to chip
MS _BS
C393
0.1u_10V_X7R_04
PIN52PIN8 PIN41
SD_D1/MS_CLK
4 IN 1 SOCKET SD/MMC/MS/MS Pro
CO-LAY
SD_CMD_R
SD_CLK/MS_D3
SD_D1/MS_CLK
PIN61
MS _I NS#
SD_CLK/MS_D3
VCC_CARD
SD_WP/MS_D1
SD_D3/MS_D2
VCC_CARD
SD_CD#
SD_WP/MS_D1
MS _D0
SD_D0
SD_D3/MS_D2
SD_D2
J_CARD-REV1
MXP019-A0-603X
DAT2_SD
1
VSS_MS
16
CD/DAT3_SD
3
CMD_SD
6
VSS_SD
9
VDD_SD
11
CLK_SD
14
VSS_SD
17
DAT0_SD
18
DAT1_SD
19
WP_SD
22
VSS_MS
2
VCC_MS
4
SCLK_MS
5
DAT3_MS
7
INS_MS
8
DAT2_MS
10
SDIO/DAT0_MS
12
DAT1_MS
13
BS_MS
15
CD_SD
20
GND
23
GND
24
GND
21
Close to chip
Close to chip
MS_D0
C416
0.1u_10V_X7R_04
C389
0.1u_10V_X7R_04
C654
0.1u_10V_X7R_04
C660
0.1u_10V_X7R_04
C396
*0.1u_10V_X7R_04
C351
0.1u_10V_X7R_04
C421
0.1u_10V_X7R_04
C352
0.1u_10V_X7R_04
C398
0.1u_10V_X7R_04
C392
1u_6.3V_X5R_04
C370
0.1u_10V_X7R_04
C349
0.1u_10V_X7R_04
C353
0.1u_10V_X7R_04
L39 *15mil_short_06
C414
*4.7u_6.3V_X5R_08
R258
*10K_04
C409 0.1u_10V_X7R_04
C420
*4.7u_6.3V_X5R_06
C371
22p_50V_NPO_04
C417
0.1u_10V_X7R_04
.
L38
*SWF2520CF-4R7M-M
R218
*150_06
R267 1K_04
R528 10K_04
C381
0.1u_10V_X7R_04
C343
*10u_6.3V_X5R_06
R239 *15mil_short_06
R262 *0_04
R235
2.49K_1%_04
C403 0.1u_10V_X7R_04
R260
10K_04
D11 RB751S-40C2
AC
R237 1M_04
C363
0.1u_10V_X7R_04
C658
4.7u_6.3V_X5R_06
C377
22p_50V_NPO_04
6-21-G4010-124
C653
*4. 7u_6.3V_X5R_06
R213
*150_06
C357
0.1u_10V_X7R_04
X2 FSX5L_25MHZ
12
U14
RTL8411-CG
AVDD33
58
MS_D0/xD_D1
56
MS_D4/xD_D0
55
LED0/SPICSB
51
GPO
50
XD_CD#
57
SD_CD#/MS_D5/xD_ALE
54
LED1/SPISCK
49
DVDD10
52
SD_CMD/MS_D6/xD_D3
21
SD_D3/MS_D2/xD_D2
22
SD_D 2/xD_D7
23
GND
24
HSIP
25
HSIN
26
REFC LK_P
27
REFCLK_N
28
EVDD10
29
HSOP
30
HSON
31
REGOUT
48
VDDREG
47
VDDREG
46
ENSWREG_H
45
SDA/SPIDI
44
LED3/SPIDO
43
SCL/LED_CR
42
DVDD10
41
LANWAKEB
40
ISOLATEB
38
PERSTB
37
CLKREQB
36
SD_WP/MS_D1/xD_WP#
35
MS_ BS /x D_ CLE
34
AVDD33
63
RSET
62
AVDD10
61
CKXTAL2
60
CKXTAL1
59
VDD33/18
33
GND
65
AVDD33
64
MD IP 0
1
MD IN 0
2
AVDD10
3
MD IP 1
4
MD IN 1
5
MD IP 2
6
MD IN 2
7
AVDD 10
8
MD IP 3
9
MD IN 3
10
AVDD33
11
DVDD33
12
Card_3V3
13
SD_D 7/xD_RDY
14
SD_D 6/MS_INS#/x D_RE#
15
SD_D 5/xD_CE#
16
SD_D 4/xD_WE#
17
SD_D1/MS_CLK/xD_D6
18
SD_D0/MS_D7/xD_D5
19
SD_CLK/MS_D3/xD_D4
20
GND
32
DVDD33
39
VDD33/18
53
GND
66
GND
67
GND
68
GND
69
GND
70
GND
71
GND
72
GND
73
C411
*0.1u_10V_X7R_04
R524 *1K_04
R259
15K_1%_04
R263 *15mil_short_06
C655
*10p_50V_NPO_04
R529 1.5K_04
C404
*4.7u_6.3V_X5R_08
EVDD10EVDD10
VDD33/18
DVDD33
VDD 10
VCC_CARD VCC_CARD
VCC_CARD
DVDD33
EVDD10
VDD33/18
DVDD33
DVDD33
D3V3
REGOUT
DVDD33
DVDD33
DVDD33
3.3VS
DVDD33
VDD10
D3V3
DVDD33
VDD10
VDD10
VDD10
EVDD10
VDD 33/18
VDD10
VDD 10
VDD 10
VDD33/18
VCC _CARD
VDD 33/18VDD33/18
DVDD33
VDD 3
VCC_CARD
D3V3
VDD10 VDD10
DVDD33
VDD10VDD10
3.3VS3,6,9, 10,11, 12,19, 20,21,22,23,24,26,27,28,29,30,31,33,34, 35,36,37,41
LAN_MDI P134
LAN_MDI N034
LAN_MDI P034
BUF _PLT_RST# 23,29,33,36
PCIE_RXP4_GLAN 25
PCIE_RXN4_GLAN 25
LAN_MDI N134
CLK_PCIE_GLAN 28
PCIE_TXN4_GLAN 25
PCIE_TXP4_GLAN 25
LAN_CLKREQ# 28
LAN_MDI P234
PME# 23,36
PCIE_WAKE# 22,29
CLK_PCIE_GLAN# 28
LAN_MDI N334
LAN_MDI P334
LAN_MDI N234
VDD317,20,21,22,24,27,28, 29,30,33,36,37,38,39,40,43
EECS
LED2/EEDI
SD_CMD_R
C382
*5p_50V_NPO_04
C657
0.1u_10V_X7R_04
C661
0.1u_10V_X7R_04

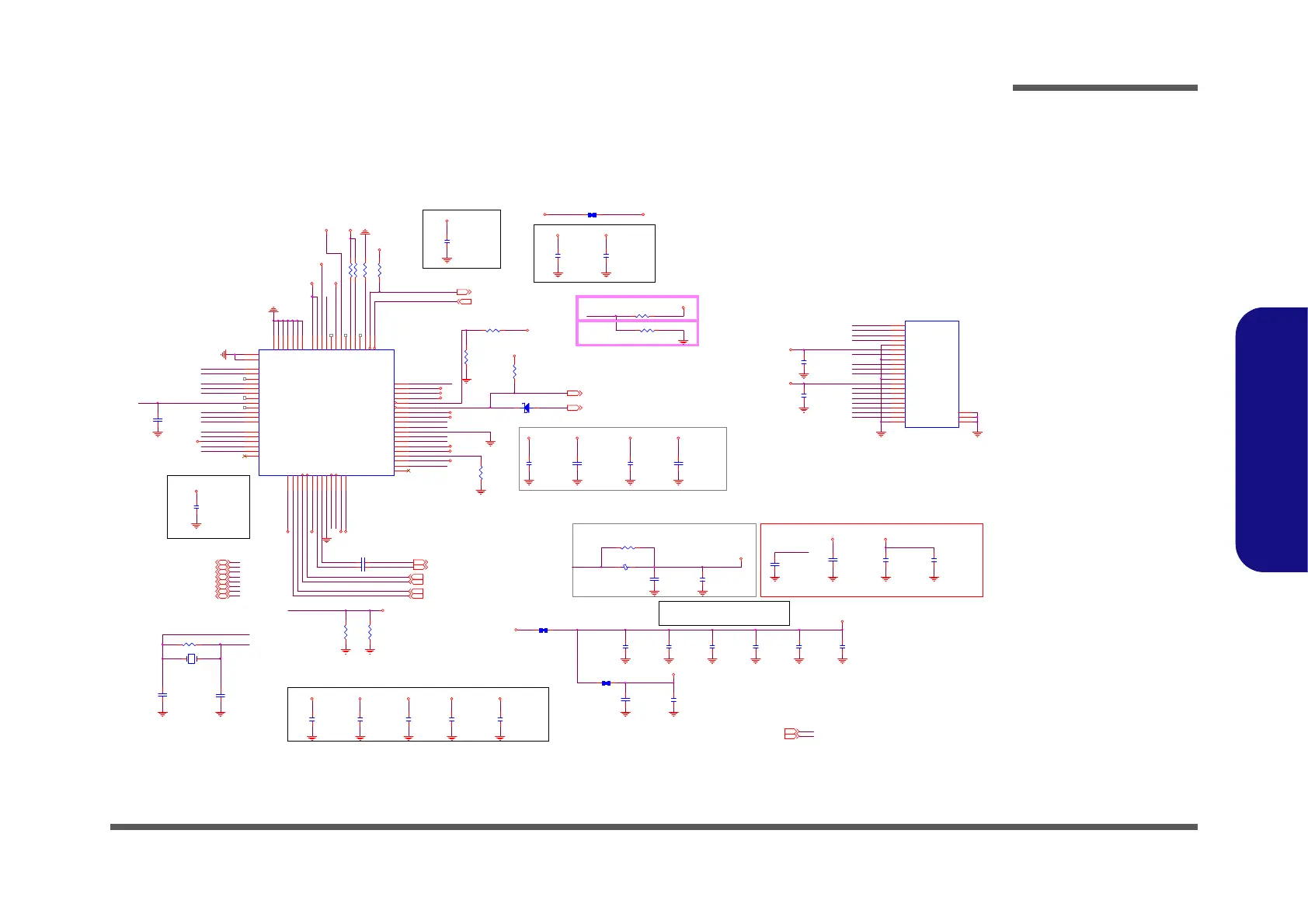

Schematic Diagrams
Card Reader (RTL8411) B - 33
B.Schematic Diagrams
Card Reader (RTL8411)
Sheet 32 of 46
Card Reader
(RTL8411)
