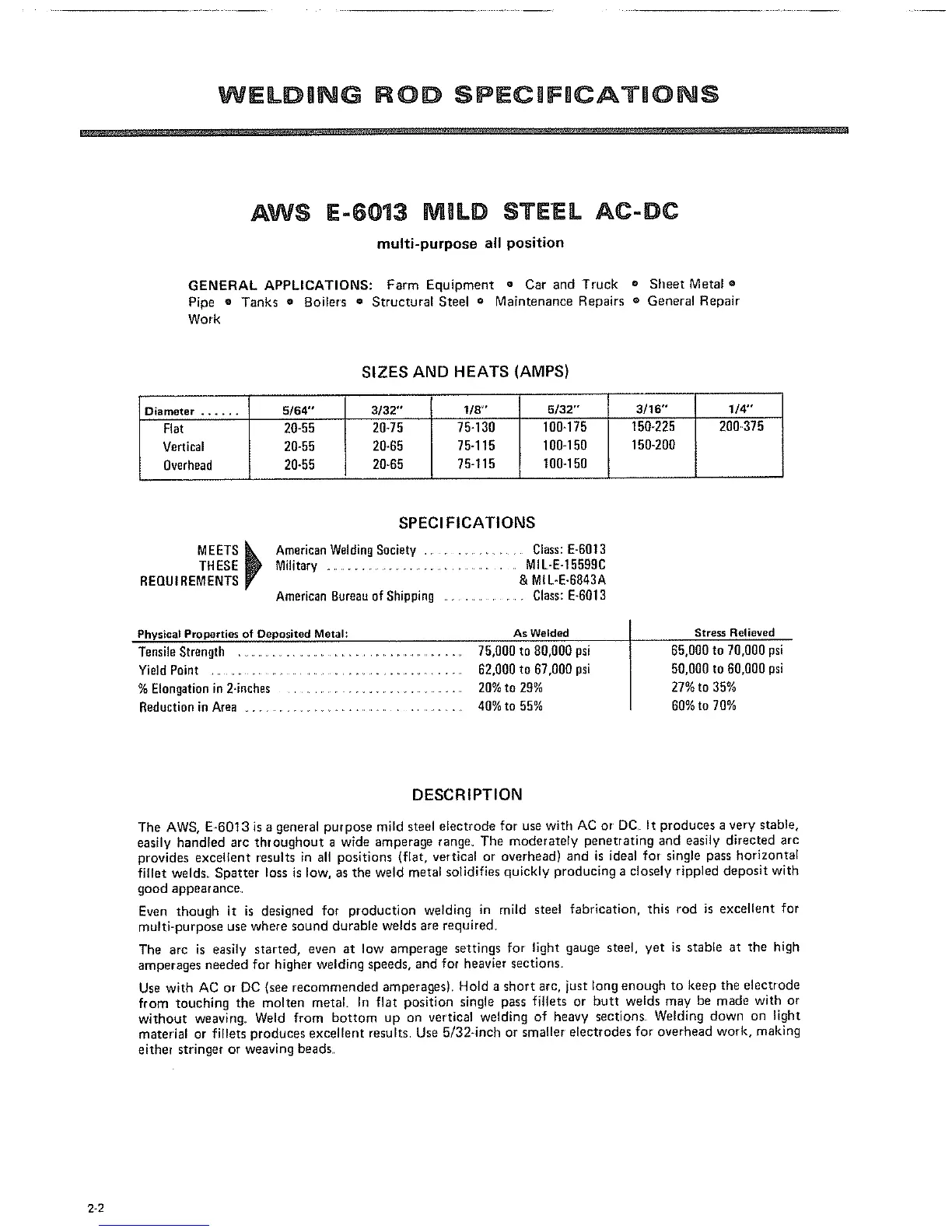

AWS E-6013 MBLD STEEL AC-DC
multi-purpose all position
GENERAL APPLICATIONS: Farm Equipment o Car and Truck o Sheet Metal o
Pipe o Tanks e Boilers = Structural Steel o Maintenance Repairs o General Repair
Work
SIZES AND HEATS (AMPS)
Diameter ......
Fiat
Vertical
Overhead
5/64'"
20-55
20-55
20-55
3/32" 118" 5/32" 3/16"
20-75 75-130 100-175 150-225
20-65 75-115 100.150 150-200
20_65 75-115 100-150
1/4"
200"375
MEETS
THESE
REQUIREMENTS
SPECl FICATIONS
_) mericanWeldingSociety .................... Class:E-6013
Military ................................................ MIL-E-15509C
& MI L-E-S043A
American Bureauof Shipping ................... Class:E-0013
Physical Properties of Deposited Metal: As Welded
TensileStrength ...................................................... 75,000 to 00,000 psi
Yield Point ................................................ 62,000 to 07,000 psi
% Elongation in 2-inches ...................................... 20%to 29%
Redaction in Area ................................................. 40%to 55%
Stress Relieved
05,000 to 70,000 psi
50,000 to 00,00g psi
27% to 35%
00%to 70%
DESCRIPTION
The AWS, E-6013 is a general purpose mild steel electrode for use with AC or DC It produces a very stable,
easily handled arc throughout a wide amperage range_ The moderately penetrating and easily directed arc
provides excellent results in all positions (fiat, vertical or overhead) and is ideal for single pass horizontal
fillet welds_ Spatter loss is low, as the weld metal solidifies quickly producing a closely rippled deposit with
good appearance.
Even though it is designed for production welding in mild steel fabrication, this rod is excellent for
multi-purpose use where sound durable welds are required,
The arc is easily started, even at low amperage settings for light gauge steel, yet is stable at the high
amperages needed for higher welding speeds, and for heavier sections.
Use with AC or DC (see recommended amperages) Hold a short arc, just long enough to keep the electrode
from touching the molten metal. In flat position single pass fillets or butt welds may be made with or
without weaving. Weld from bottom up on vertical welding of heavy sections Welding down on light
material or fillets produces excellent results Use 5/32-inch or smaller electrodes for overhead work, making
either stringer or weaving beads.
2-2
